07- Steering _24S1413

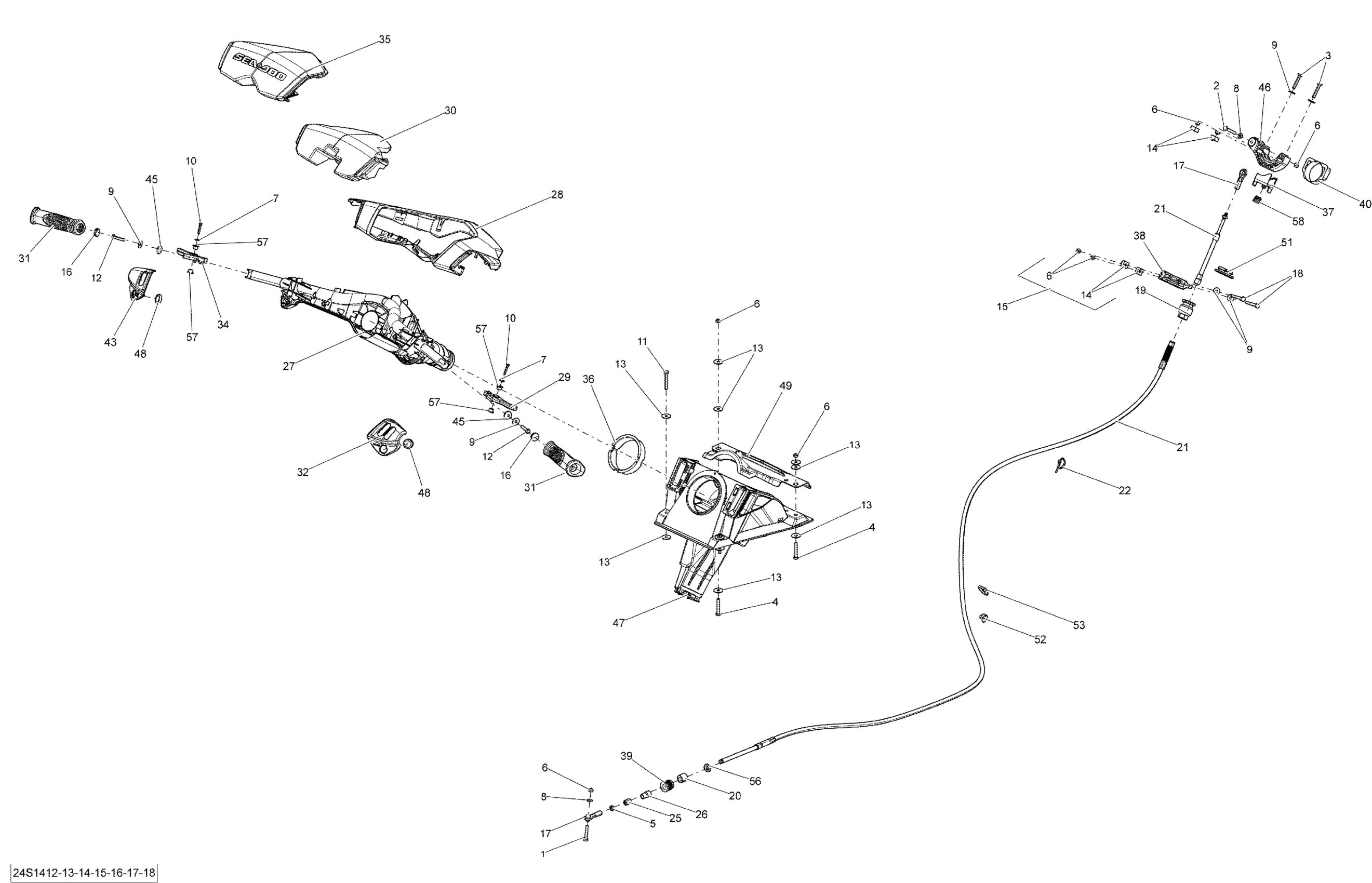

Sea-doo GTI SE 130, 2014 07- Steering _24S1413 Diagram
#
1
Hex. Screw M6 X 35
207063560
$2.22
2
Hex. Screw M6 X 40
207064060
$1.69
3
Hex. Screw M6 X 35
207163560
$1.49
4
Hex Cap Screw M6X1.0X45 S.Grip
245064560
$1.90
5
Hex. Nut 1/4"-28
211100056
$0.69
6
Elastic Stop Nut M6, Brass
232561200
$4.23
7
Flat Washer 4 mm, Stainless
234042600
$1.15
8
Stainless Flat Washer M6
234061600
$0.33
9
Flat Washer M6, Stainless
234062600
$0.77
10
Hex. Flange Screw K40 X 25
241142560
$2.64
11
Hex Cap Screw M6X1.0X45 S.Grip
245064560
$1.90
12
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
13
Flat Washer M6.6 X 22
250200022
$2.72
14
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
15
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
16
Black, Cap
277000203
$9.39
17
Ball Joint
277000775
$51.99
18
Hex. Screw M6 X 50
207165060
$0.92
19
Ajustment Knob
277000782
$22.99
20
Half Ring
277001527
$10.37
21
Steering Cable Ass'y | Includes 540 TO 540d
277001578
$211.99
22
Tie-Rap 180 mm
414115200
$0.11
25
Wiper Rod
277001582
$11.11
26
End Piece
277001583
$14.49
27
Steering Column
277001963
$381.49
28
Steering Cover | IBR
277001969
$68.99
29
Throttle Handle
277001944
$38.99
30
TOP FOAM - Call your local BRP dealership
277001621
Unavailable
31
Handlebar Grip
277002286
$19.99
32
Housing Cover RH
277001755
$22.49
34
Reverse Handle
277001945
$43.99
35
Silver Steering Pad | Model GTS
277001622
$45.99
36
Wear Ring
277001653
$12.17
37
Spacer
277001654
$15.99
38
Thrust Support Ass'y
277001655
$28.99
39
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
40
Wear Ring
277002318
$15.99
43
Housing Cover LH
277001860
$22.49
45
Insert Grip Handle
277001863
$8.83
46
Steering Arm Support Ass'y | Includes 460 TO 460c
277001872
$42.99
47
Support Ass'y | Includes 710 TO 710e
277001971
$114.99
48
Red, Knob Switch
277001887
$9.69
49
Deflector
293000116
$28.99
51
Cable Grommet
293720090
$8.49
52
Mount Dart
293730040
$1.04
53
Tie Wrap 368 mm
293750008
$1.04
56
Rubber Washer
293830063
$1.90
57
Bushing
293900091
$4.52
58
Cap
517302716
$4.69
