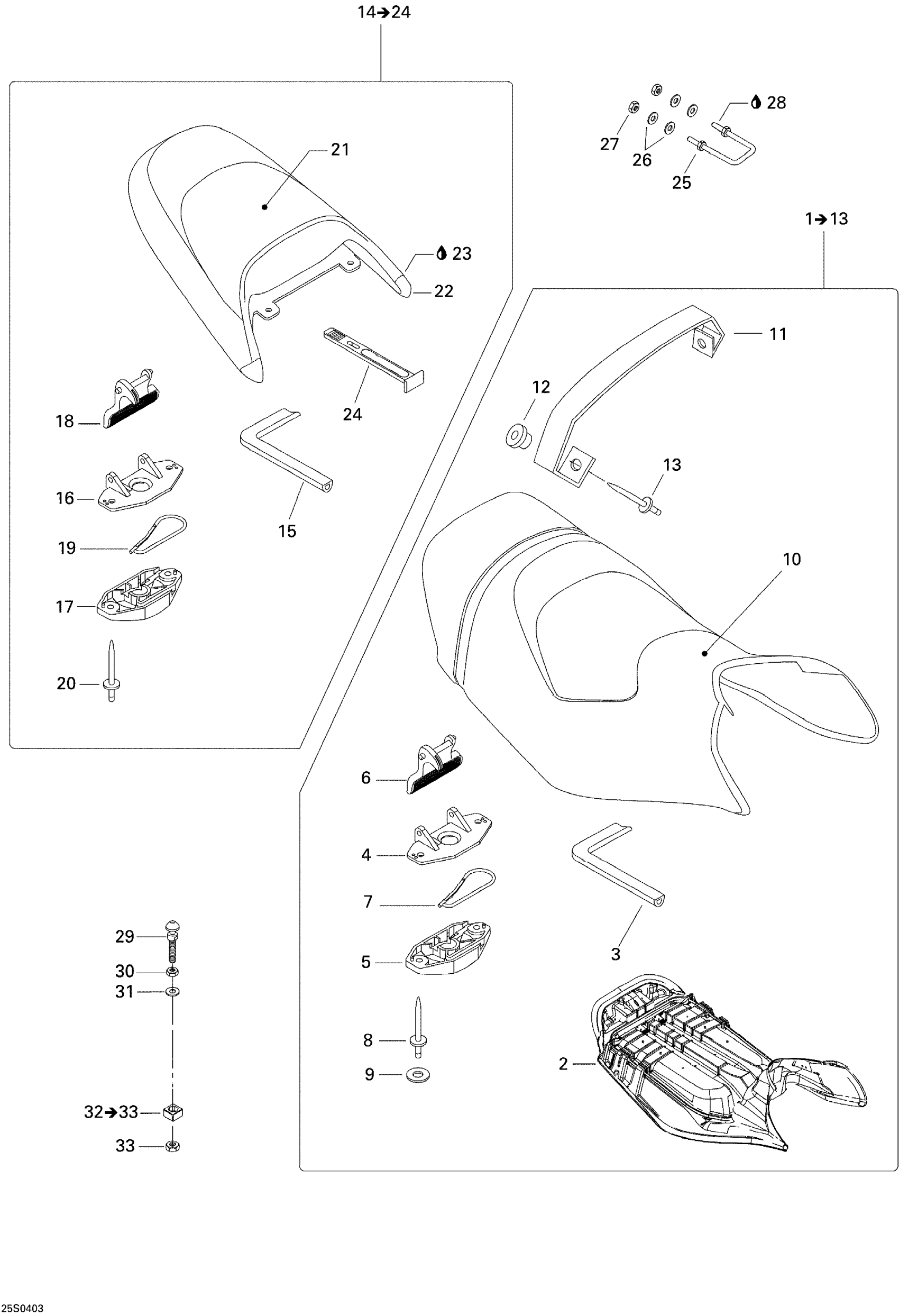

Sea-doo GTI LE RFI, 2004 09- Seat Diagram

#

Description
Price

1

Seat Ass'y, Blue Jay | Includes 1 to 13

269001042

Unavailable

1

Seat Ass'y, Sonoran Sand | LE

269001105

Unavailable

2

Seat Base

269000829

Unavailable

3

Was 293200062 Seal

219704366

$76.49

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Ass'y

269700109

$24.99

7

Latch Spring

269700017

$9.19

8

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

9

Stainless Flat Washer M6

234061600

$0.33

10

Cover & Foam | STD

269001044

Unavailable

10

Cover & Foam, Sonoran Sand | LE

269001106

Unavailable

11

Seat Strap, Blue Jay | STD

269001045

Unavailable

11

Seat Strap, Sonoran Sand | LE

269001107

Unavailable

12

Grommet

293720067

$12.99

13

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable

14

Rear Seat Ass'y, Blue Jay | Includes 14 to 24

269001046

Unavailable

14

Rear Seat Ass'y, Sonoran Sand | LE

269001108

Unavailable

15

Was 293200062 Seal

219704366

$76.49

16

Latch Ass'y

269700109

$24.99

17

Latch Ass'y

269700109

$24.99

18

Latch Ass'y

269700109

$24.99

19

Latch Spring

269700017

$9.19

20

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

21

Rear Cover & Foam | STD

269001047

Unavailable

21

Rear Cover & Foam, Sonoran Sand | LE

269001109

Unavailable

22

RH Seat Corner, Blue Jay | STD

269001048

Unavailable

22

LH Rear Seat Corner, Blue Jay | STD

269001049

Unavailable

22

RH Seat Corner | LE

269000837

Unavailable

22

LH Seat Corner | LE

269000838

Unavailable

23

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

24

Strap

269502417

$17.69

25

Seat Bow-Eye

291001527

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

Not Available As Spare Part - Friction Washer

Unavailable

29

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

30

Hex. Jam Nut M10

232100600

$2.22

31

Flat Washer 10 mm, Stainless

234002600

$2.22

32

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

33

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable
