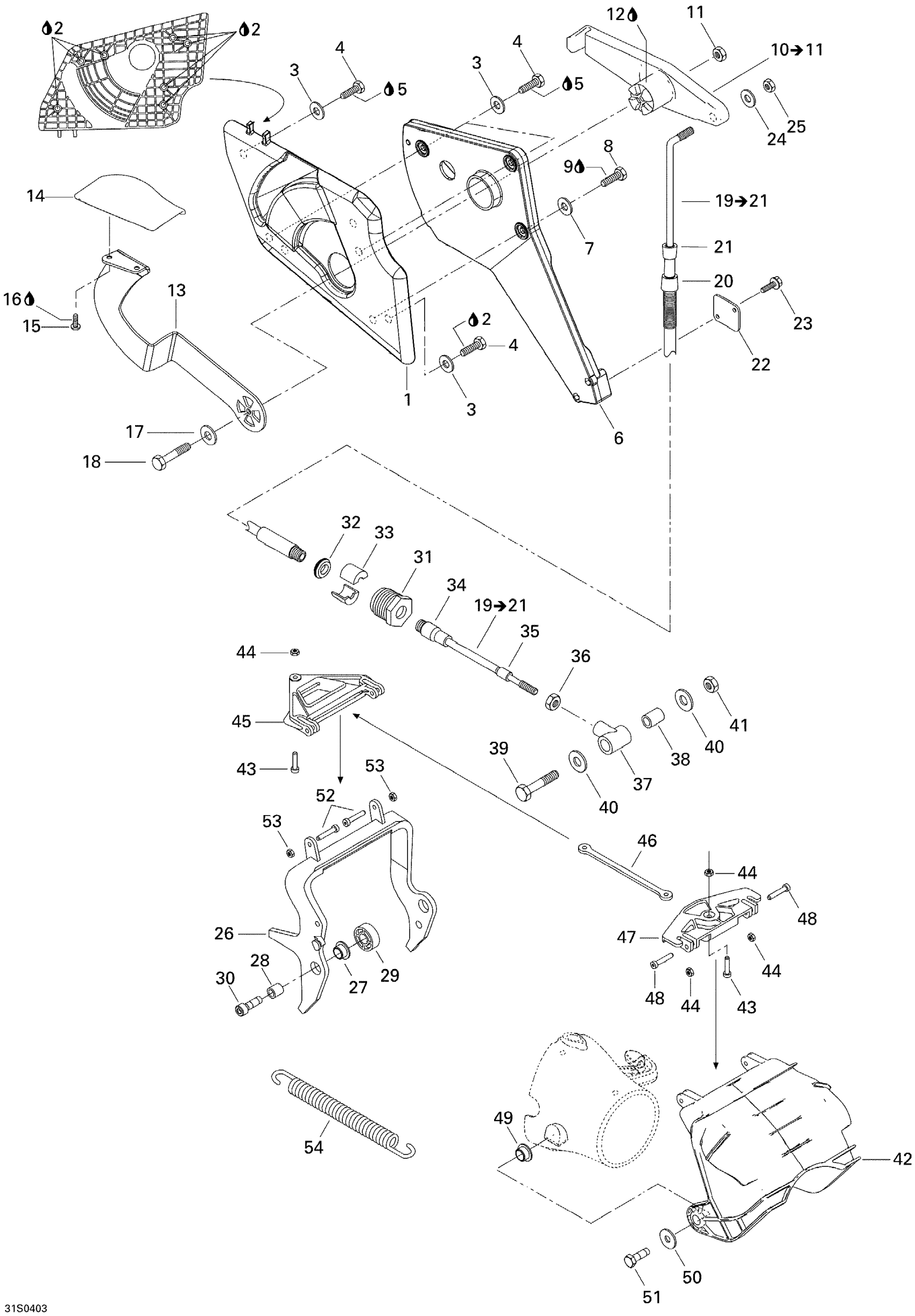

Sea-doo GTI LE RFI, 2004 Reverse Diagram

#

Description
Price

1

Handle Housing

271000984

Unavailable

2

Silicone Sealant 51388, 300 ml

296000309

$36.99

3

Flat Washer M6, Stainless

234062600

$0.77

4

Hex. Cap Screw M6 X 12

207161260

$1.26

5

Loctite 243, 10 ml

293800060

$21.49

6

REVERSE CABLE SUPPORT - Call your local BRP dealership

268000010

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.77

8

Hex. Screw M6 X 16

207161660

$1.59

9

Loctite 243, 10 ml

293800060

$21.49

10

Lever Ass.

271000986

$42.99

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Synthetic Grease, 400 G

293550010

Unavailable

13

HANDLE LEVER - Call your local BRP dealership | RXP

271000982

Unavailable

14

REVERSE HANDLE - Call your local BRP dealership

271000983

Unavailable

15

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Stainless Flat Washer M6

234061600

$0.33

18

Hex. Screw M6 X 16

207161660

$1.59

19

Reverse Cable

268000017

$153.49

20

Boot, Large

277000473

Unavailable

21

Boot, Small

277000466

Unavailable

22

BRACKET - Call your local BRP dealership

277001058

Unavailable

23

Hex. Flange Screw M5 X 30

207153060

$1.99

24

Flat Washer M5, Stainless

234051600

$0.77

25

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

26

ARM BLACK - Call your local BRP dealership

271001012

Unavailable

27

Venturi Bushing

271000321

$8.69

28

Spacer

271001039

$16.49

29

BUSHING - Call your local BRP dealership | GTS PRO

293900038

Unavailable

30

PIVOT SCREW M8 X 25 - Call your local BRP dealership

250000026

Unavailable

31

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

32

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

33

Half Ring

277000055

$9.49

34

Boot, Large

277000473

Unavailable

35

Boot, Small

277000466

Unavailable

36

Hex. Nut

212100005

$1.35

37

Joint

277001204

$18.49

38

Spacer

271001020

$12.99

39

Hex. Screw M6 X 35

207063560

$2.22

40

Flat Washer M6, Stainless

234062600

$0.77

41

Hex. Elastic Stop Nut M6

232561600

$1.15

42

Gate Reverse

271001317

Unavailable

43

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

44

Hex. Elastic Nut M5 | X

232551600

$1.15

45

TRIANGLE - Call your local BRP dealership

268000013

Unavailable

46

CONNECTOR ROD - Call your local BRP dealership

271001018

Unavailable

47

ROD PIVOT - Call your local BRP dealership

268000014

Unavailable

48

SCREW PIVOT - Call your local BRP dealership

250000023

Unavailable

49

Spacer

277001066

Unavailable

50

Flat Washer 8 mm, Stainless

234082600

$2.43

51

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

52

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

53

Hex. Elastic Nut M5 | X

232551600

$1.15

54

Spring

271001328

$17.49
