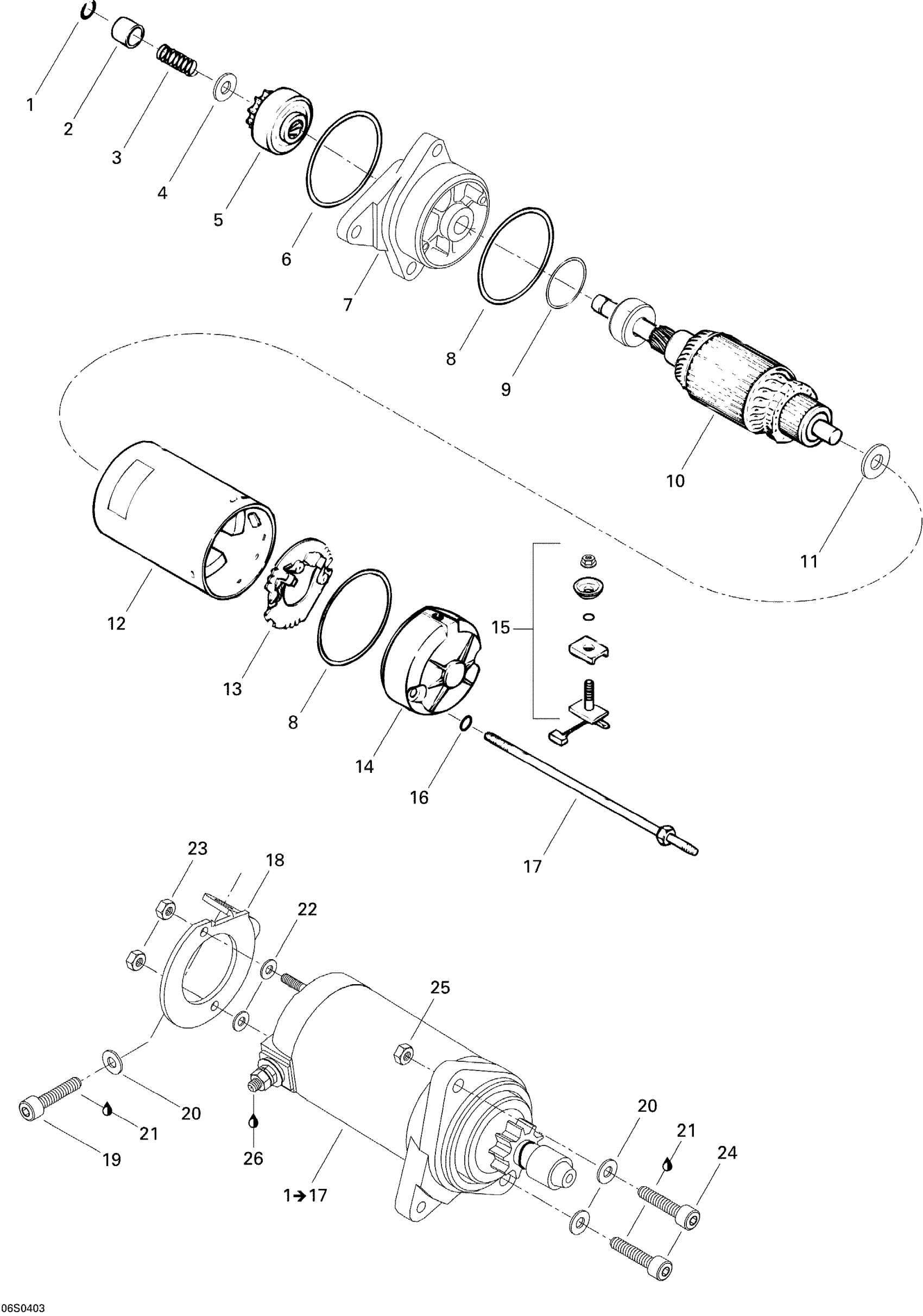

Sea-doo GTI LE RFI, 2004 Electric Starter Diagram

#

Description
Price

1

STARTER ASS'Y - Call your local BRP dealership | Includes 1 to 18

278001936

$234.49

1

SNAP RING - Call your local BRP dealership

410207700

Unavailable

2

Stopper Bushing

278000254

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

WASHER PLATE - Call your local BRP dealership

278001105

Unavailable

5

STARTER CLUTCH ASS'Y - Call your local BRP dealership

278001106

Unavailable

6

O-RING - Call your local BRP dealership

278000694

Unavailable

7

Housing Ass'y

278001520

Unavailable

8

O-Ring

278000695

$14.24

9

O-Ring Kit This part replaces 278000696.

415129342

$14.24

10

Armature

278001108

Unavailable

11

THRUST WASHER - Call your local BRP dealership

278000056

Unavailable

12

YOKE ASS'Y - Call your local BRP dealership

278001109

Unavailable

13

Brush Holder

278001296

$40.99

14

Rear Cover

278001111

Unavailable

15

BRUSH STARTER KIT - Call your local BRP dealership

278001298

Unavailable

16

O-RING - Call your local BRP dealership

278000060

Unavailable

17

RETAINER STUD - Call your local BRP dealership

278000170

Unavailable

18

STARTER SUPPORT - Call your local BRP dealership

270000467

Unavailable

19

Socket Head Screw M8 X 16

205081660

Unavailable

20

Stainless, Flat Washer 8 mm

234081600

$0.55

21

Loctite 262, 50 ml

413705200

Unavailable

22

Flat Washer M5, Stainless

234051600

$0.77

23

Hex. Elastic Nut M5 | X

232551600

$1.15

24

Socket Head Screw M8 X 45

205084560

$3.59

25

Hex. Elastic Nut M8

232581600

$1.48

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
