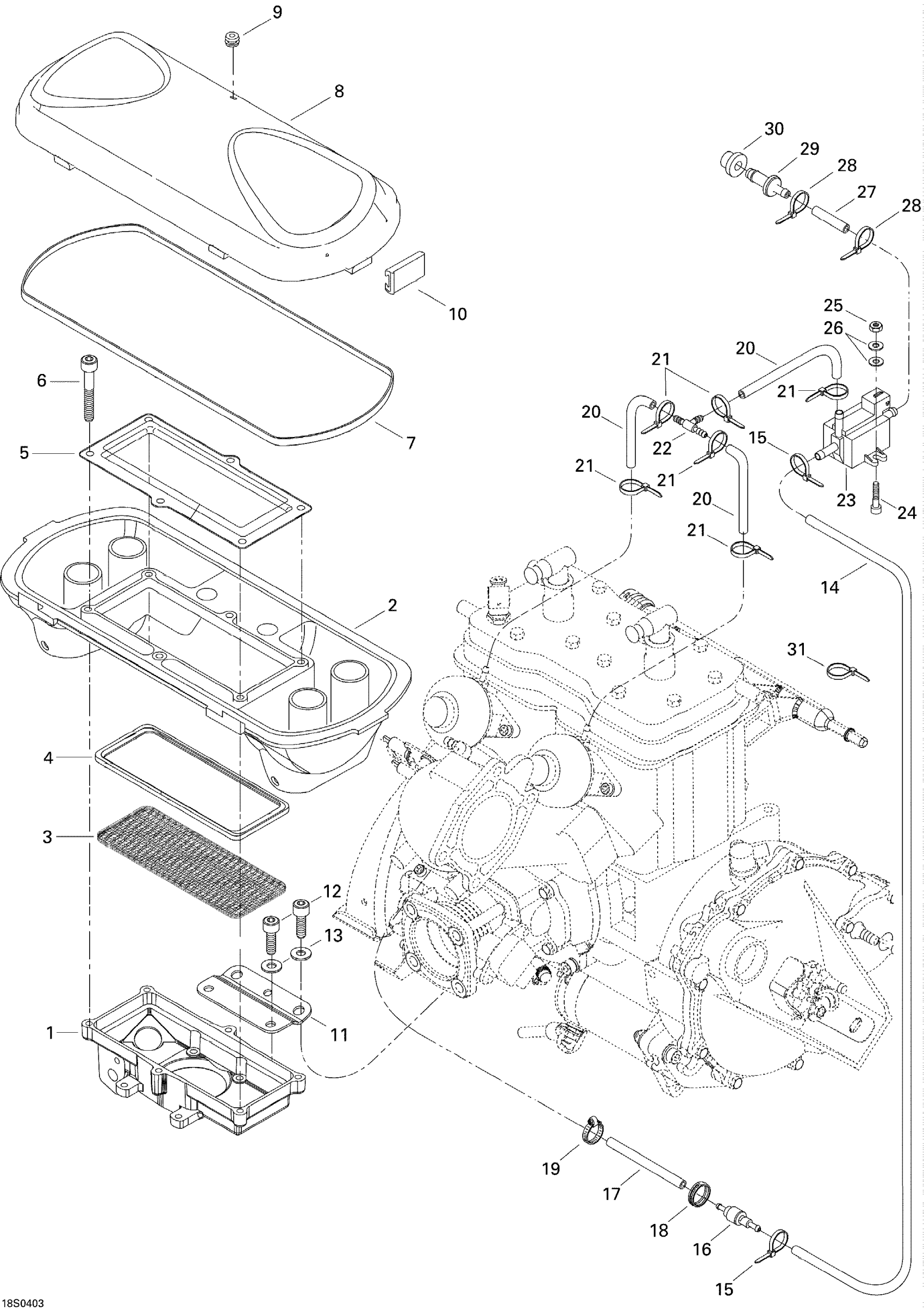

Sea-doo GTI LE RFI, 2004 Air Intake Diagram

#

Description
Price

1

Arrest Housing, Black

273000226

Unavailable

2

AIR SILENCER BASE - Call your local BRP dealership

273000103

Unavailable

3

Flame Arrester

273000118

Unavailable

4

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

5

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

6

Socket Head Screw M6 X 25, Scotch Grip

205562560

Unavailable

7

GASKET - Call your local BRP dealership

293250023

Unavailable

8

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

9

Rubber Bumper

293830005

Unavailable

10

Retainer Clip

273000006

Unavailable

11

SUPPORT - Call your local BRP dealership

270000565

Unavailable

12

Socket Head Screw M6 X 12, Scotch Grip

205561260

Unavailable

13

Stainless Flat Washer M6

234061600

Unavailable

14

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

15

Tie Wrap 94 mm | 4X4

293750001

Unavailable

16

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

17

Was 275500549 Hose 1/4"

219704357

Unavailable

18

Oetiker Gear Clamp

293650025

Unavailable

19

Tridon Gear Clamp

293650170

Unavailable

20

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

Unavailable

22

T-Fitting

293710068

Unavailable

23

Solenoid Valve

270600005

Unavailable

24

Socket Head Screw M5 X 20

205052060

Unavailable

25

Hex. Elastic Nut M5 | X

232551600

Unavailable

26

Flat Washer | XT

211200035

Unavailable

27

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

28

Tie Wrap 94 mm | 4X4

293750001

Unavailable

29

Fitting

293700031

Unavailable

30

Grommet

293720029

Unavailable

31

Tie Wrap 142 mm

293750002

Unavailable

31

Tie Wrap 368 mm

293750008

Unavailable
