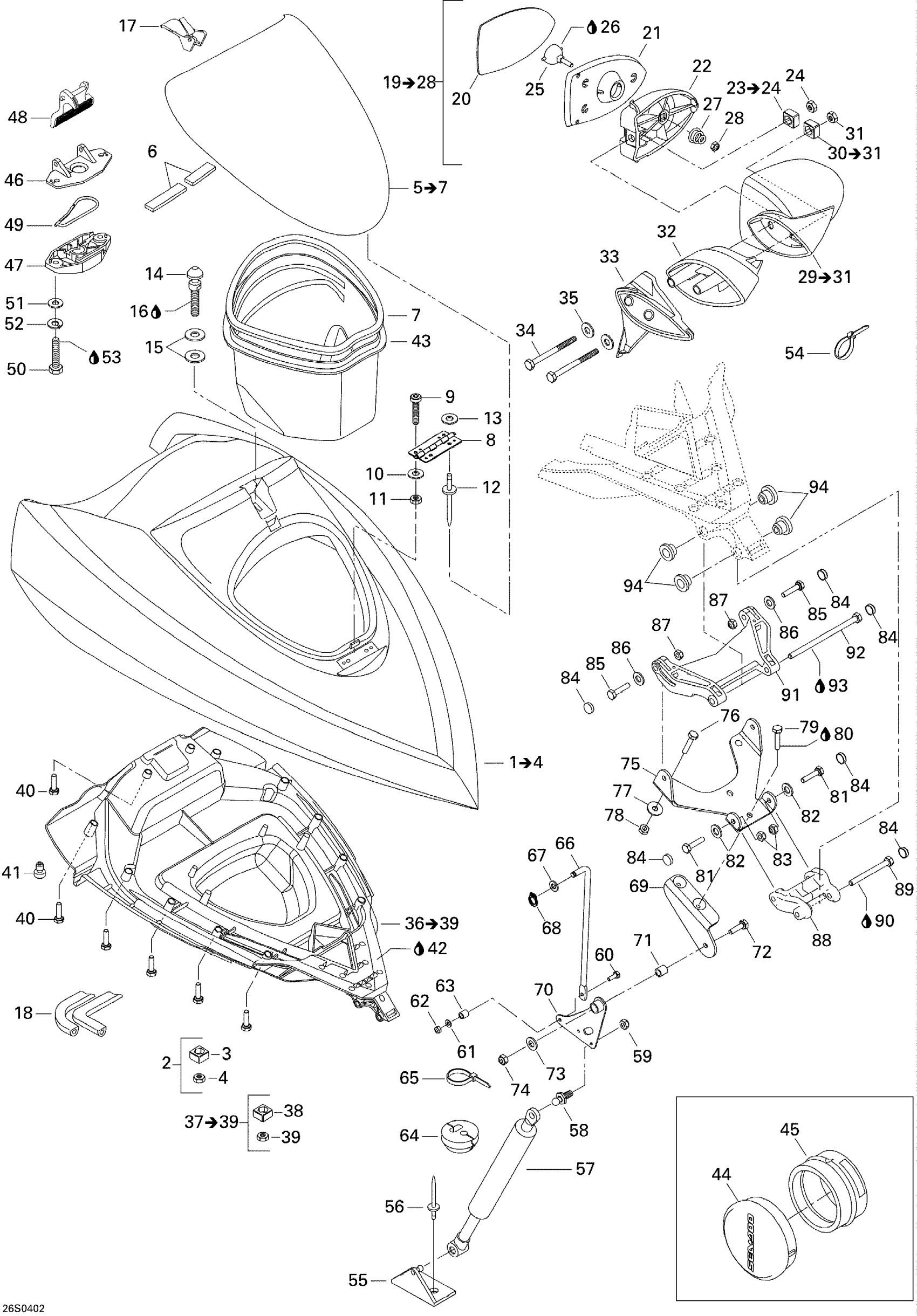

Sea-doo GTI LE, 2004 Front Storage Compartement Diagram

#

Description
Price

1

Cover | Includes Items 1 to 4 / LE

269501180

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

3

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

4

Hex. Nut M6

232061600

$0.91

1

Storage Cover | Includes Items 1 to 4

269501261

Unavailable

5

Access Cover | Includes Items 5 to 7 / LE

269501185

Unavailable

6

Neoprene Seal (1PAC=3M)

219704364

$22.72

7

Was 293200017 Neoprene Seal

219704365

$118.27

5

Access Cover | Includes Items 5 to 7

269501263

Unavailable

8

HINGE - Call your local BRP dealership

269500338

Unavailable

9

Socket Head Screw M5 X 16

205451660

$1.04

10

Flat Washer 5 mm, Stainless

234052600

$0.64

11

Hex. Elastic Nut M5 | X

232551600

$0.91

12

Pop Rivet 3/16"

204000081

$1.31

13

Flat Washer 5 mm, Stainless

234052600

$0.64

14

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

15

Flat Washer M6, Stainless

234062600

$0.64

16

Loctite 243, 10 ml

293800060

$20.77

17

Latch

269501487

$12.97

18

Was 293200017 Neoprene Seal

219704365

$118.27

19

RH Mirror Ass’Y | Includes Items 19 to 28 / LE

269500685

Unavailable

20

RH Mirror

269500687

Unavailable

21

Frame Mirror

269500697

Unavailable

22

Housing Support | WAKE

269500807

Unavailable

23

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

24

Hex. Elastic Nut M8

232581600

$1.25

25

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

26

Synthetic Grease, 400 G

293550010

Unavailable

27

Mirror Spring

269500453

$7.97

28

Hex. Elastic Stop Nut M6

232561600

$0.92

29

Mirror Shell | Includes Items 29 to 31 / LE

269501182

Unavailable

30

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

31

Hex. Elastic Nut M8

232581600

$1.25

32

RH Mirror Support | LE

269501183

Unavailable

33

RH Spacer | LE

269500792

Unavailable

19

LH Mirror Ass'y | Includes Items 19 to 28 / LE

269500688

Unavailable

20

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

32

LH Mirror Support | LE

269501184

Unavailable

33

LH Spacer | LE

269500793

Unavailable

34

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

35

Flat Washer 8 mm, Stainless

234082600

$1.98

36

Lower Storage Cover | Includes Items 36 to 39

269500000

Unavailable

37

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

38

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

39

Hex. Nut M6

232061600

$0.91

40

Hex. Flange Screw K40 X 13

241141360

$0.56

41

Rubber Bumper

293830005

$5.33

42

Glue Tube, Loctite 454, 20 G

413708300

$58.18

43

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

44

Gauge Cap | STD

293000068

Unavailable

45

Gauge Support

293720047

Unavailable

46

Latch Ass'y

269700109

$20.12

47

Latch Ass'y

269700109

$20.12

48

Latch Ass'y

269700109

$20.12

49

Latch Spring

269700017

$7.27

50

Hex. Screw M6 X 30

207063060

$1.51

51

Stainless Flat Washer M6

234061600

$0.25

52

Lock Washer Helical M6

234161601

$0.92

53

Loctite 243, 10 ml

293800060

$20.77

54

Tie Wrap 368 mm

293750008

$0.85

55

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

56

Avdel Rivet 3/16"

293150037

$0.47

57

GAS SHOCK - Call your local BRP dealership

269500988

Unavailable

58

Ball Head Stud

250300016

$11.69

59

Hex. Elastic Nut M8

232581600

$1.25

60

Hex. Screw M4 X 16 | Europe

207141660

$1.22

61

Flat Washer 4 mm, Stainless

234041600

$0.91

62

Elastic Stop Nut M4

232541600

$0.92

63

Spacer

269500841

Unavailable

64

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

65

Tie-Rap 180 mm

414115200

$0.09

66

ROD - Call your local BRP dealership

269500842

Unavailable

67

Stainless Flat Washer M6

234061600

$0.25

68

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

69

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

70

LEVER - Call your local BRP dealership

269501020

Unavailable

71

SPACER - Call your local BRP dealership

269501022

Unavailable

72

Hex. Screw M6 X 30

207163060

$1.25

73

Flat Washer M6, Stainless

234062600

$0.64

74

Hex. Elastic Stop Nut M6

232561600

$0.92

75

PIVOT SUPPORT - Call your local BRP dealership

269500703

Unavailable

76

Hex. Forming Screw M6 X 20

207162060

$1.03

77

Flat Washer M6, Stainless

234062600

$0.64

78

Hex. Elastic Stop Nut M6

232561600

$0.92

79

Hex. Forming Screw M6 X 20

207162060

$1.03

80

Loctite 243, 10 ml

293800060

$20.77

81

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

82

Stainless Flat Washer M6

234061600

$0.25

83

Hex. Elastic Stop Nut M6

232561600

$0.92

84

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

85

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

86

Stainless Flat Washer M6

234061600

$0.25

87

Hex. Elastic Stop Nut M6

232561600

$0.92

88

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

89

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

90

Loctite 243, 10 ml

293800060

$20.77

91

REAR ARM - Call your local BRP dealership

269500705

Unavailable

92

Hex. Screw M6 X 100

230060060

$6.08

93

Loctite 243, 10 ml

293800060

$20.77

94

Sleeve

269500706

$4.30
