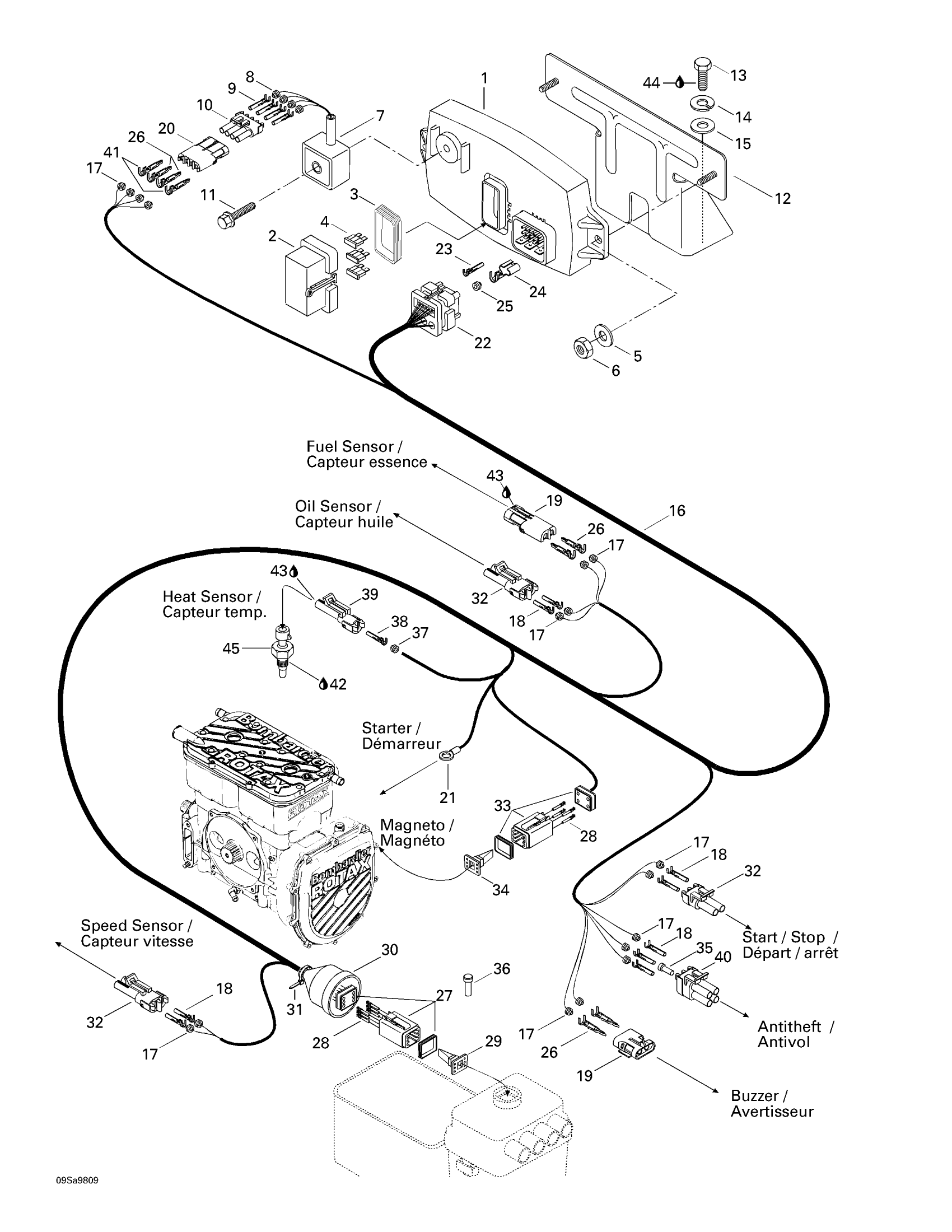

Sea-doo GTI, 5836/5841, 1998 10- Electrical System Diagram

#

Description
Price

1

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 1 - 4.

278000916

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.28

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.28

5

Flat Washer M6, Stainless

234062600

$0.77

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.

278001239

Unavailable

8

Wire Seal

278000218

$4.39

9

Female Terminal

409007300

$0.45

10

Male Housing, 4 Circuits

278000395

$15.99

11

Hex. Tapping Screw

211000139

Unavailable

12

Box Support Ass'y

278001128

Unavailable

13

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

14

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

15

Flat Washer 5 mm, Stainless

234052600

$0.77

16

Main Harness Ass'y | Includes 13 - 39.

278001086

Unavailable

17

Wire Seal

278000218

$4.39

18

Female Terminal

278000223

$3.19

19

Female Housing, 2 Circuits

278000217

$9.59

20

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

21

Open Barrel

278001165

Unavailable

22

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

23

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

24

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

25

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

26

Male Terminal | XT Models

278000222

$3.19

27

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

28

Female Terminal

278000632

$2.09

29

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

30

Switch Boot

570150700

Unavailable

31

Tie Wrap 142 mm

293750002

$1.25

32

Male Connector, 2 Circuits

278000220

$15.49

33

Male Connector, 4 Circuits | CE

278000739

$19.49

34

Male Lock, 4 Circuits | CE

278000738

$3.09

35

Wire Seal

278000216

$3.19

36

Sealing Cap

293000052

$3.19

37

Wire Seal

278001013

$3.28

38

Female Terminal

278001014

$3.28

39

Male Housing, 1 Circuit

278001012

$16.86

40

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

41

Male Terminal

409004300

$5.61

42

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

43

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

44

Loctite 271, 10 ml

293800005

$26.99

45

Temperature Sensor

278000965

$73.99
