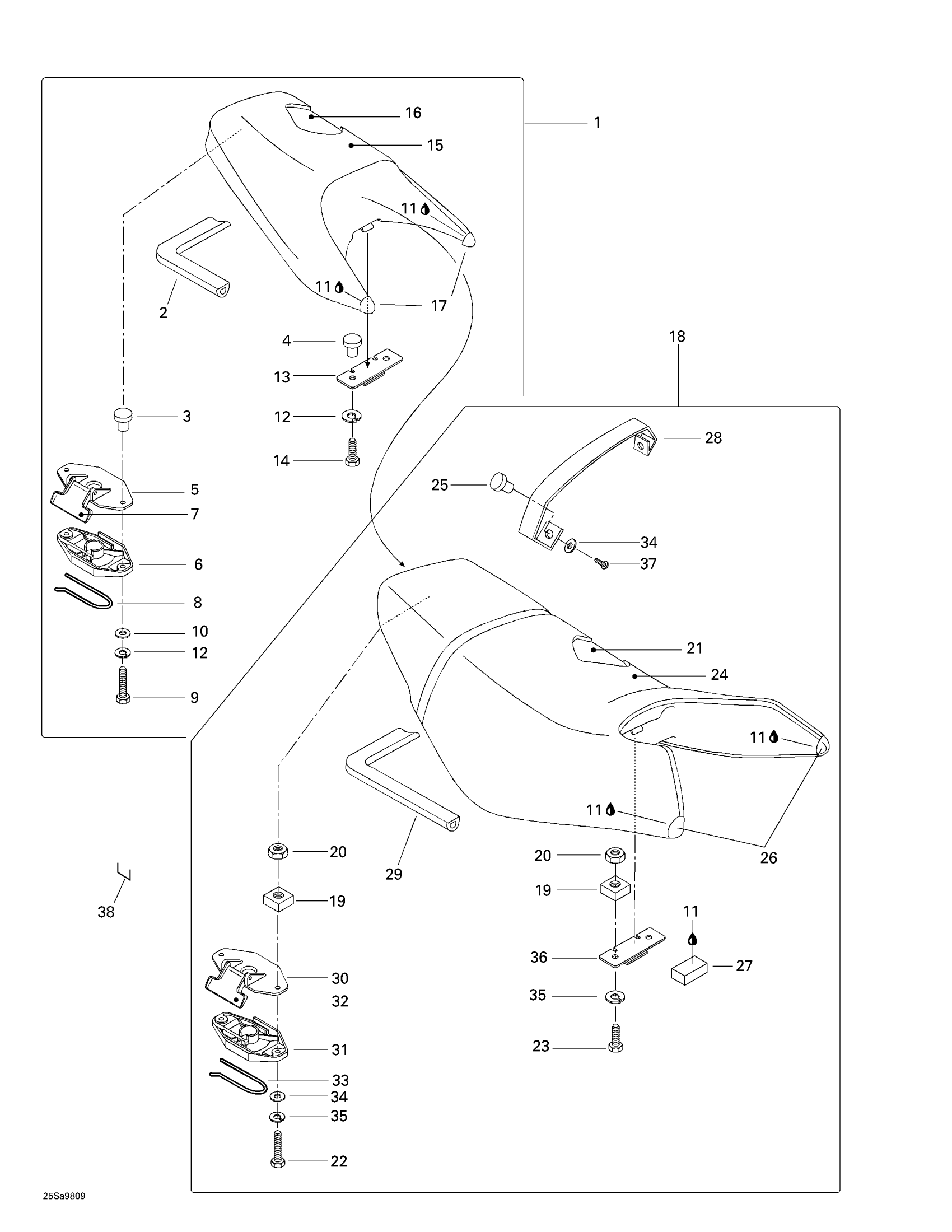

Sea-doo GTI, 5836/5841, 1998 Seats, Rear And Front Diagram

#

Description
Price

1

Rear Seat Ass'y | Includes 1 - 17.

269000497

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$118.27

3

NUT-T-SHAPE - Call your local BRP dealership

211100038

Unavailable

4

Threaded Insert

211100035

Unavailable

5

Latch Ass'y

269700109

$20.12

6

Latch Ass'y

269700109

$20.12

7

Latch Ass'y

269700109

$20.12

8

Latch Spring

269700017

$7.27

9

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.51

10

Stainless Flat Washer M6

234061600

$0.25

11

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

12

Lock Washer Helical M6

234161601

$0.92

13

Keeper Base

291001167

Unavailable

14

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

15

Rear Seat Cover

269000498

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Rear Seat Corner RH

269000499

Unavailable

Rear Seat Corner LH

269000500

Unavailable

18

Front Seat Ass'y | Includes 18 - 37.

269000501

Unavailable

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

20

Hex. Elastic Stop Nut M6

232561600

$0.92

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Hex. Screw M6 x 30

211000140

Unavailable

23

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

24

Front Seat Cover

269000502

Unavailable

25

Nut Welded, M6

293100003

$6.32

26

Seat Corner

269000504

Unavailable

27

Rubber Stopper

269000446

Unavailable

28

Strap

269000503

Unavailable

29

Was 293200017 Neoprene Seal

219704365

$118.27

30

Latch Ass'y

269700109

$20.12

31

Latch Ass'y

269700109

$20.12

32

Latch Ass'y

269700109

$20.12

33

Latch Spring

269700017

$7.27

34

Stainless Flat Washer M6

234061600

$0.25

35

Lock Washer Helical M6

234161601

$0.92

36

Keeper Base

291001167

Unavailable

37

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

38

Staple

293730005

Unavailable
