1978 Yamaha GT80 (GT80E) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1978 Yamaha GT80 (GT80E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

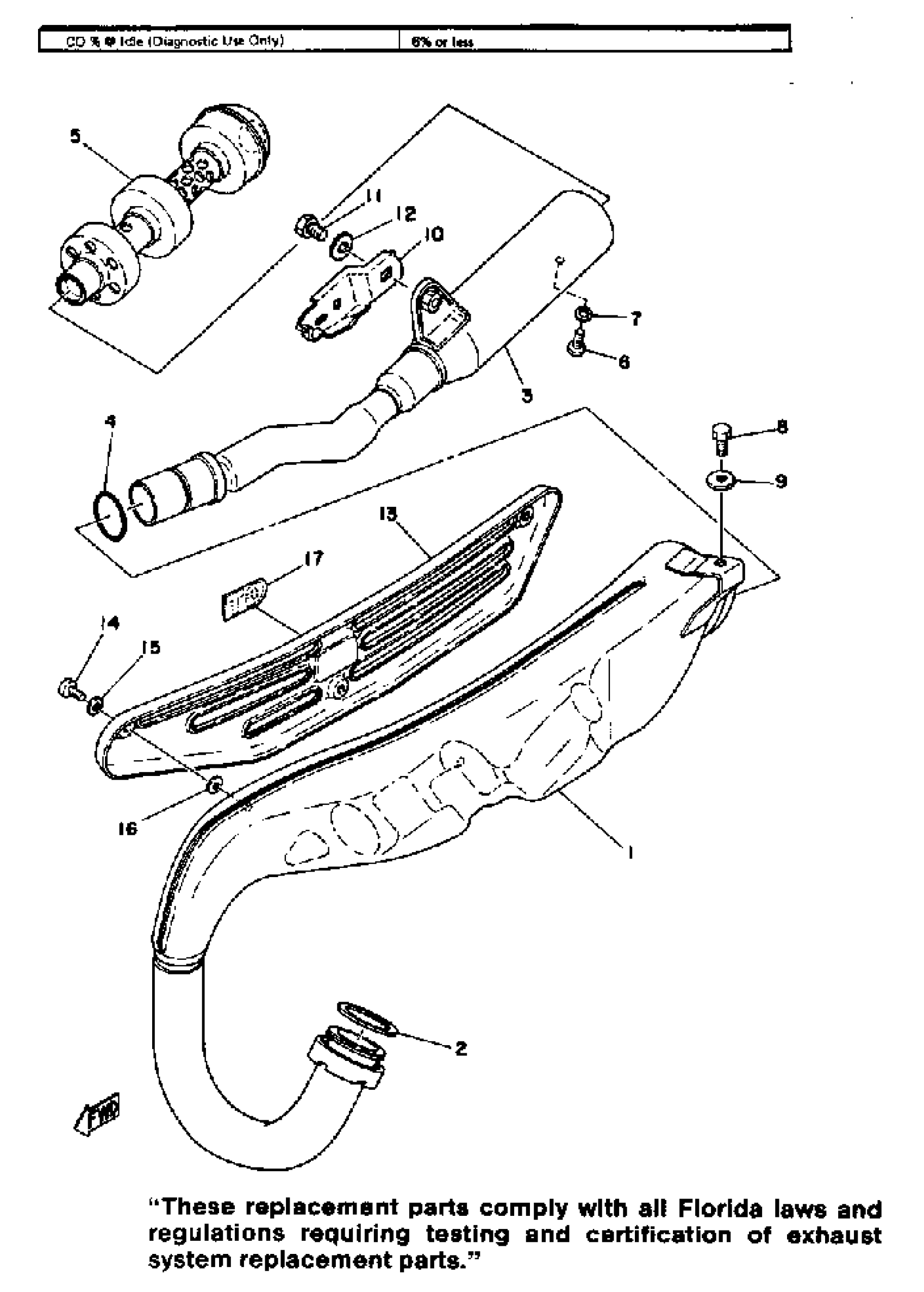

1978 Yamaha GT80 (GT80E) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(2F4-14610-00-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L

(2F4-14610-10-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L

(3J8-14610-00-00)

1
Out of stock

2

GASKET, EXHAUST PIPE

3MT-14613-00-00

1
Out of stock

3

SILENCER, EXHAUST (80E/F)

2F4-14753-00-00

1
Out of stock

3

SILENCER, EXHAUST

3J8-14753-00-00

1
Out of stock

4

O-RING (437)

93210-24235-00

1
Out of stock

4

O-RING

93210-27250-00

1
Out of stock

5

PIPE, OUTLET

2F4-14752-00-00

1
Out of stock

6

SCREW PAN HEAD

98580-06010-00

1
Out of stock

7

WASHER, SPRING

92995-06100-00

1
Out of stock

8

BOLT(JA9)

90101-08691-00

1
Out of stock

9

.. WASHER, PLATE

92990-08600-00

1
Out of stock

9

WASHER, PLAIN

92990-08200-00

1
Out of stock

10

STAY, MUFFLER 1

2A4-14771-00-00

1
Out of stock

11

BOLT(JA9)

90101-08691-00

1
Out of stock

12

.. WASHER, PLATE

92990-08600-00

1
Out of stock

12

WASHER, PLAIN

92990-08200-00

1
Out of stock

13

PROTECTOR, MUFF 1

(2A4-14718-00-20)

1
Out of stock

13

PROTECTOR, MUFF 1

(2A4-14718-00-T5)

1
Out of stock

14

SCREW, BIND(1JK)

98980-06010-00

—
Out of stock

15

WASHER, PLATE(3MB)

90202-05187-00

—
Out of stock

16

WASHER, PLATE(3MT)

90202-05188-00

—
Out of stock

17

EMBLEM, PROTECTOR

(2A4-14729-00-00)

1
Out of stock

17

EMBLEM, PROTECTOR

(2F4-14729-00-00)

1
Out of stock

17

EMBLEM, PROTECTOR

(3J8-14729-00-00)

1
Out of stock
