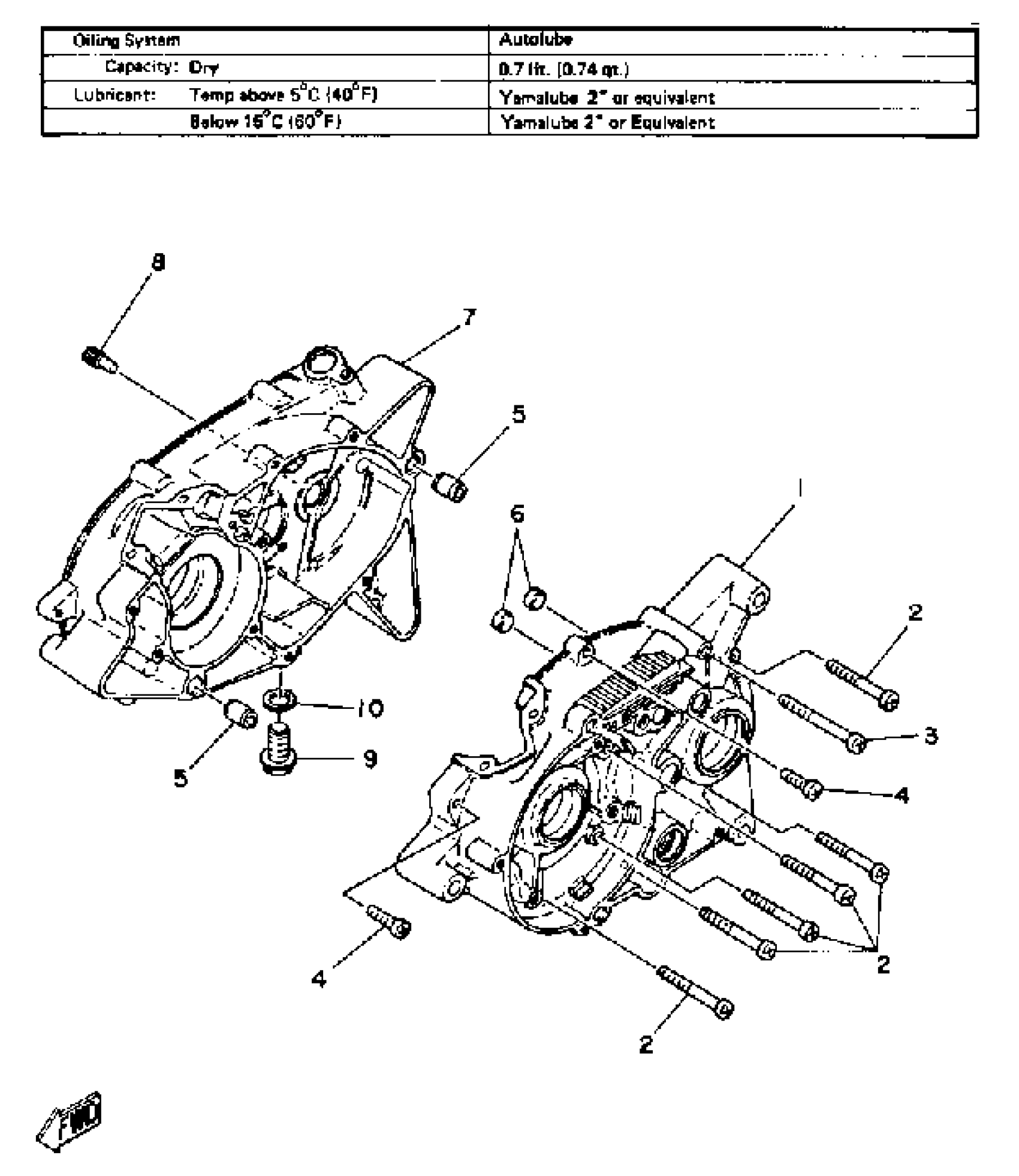

Yamaha GT80E (GT80) 1978 CRANKCASE GT80G Diagram

#

Description
Price

1

CRANKCASE 1

(374-15111-00-00)

Unavailable

2

SCREW PAN HEAD

98580-06550-00

$5.75

3

SCREW, PANHED (GC2)

98580-06555-00

$4.75

4

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

5

PIN, DOWEL

99530-12016-00

$3.85

6

PLUG, STRAIGHT

90334-12009-00

Unavailable

7

CRANKCASE 2

374-15121-02-00

Unavailable

8

STOPPER

492-15387-00-00

Unavailable

9

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$6.26

10

GASKET (3JD1)

90430-12207-00

$6.32
