1978 Yamaha GT80 (GT80E) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1978 Yamaha GT80 (GT80E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

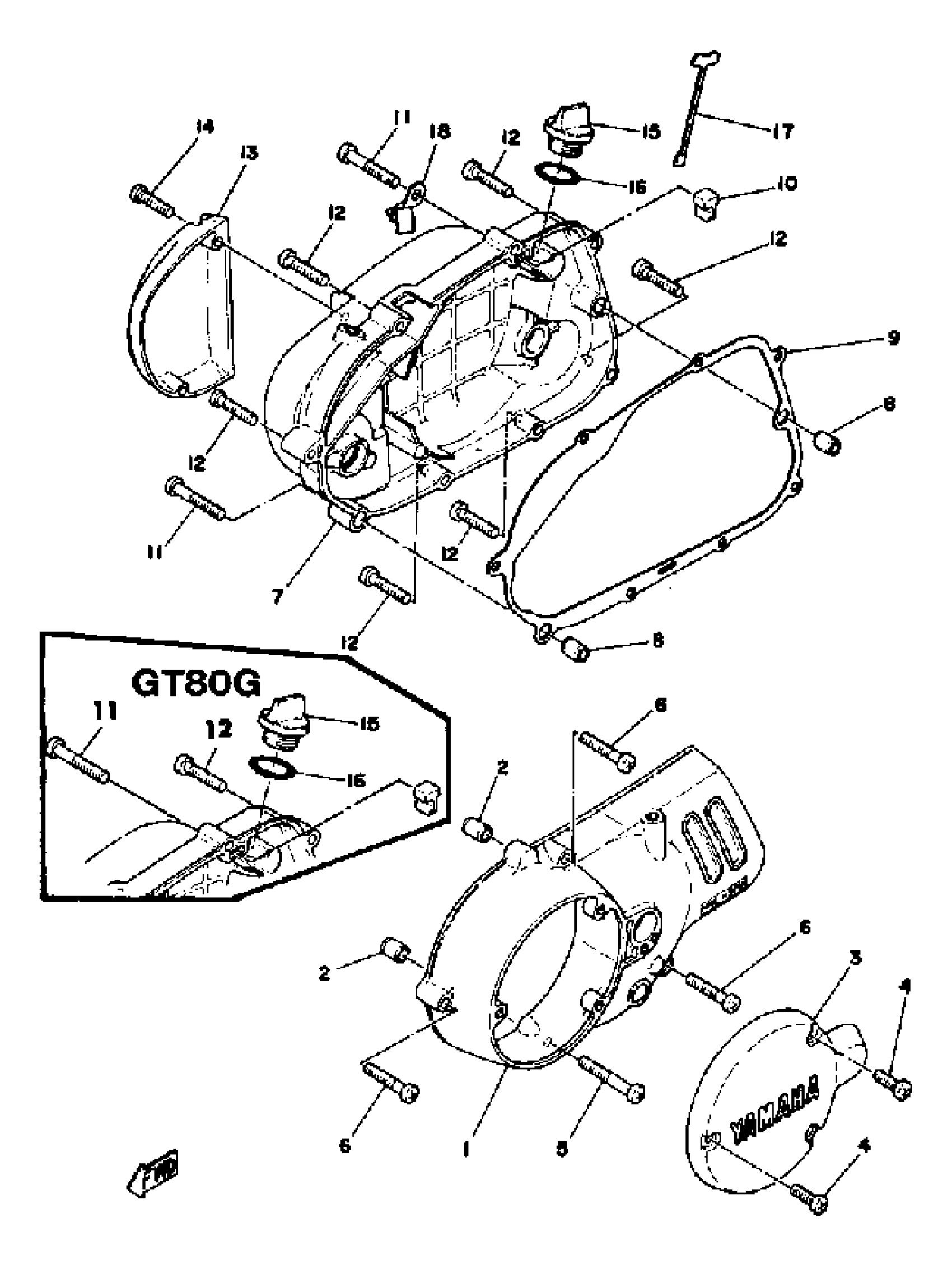

1978 Yamaha GT80 (GT80E) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L (353-15411-00-Y4)

353-15411-00-Y4

1
Out of stock

2

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

3

COVER, GENERATOR

353-15415-00-Y4

1
Out of stock

4

SCREW PAN HEAD

98580-06020-00

1
Out of stock

5

SCREW PAN HEAD

98580-06545-00

1
Out of stock

6

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

7

COVER, CRANKCASE R

353-15421-00-00

1
Out of stock

8

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

9

GASKET, CRANKCASE COVER 1

3MT-15451-00-00

1
Out of stock

10

SCRAPER, OIL

353-15437-02-00

1
Out of stock

11

SCREW PAN HEAD

98580-06040-00

1
Out of stock

12

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

13

COVER, OIL PUMP

353-15416-00-00

1
Out of stock

14

SCREW, PAN HEAD (76T)

98517-06025-00

1
Out of stock

15

PLUG, OIL

3Y1-15363-10-00

1
Out of stock

16

O-RING

93210-21190-00

—
Out of stock

17

GAUGE, LEVEL

353-15361-00-00

1
Out of stock

18

HOLDER, OIL PIPE

367-13174-00-00

—
Out of stock
