1977 Suzuki GT750 Transmission Diagram

← All diagrams

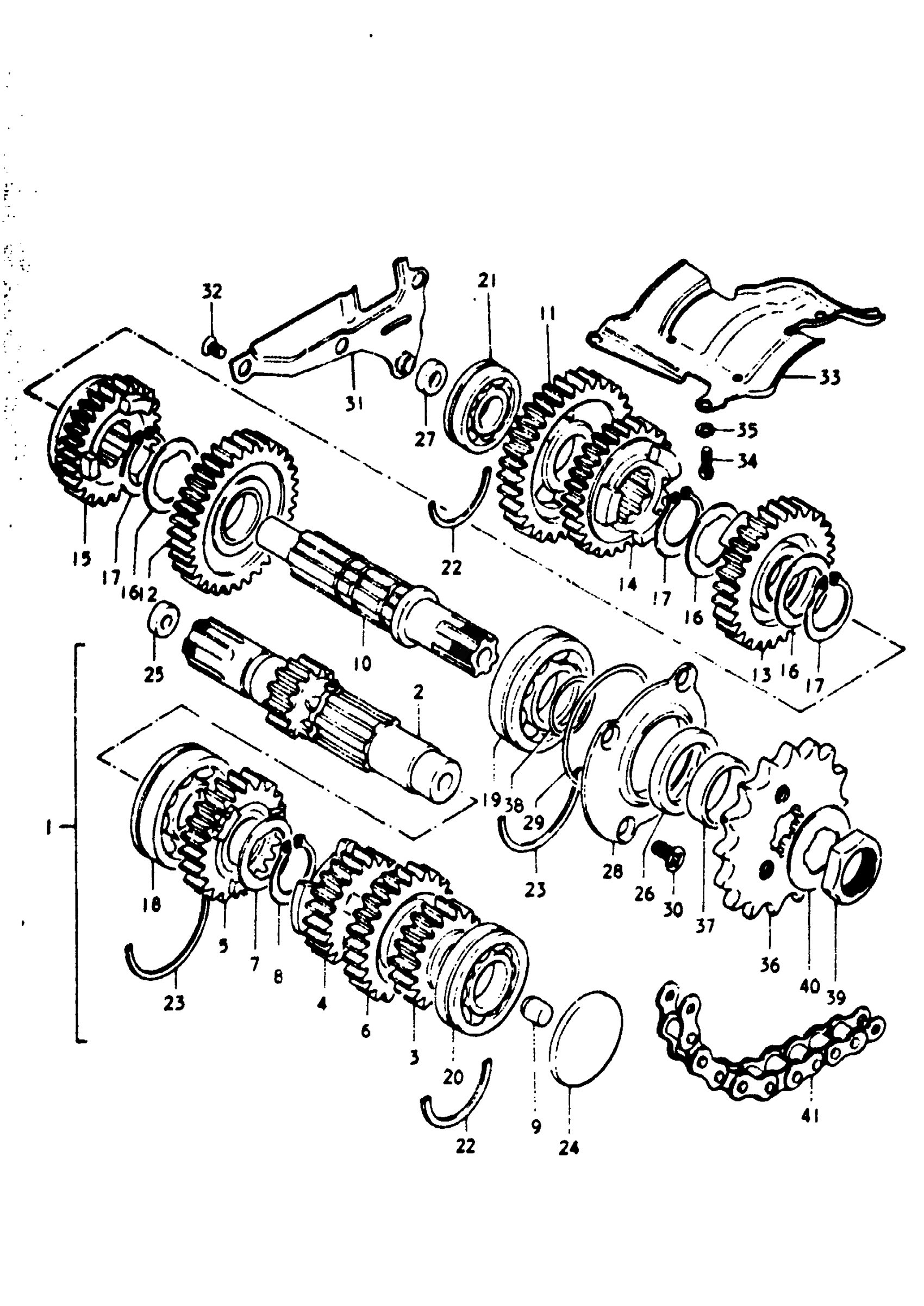

Find the part on the Transmission diagram for your 1977 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT750 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT ASSY | K,L,M,A; TO 24120-31001 ~E.NO. 76849

24120-31000

—
Out of stock

1

COUNTERSHAFT ASSY | A; ~F.NO. 66399 TO 24120-31002 SEENOTE 1

24120-31001

—
Out of stock

1

COUNTERSHAFT ASSY | A; TO 24120-31003

24120-31002

—
Out of stock

1

COUNTERSHAFT ASSY | A,B; Includes Item(s) 2 - 9

24120-31003

1
Out of stock

2

COUNTERSHAFT | K,L,M,A,B; NT:13

24121-31000

1
Out of stock

3

GEAR, 2ND DRIVE (NT:18) | K,L,M,A; NT:19 ~F.NO. 66399 This part replaces 24221-31000.

24221-49001

1
Out of stock

3

GEAR, 2ND DRIVE (NT:18) | A,B; NT:18 This part replaces 24221-37000.

24221-49001

1
Out of stock

4

GEAR, 3RD DRIVE | K,L,M,A; NT:22 ~F.NO. 66399

24231-31000

—
Out of stock

4

GEAR, 3RD DRIVE | A,B; NT:21 This part replaces 24231-37000.

24231-49000

1
Out of stock

5

GEAR, 4TH DRIVE | K,L,M,A; NT:24 This part replaces 24240-31000.

24240-49000

1
Out of stock

5

GEAR, 4TH DRIVE | A,B; NT:24 This part replaces 24240-31001.

24240-49000

1
Out of stock

6

GEAR, 5TH DRIVE | K,L,M,A; NT:26 TO 24250-31001 This part replaces 24250-31000.

24250-31001

1
Out of stock

6

GEAR, 5TH DRIVE | A,B; NT:26

24250-31001

1
Out of stock

7

WASHER | K,L,M,A,B

09167-28001

1
Out of stock

8

CIRCLIP | K,L,M,A,B; FROM 09380-28002 This part replaces 08331-11289.

08331-31289

1
Out of stock

9

PLUG | K,L,M,A,B

09243-09001

1
Out of stock

10

DRIVE SHAFT | K,L,M,A,B

24131-31000

1
Out of stock

11

GEAR SET, 1ST DRIVEN | K,L,M,A,B; NT:37 SEE NOTE 2

24310-31821

1
Out of stock

12

GEAR SET, 2ND DRIVEN | K,L,M,A; NT:33 SEE NOTE 2 ~F.NO.66399

24320-31822

—
Out of stock

12

GEAR SET, 2ND DRIVEN | A,B; NT:32 SEE NOTE 2

24300-37810

1
Out of stock

13

GEAR, 3RD DRIVEN | K,L,M,A; NT:30 ~F.NO.66399 This part replaces 24330-31000.

24330-37000

1
Out of stock

13

GEAR, 3RD DRIVEN | A,B; NT:29

24330-37000

1
Out of stock

14

GEAR, 4TH DRIVEN | K,L,M,A,B; NT:27

24341-31000

1
Out of stock

15

GEAR, 5TH DRIVEN | K,L; NT:24 TO 24351-31001 This part replaces 24351-31000.

24351-31001

1
Out of stock

15

GEAR, 5TH DRIVEN | M,A; NT:25 TO 24351-31201

24351-31200

—
Out of stock

15

GEAR, 5TH DRIVEN | A,B; NT:25

24351-31201

1
Out of stock

16

WASHER | K,L,M,A,B

09167-28001

3
Out of stock

17

CIRCLIP | K,L,M,A,B; FROM 09380-28002 This part replaces 08331-11289.

08331-31289

3
Out of stock

18

BEARING | K,L,M,A,B

09262-25024

1
Out of stock

19

BEARING | K,L,M,A,B

08163-63050

1
Out of stock

20

B1 20X47X14 BEA | K,L,M,A,B This part replaces 08163-62040.

09262-20047

1
Out of stock

21

BEARING | K,L,M,A,B

09262-20036

1
Out of stock

22

C RING | K,L,M,AB

09390-47003

2
Out of stock

23

C RING | K,L,M,AB

09390-62001

2
Out of stock

24

PLUG | K,L,M,A,B

09242-47001

1
Out of stock

25

OIL SEAL | K,L,M,A,B

09284-10002

1
Out of stock

26

OIL SEAL | K,L,M,A,B

09283-32003

1
Out of stock

27

OIL SEAL | K,L,M,A,B

09285-08003

1
Out of stock

28

RETAINFR, OIL SEAL | K,L,M,A,B

24751-31000

1
Out of stock

29

O-RING | K,L,M,A; ID:62.8, D.:1.9 This part replaces 09280-63001.

09280-63005

1
Out of stock

29

O RING | B; ID:64.5, D.:2.0 This part replaces 09280-64002.

09280-64001

1
Out of stock

30

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

4
Out of stock

31

PLATER, OIL RESERVOIR | K,L,M,A,B

24870-31000

1
Out of stock

32

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

3
Out of stock

33

PLATE, OIL GUIDE | K,L; TO 24881-31001

24881-31000

—
Out of stock

33

PLATE, OIL GUIDE | M,A,B

24881-31001

1
Out of stock

34

SCREW | K,L,M,A,B This part replaces 02112-05168.

02112-05167

3
Out of stock

35

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

3
Out of stock

36

SPROCKET, ENGINE | K,L,B; NT:15 OPT *F.NO.67347~; NT:15 OPT *F.NO.67347~; NT:15 OPT *F.NO.67347~

27511-33600

1
Out of stock

36

SPROCKET, ENGINE | ,L; NT:16 OPT ~F.NO.67346M,A; NT:16 OPT ~F.NO.67346

27511-34000

1
Out of stock

37

SPACER | K,L,M,A,B; 25x32x10.7

09180-25033

1
Out of stock

38

O RING | K,L,M,A,B

09280-25001

1
Out of stock

39

NUT, PIVOT RH | K,L,M,A,B This part replaces 09140-24004.

09140-24007

1
Out of stock

40

WASHER | K,L,M,A,B

09167-25007

1
Out of stock

41

CHAIN, DRIVE | K,L; DID 50HDSS, 108l FROM 27600-31013 This part replaces 27600-31015.

27600-15911

1
Out of stock

41

CHAIN ASSY, DRIVE | M,A; DID 50HDSS, 106l, ~F.NO.67346.TO 27600-31017 This part replaces 27600-31014.

27600-31017

1
Out of stock

41

CHAIN ASSY, DRIVE | M,A; DID 50HDSS, 106l

27600-31017

1
Out of stock

41

CHAIN ASSY, DRIVE | A; DID 50HDSS, 104l TO 27600-31018 This part replaces 27600-31016.

27600-31018

1
Out of stock

41

CHAIN ASSY, DRIVE | B; DID 50HDSS, 104l

27600-31018

1
Out of stock
