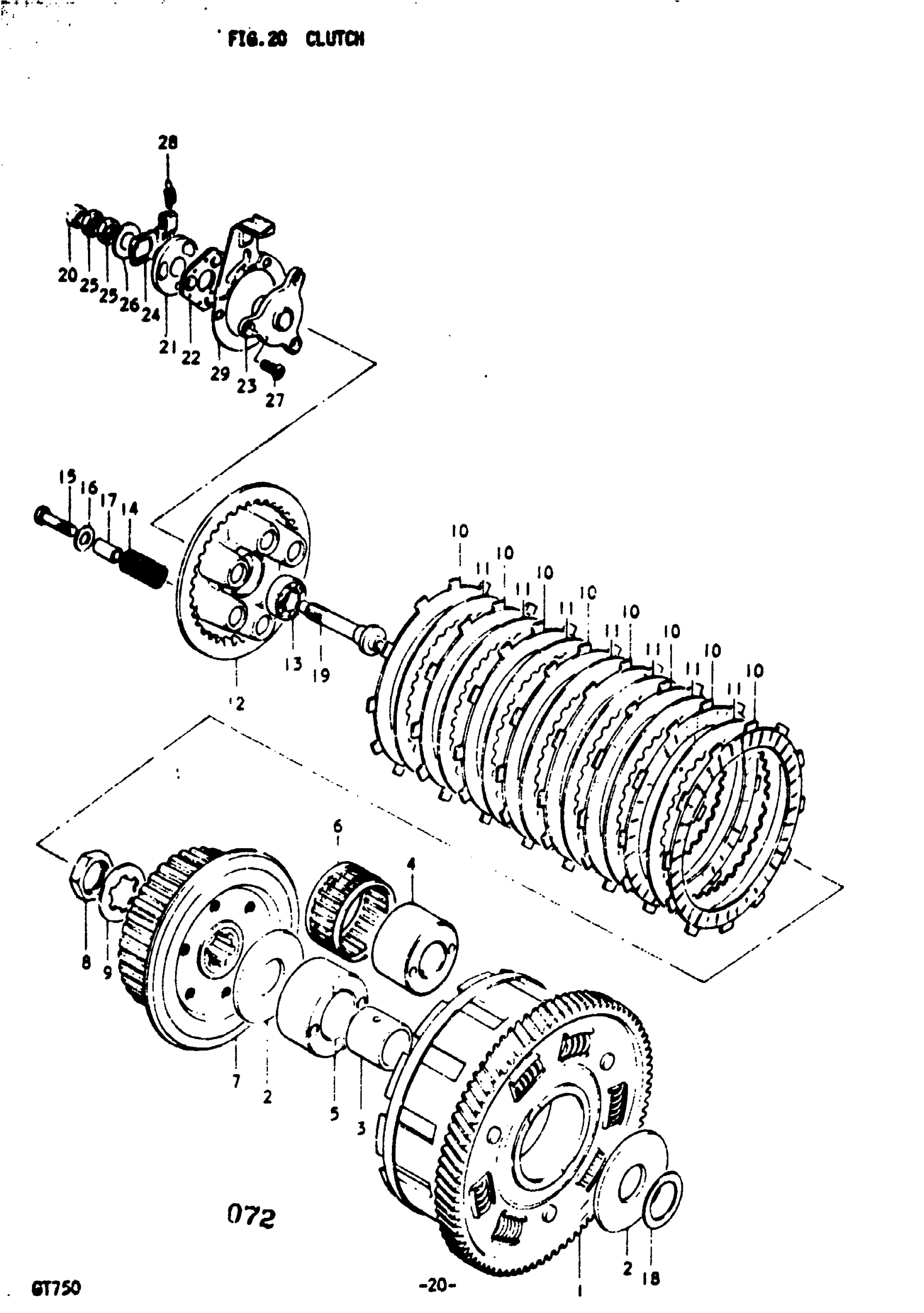

Find the part on the Clutch diagram for your 1977 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT750 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | K,L,M; NT:82 TO 21200-31001

21200-31000

—
Out of stock

1

NO DESCRIPTION AVAILABLE | A; NT:82 ~F.NO.67889 TO 21200-31002 This part replaces 21200-31001.

21200-31700

1
Out of stock

1

NO DESCRIPTION AVAILABLE | B; NT:82 This part replaces 21200-31002.

21200-31700

1
Out of stock

2

WASHER | K,L,M,A,B; 25x64x3.5 TO 09160-25020

09160-25014

—
Out of stock

2

WASHER | K,L,M,A,B

09160-25020

2
Out of stock

3

SPACER | K,L; 25x31x28

09180-25034

1
Out of stock

4

SPACER | M,A,B This part replaces 21251-31600.

21251-49200

1
Out of stock

5

SPACER | K,L; TO 09263-51001 WITH 21251-31600 This part replaces 21250-31000.

21251-49200

1
Out of stock

6

BEARING | M,A,B This part replaces 09263-51001.

09263-51002

1
Out of stock

7

HUB, SLEEVE | K,L,M,A,B

21411-31000

1
Out of stock

8

NUT, PIVOT RH | K,L,M,A,B This part replaces 09140-24004.

09140-24007

1
Out of stock

9

WASHER | K,L,M,A,B; 21.5x42x0.8

09167-25007

1
Out of stock

10

PLATE, DRIVE | K,L; TO 21441-31600

21441-31000

—
Out of stock

10

PLATE, DRIVE | M,A,B This part replaces 21441-31600.

21441-45001

8
Out of stock

11

PLATE, DRIVEN | K,L,M,A,B

21451-31000

7
Out of stock

12

DISK, PRESSURE | K,L,M,A,B

21462-31000

1
Out of stock

13

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 08113-60030.

09262-17037

1
Out of stock

14

SPRING | K,L,M,A,B

09440-19007

6
Out of stock

15

BOLT | K,L,M,A,B This part replaces 01122-08408.

01500-0840A

6
Out of stock

16

WASHER | K,L; 8.2x20x1.6 This part replaces 08322-21088.

08322-01087

6
Out of stock

16

WASHER (8.5X20X1.6) | M,A,B This part replaces 09160-08010.

09160-08054

6
Out of stock

17

SPACER | K,L,M,A,B; 8x12x23.2

09180-08025

6
Out of stock

19

SHAFT, RELEASE | K,L,M,A,B

23121-31000

1
Out of stock

20

OIL SEAL | K,L,M,A,B This part replaces 09282-10003.

09282-10001

1
Out of stock

21

BALL GUIDE, RELEASE OUTER | K,L; TO 23211-31001 This part replaces 23211-31000.

23211-31001

—
Out of stock

21

BALL GUIDE, RELEASE OUTER | M,A,B

23211-31001

—
Out of stock

22

BALL, RELEASE | K,L,M,A,B This part replaces 23250-31001.

23250-31003

1
Out of stock

23

BALL GUISE, RELEASE INNER | K,L; TO 23231-31001

23231-31000

—
Out of stock

23

BALL GUIDE, RELEASE INNER | M,A,B

23231-31001

1
Out of stock

24

ARM, RELEASE | K,L

23220-31001

—
Out of stock

24

ARM, RELEASE | M,A,B

23220-31002

1
Out of stock

25

NUT, FIXED DRIVE FACE | KL,M,A,B This part replaces 08312-31128.

09140-12039

2
Out of stock

25

NUT | L,M,A,B

09140-12016

1
Out of stock

26

WASHER | K,L,M,A,B; 12.2x24x1

09160-12013

1
Out of stock

27

SCREW | K,L,M,A,B This part replaces 02122-06208.

02122-0620A

3
Out of stock

28

SPRING | K,L,M,A,B

09443-08001

1
Out of stock

29

PLATE, OIL RESERVOIR | K,L,M,A,B

23510-31000

1
Out of stock
