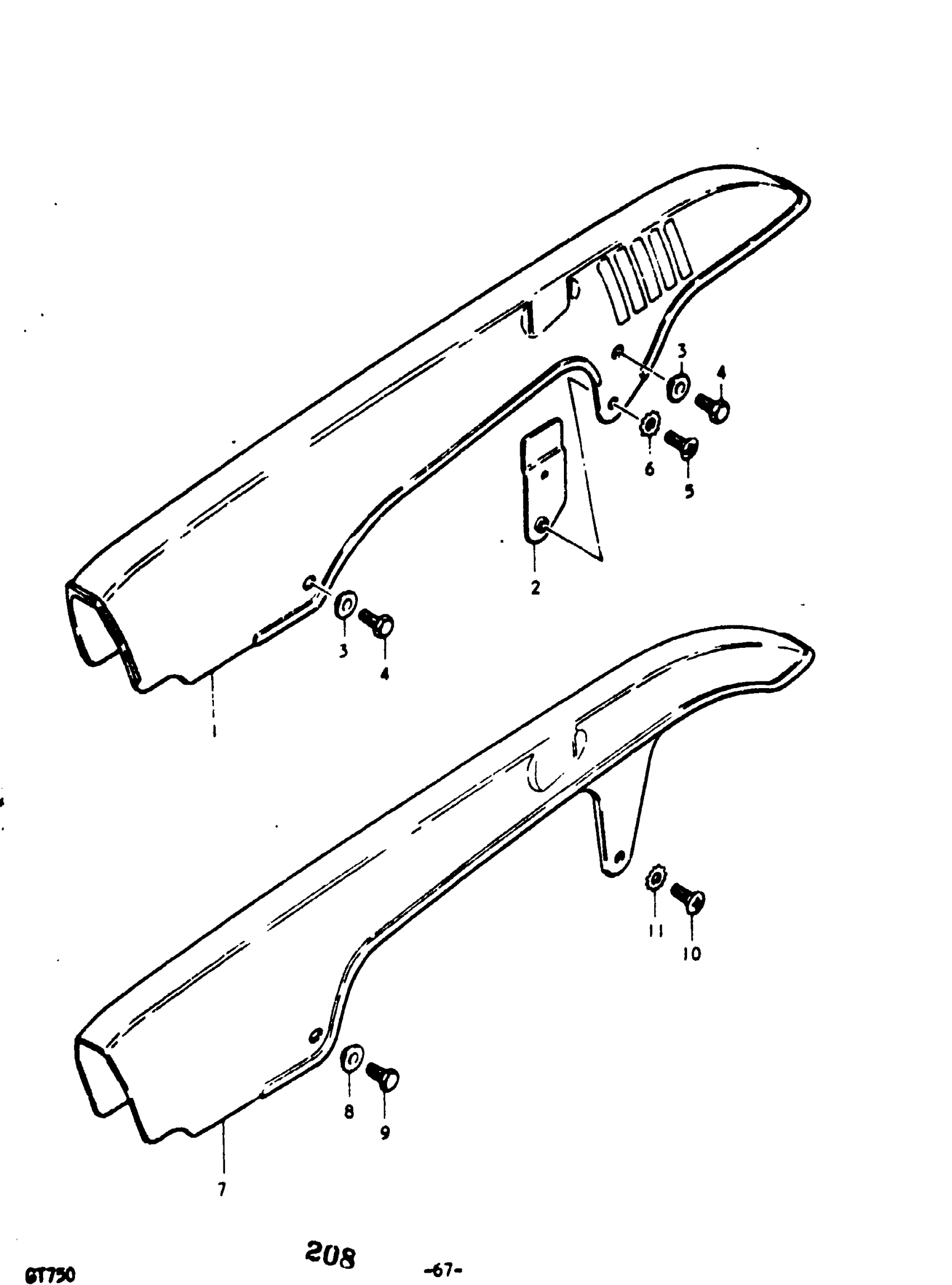

Suzuki GT750 (1977) CHAIN CASE Diagram

#

Description
Price

1

CHAIN CASE | K; TO 61310-33900-019

61311-33000-019

Unavailable

2

BRACKET | K

61381-31002

Unavailable

3

WASHER | K

09169-06010

$2.61

4

BOLT | K

09100-06011

$1.58

5

SCREW | K This part replaces 02122-06128.

02122-06127

$1.83

6

LOCK WASHER | K

08323-31068

Unavailable

7

CHAIN CASE | K

61310-33900-019

Unavailable

7

CHAIN CASE | K,L,M,A; TO 61310-33600

61310-33100

Unavailable

7

CHAIN CASE | B

61310-33600

Unavailable

8

WASHER | K,L,M,A,B This part replaces 09160-06007.

09160-06084

$1.77

9

BOLT | K,L,M,A,B

09100-06011

$1.58

10

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

$1.83

11

LOCK WASHER | K,L,M,A,B

08323-31068

Unavailable
