1977 Suzuki GT750 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1977 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

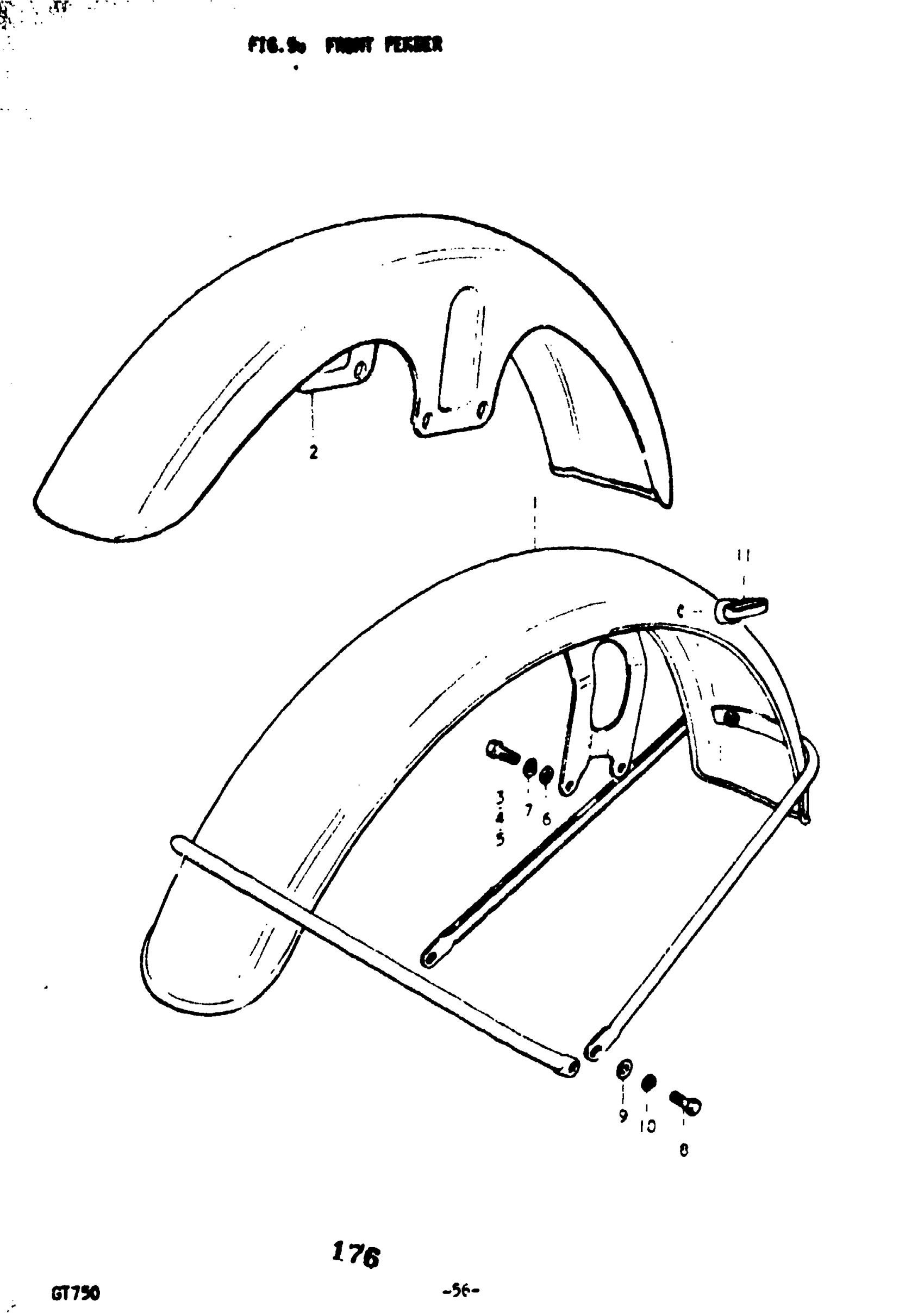

1977 Suzuki GT750 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER ASSY, FRONT | K,L; TO 53100-31702

53100-31701

—
Out of stock

1

FENDER ASSY, FRONT | M,A; FROM 53100-31700

53100-31702

1
Out of stock

2

NO DESCRIPTION AVAILABLE | B This part replaces 53110-45620.

53110-45632

1
Out of stock

3

1

$3.70

In stock

4

BOLT | K,L,M,A This part replaces 09100-08072.

01500-0820A

3
Out of stock

5

3

$2.68

In stock

6

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

1
Out of stock

9

4

$1.84

In stock
