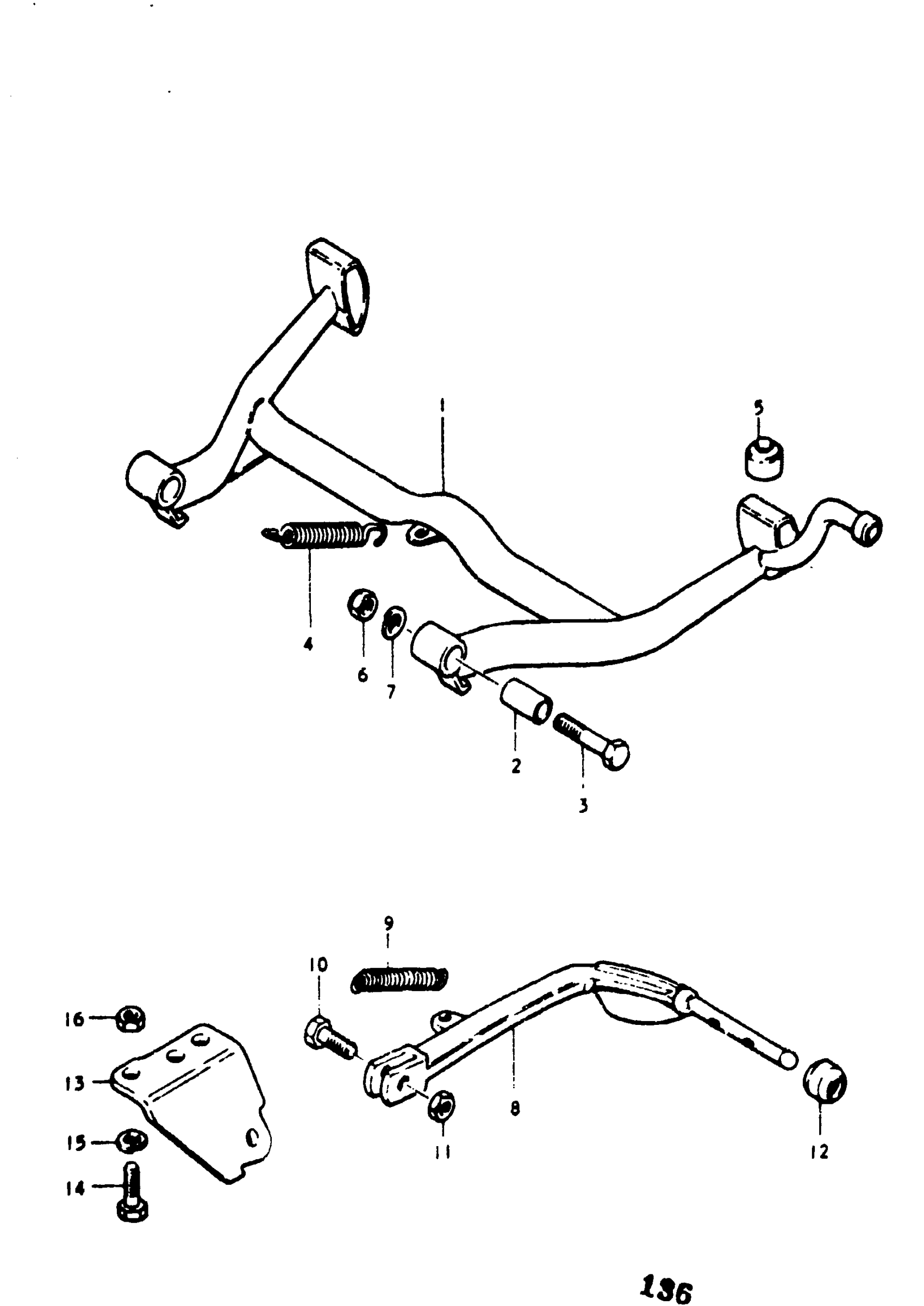

Find the part on the Center Stand diagram for your 1977 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT750 Center Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, CENTER | K,L,M,A,B

42100-31000

1
Out of stock

2

SPACER | K,L,M,A,B; 10.4x16x30

09180-10001

2
Out of stock

3

BOLT | K,L,M,A,B; 10x48

09100-10006

2
Out of stock

4

SPRING | K,L,M,A,B This part replaces 09443-16005.

09443-16005-XC0

1
Out of stock

5

CUSHION | K,L,M,A,B

09321-10001

2
Out of stock

6

NUT | K,L,M,A,B

09159-10011

2
Out of stock

7

LOCK WASHER | K This part replaces 08321-21108.

08321-01107

2
Out of stock

8

STAND, PROP | K,L,M,A,B; FROM 42310-31900

42310-31000

—
Out of stock

9

SPRING | K,L,M,A,B This part replaces 09443-14005.

09443-14017

1
Out of stock

10

BOLT | K,L,M,A,B; 10x27 This part replaces 09100-10007.

09100-10287

1
Out of stock

11

NUT | K,L,M,A,B This part replaces 08312-32108.

08310-00107

1
Out of stock

12

CUSHION | K,L,M,A,B

09320-07001

1
Out of stock

13

BRACKET, PROP STAND | K,L,M,A,B

42330-31600

1
Out of stock

14

BOLT | K,L,M,A,B This part replaces 09100-10007.

09100-10287

3
Out of stock

15

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

3
Out of stock

16

NUT | K,L,M,A,B This part replaces 08312-32108.

08310-00107

2
Out of stock
