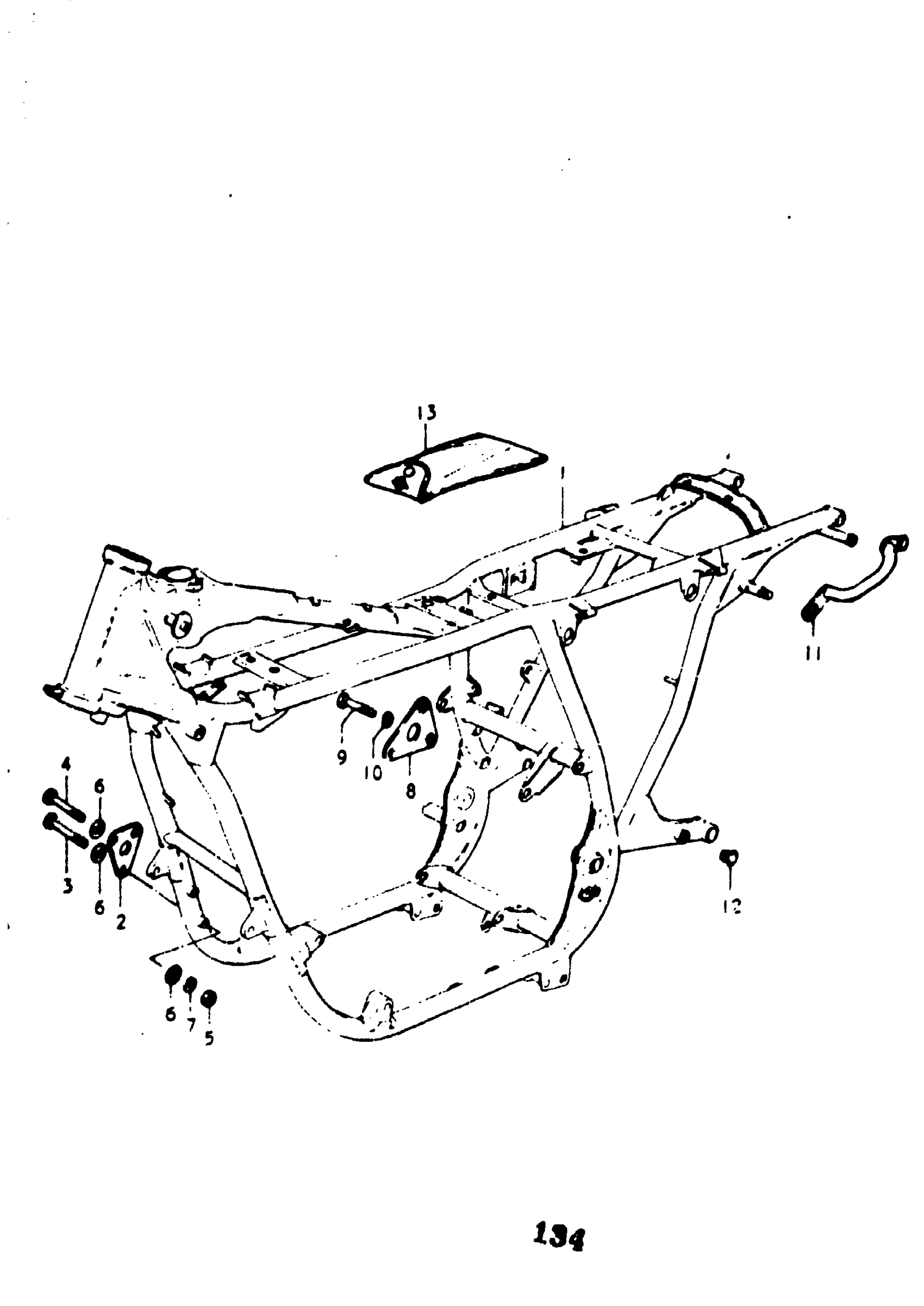

Suzuki GT750 (1977) FRAME Diagram

#

Description
Price

1

FRAME | K

41100-31601-019

Unavailable

1

FRAME | L,M,A; TO 41100-31201-019

41100-31200-019

Unavailable

1

FRAME | B

41100-31201-019

Unavailable

2

PLATE, ENGINE MOUNTING FRONT | K,L,M,A,B

41591-31000

Unavailable

3

BOLT | K,L,M,A,B This part replaces 01122-08658.

01500-0865B

$3.19

4

BOLT | K,L,M,A,B This part replaces 01122-08608.

01500-0860B

$3.19

5

NUT | K,L,M,A,B This part replaces 08312-11088.

08310-00087

$1.83

6

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

$1.86

7

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$1.83

8

PLATE, ENGINE MOUNTING REAR | K

41590-31000

Unavailable

8

PLATE, ENGINE MOUNTING REAR | L,M,A,B

41590-31200

Unavailable

9

BOLT | K,L,M,A,B This part replaces 01122-08558.

01500-08557

$2.90

10

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$1.83

11

GRIP, FRAME HANDLE | M,A,B

41411-34000

Unavailable

12

CAP | K,L,M,A This part replaces 09250-09001.

09250-09008

$1.56

13

TOOL SET | K,L,M,A,B This part replaces 09800-00134.

09800-21033

$61.65
