1972 Suzuki GT750 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1972 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

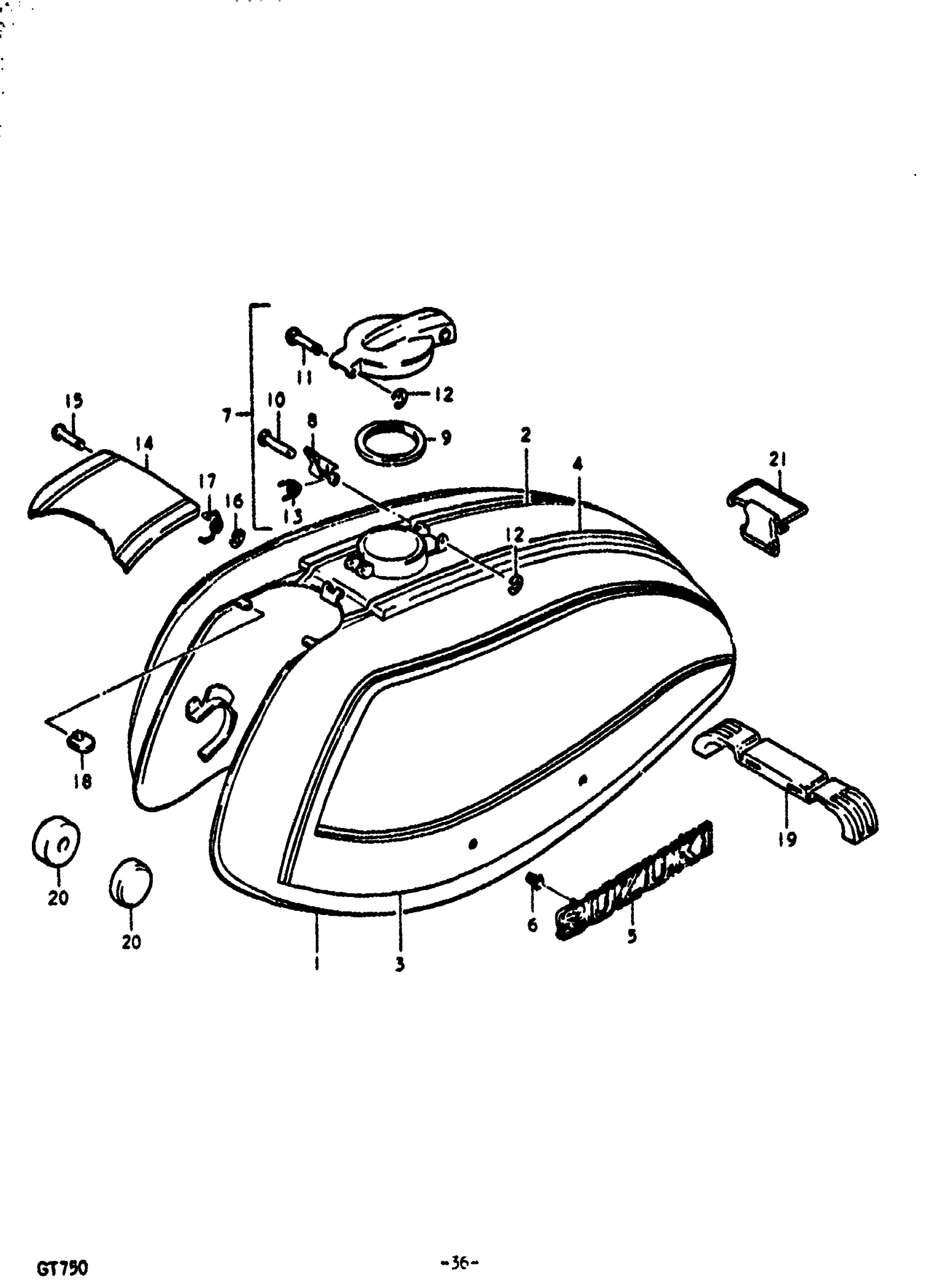

1972 Suzuki GT750 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 44110-31600-533.

44110-31660-13L

1
Out of stock

1

TANK, FUEL | Includes Item(s) 2 - 4

44110-31600-534

—
Out of stock

2

TAPE, STRIPING CENTER | TO 68100-31830

68116-31000

—
Out of stock

3

TAPE, STRIPING RH | TO 68100-31830

68115-31000

—
Out of stock

3

TAPE, STRIPING LH | TO 68100-31830

68125-31000

—
Out of stock

4

NO DESCRIPTION AVAILABLE | TO 68100-31830 This part replaces 68117-31000.

68100-31830

1
Out of stock

5

EMBLEM

68111-31600

2
Out of stock

6

NUT

09148-04005

4
Out of stock

7

CAP ASSY, FUEL TANK | Includes Item(s) 8 - 13

44200-15100

1
Out of stock

8

LEVER

44246-15100

1
Out of stock

9

GASKET

44248-15100

1
Out of stock

10

PIN

09208-03001

1
Out of stock

11

PIN

09208-03002

1
Out of stock

12

E RING

09383-02003

2
Out of stock

13

SPRING

09444-06002

1
Out of stock

14

COVER, FRONT

44270-31600-533

—
Out of stock

14

COVER, FRONT

44270-31600-534

—
Out of stock

15

PIN

09208-02001

1
Out of stock

16

E RING

09383-02001

1
Out of stock

17

SPRING

09448-08003

1
Out of stock

18

CUSHION

09329-01004

2
Out of stock

19

CUSHION, FUEL TANK REAR | TO 44541-31600 This part replaces 09329-01002.

44541-31600

1
Out of stock

20

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

21

BAND

09462-00049

1
Out of stock
