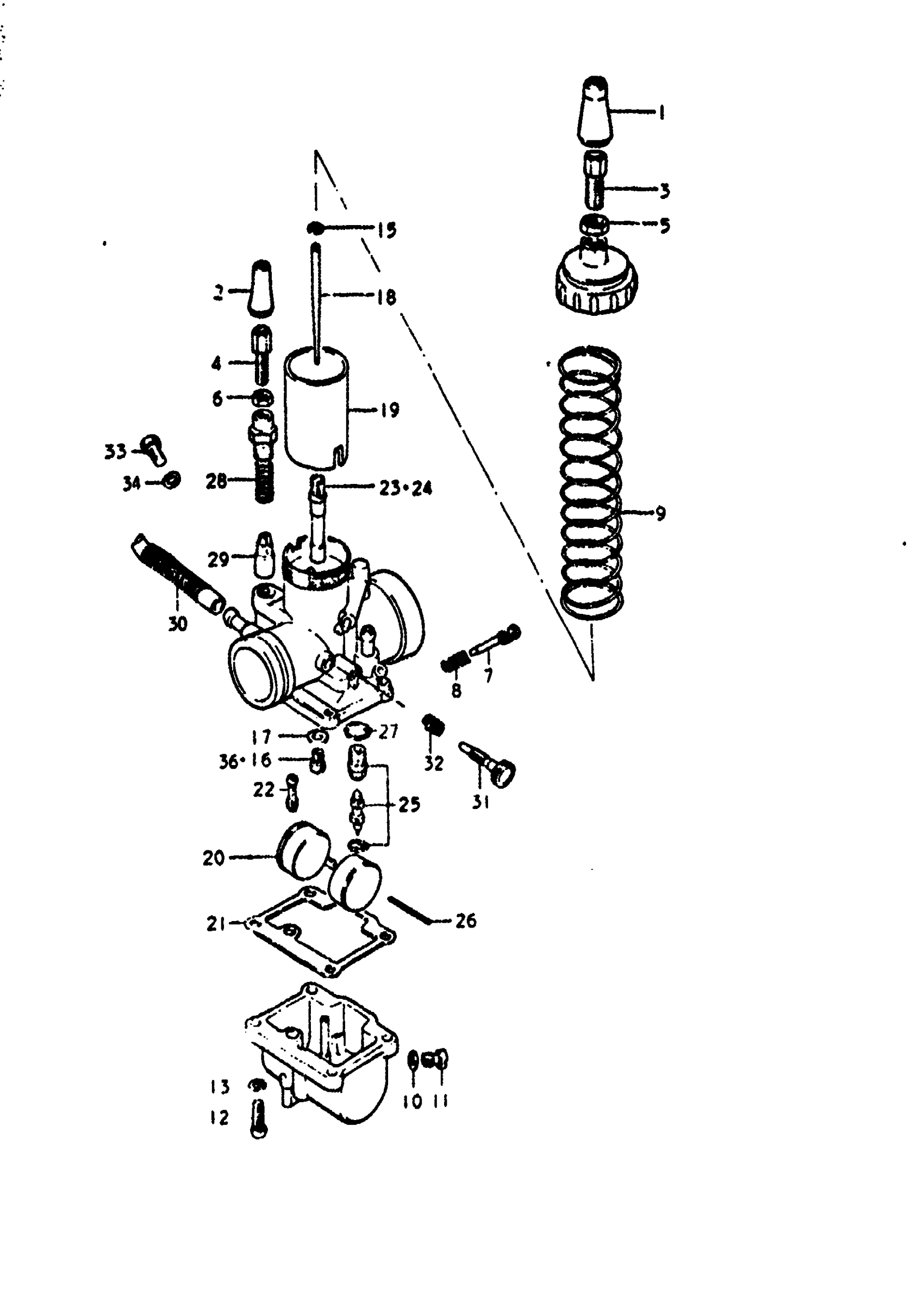

Suzuki GT750 (1972) CARBURETOR (MARKED : 31013) Diagram

#

Description
Price

0

CARBURETOR ASSY, RH | TO 13201-31015

13201-31013

Unavailable

0

CARBURETOR ASSY, MIDDLE | TO 13202-31015

13202-31013

Unavailable

0

CARBURETOR ASSY, LH | TO 13203-31015; Includes Item(s) 1 - 35

13203-31013

Unavailable

1

BOOT

13681-31010

Unavailable

2

BOOT | FROM 13681-16600

13681-16601

$7.78

3

ADJUSTER, CABLE

13577-31010

Unavailable

4

ADJUSTER This part replaces 13577-03010.

13577-48110

$9.37

5

NUT, CABLE ADJUSTER

13661-31010

Unavailable

6

NUT, CABLE ADJUSTER

13661-16600

$4.37

7

SCREW, PILOT AIR

13269-15010

Unavailable

8

SPRING, PILOT AIR SCREW

13268-01010

$4.11

9

SPRING, THROTTLE VALVE

13573-31010

Unavailable

10

GASKET, DRAIN PLUG

13249-05010

$1.93

11

PLUG, DRAIN

13247-05010

$4.81

12

SCREW This part replaces 02111-04168.

02112-0416A

$1.24

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

14

SEAT, THROTTLE VALVE

13581-15010

Unavailable

15

CLIP, NEEDLE

13394-10010

$6.15

16

.JET (#102.5) | #102.5 This part replaces 09491-20004.

09491-20012

$12.38

16

JET, MAIN (100) | #100 This part replaces 09491-20003.

09491-20017

$8.87

17

WASHER

13382-03110

$2.80

18

NEEDLE, JET | 5F 16-3

13383-31010

Unavailable

19

VALVE, THROTTLE (LH) | CA:2.5

13561-31012

Unavailable

19

VALVE, THROTTLE (RH & MIDDLE) | CA:2.5

13551-31012

Unavailable

20

FLOAT

13252-18010

Unavailable

21

GASKET, FLOAT CHAMBER | FROM 13251-18010

13251-33110

$8.50

22

JET, PILOT (30) | #30 This part replaces 09492-30003.

09492-30006

$8.74

23

JET, NEEDLE (RH & LH) | P-4

09494-00051

Unavailable

24

JET, NEEDLE (MIDDLE) | P-3

09494-00095

Unavailable

25

VALVE,NEEDLE This part replaces 13370-18010.

13370-41500

Unavailable

26

.PIN, FLOAT

13254-01010

$3.41

27

GASKET, VALVE SEAT This part replaces 13392-15010.

13392-16600

$1.98

28

SPRING, STARTER VALVE

13417-18630

$6.77

29

VALVE, STARTER

13411-01010

$20.82

30

HOSE, BOOST

44390-15050

Unavailable

31

SCREW, THROTTLE STOP

13267-31010

Unavailable

32

SPRING, STOP SCREW This part replaces 13268-31010.

13268-03110

$6.15

33

BOLT, VALVE INSPECTION

13664-18654

$10.15

34

GASKET, INSPECTION BOLT

13663-31010

$2.80

35

CAP, MIXING CHAMBER

13261-31011

Unavailable

36

JET, MAIN (97.5) | #97.5 This part replaces 09491-97001.

09491-97003

$12.38

37

JET, MAIN (105) | #105 This part replaces 09491-21003.

09491-21016

$13.18

37

JET, MAIN (#107.5) | #107.5 This part replaces 09491-21006.

09491-21014

$12.87

37

JET, MAIN (110) | #110 This part replaces 09491-22004.

09491-22016

$9.22

37

JET, MAIN (112.5) | #112.5 This part replaces 09491-22005.

09491-22015

$8.87
