1972 Suzuki GT750 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1972 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

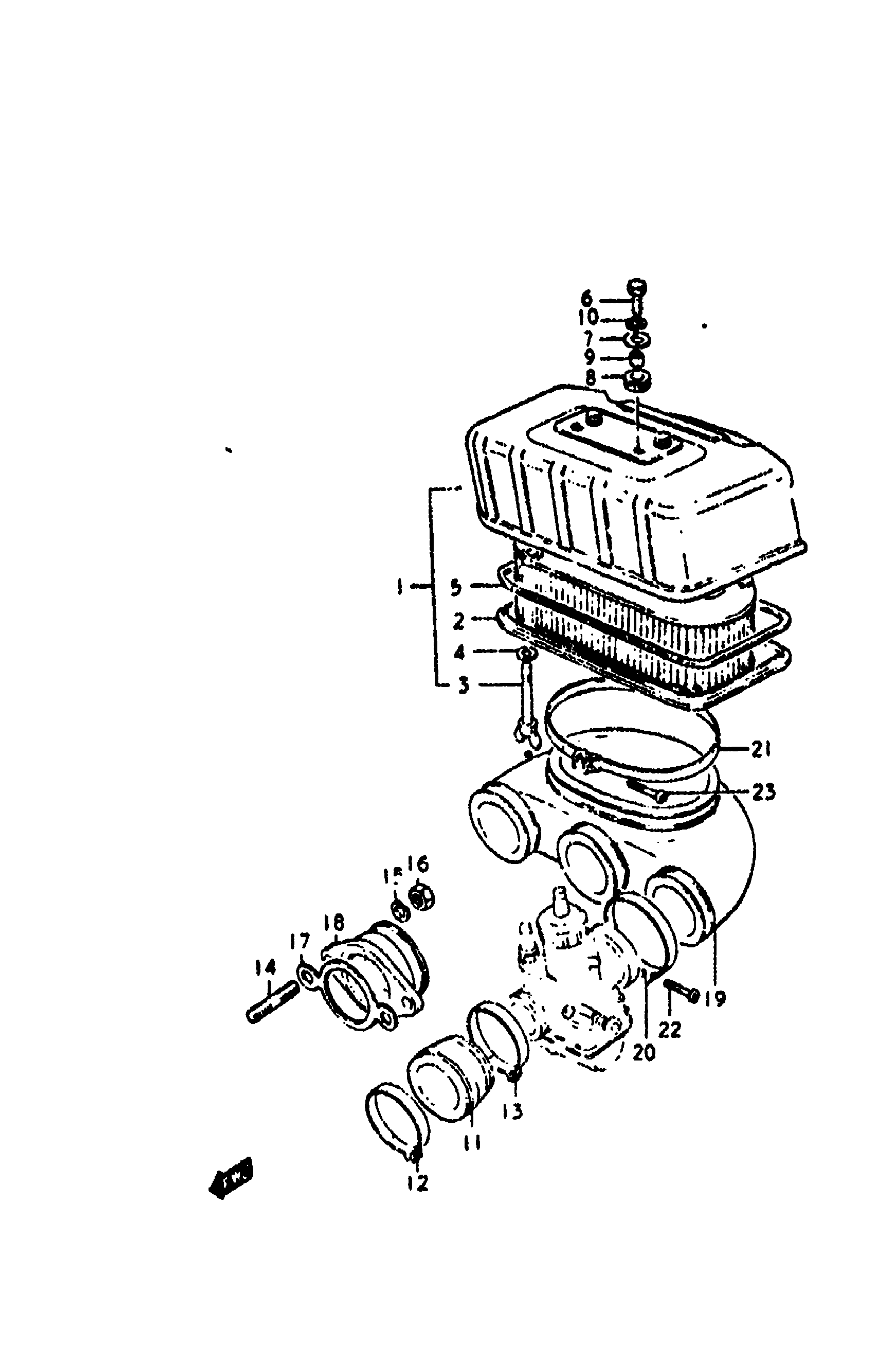

1972 Suzuki GT750 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 5

13700-31011

1
Out of stock

2

FILTER

13780-31011

1
Out of stock

3

BOLT

13751-31010

2
Out of stock

4

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

5

GASKET

13743-31010

1
Out of stock

6

BOLT This part replaces 01112-06258.

01500-06257

2
Out of stock

7

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

8

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

9

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

2
Out of stock

10

2

$2.28

In stock

11

PIPE, INTAKE | F.NO.21134~

13111-31001

3
Out of stock

12

CLAMP | F.NO.21134~

09402-54303

3
Out of stock

13

CLAMP | WITH SCREW FROM 09402-00229

09402-50306

3
Out of stock

14

STUD BOLT | ~F.NO.21133 This part replaces 01421-08168.

01421-0816A

6
Out of stock

16

6

$1.93

In stock

17

GASKET, CARBURETOR | ~F.NO.21133

13125-15000

3
Out of stock

18

PIPE, INTAKE | ~F.NO.21133 FROM 13110-31000

13110-32200

3
Out of stock

19

HOSE, AIR INLET | FROM 13880-31000

13880-31001

—
Out of stock

20

CLAMP | FROM 09402-00235 This part replaces 09402-64306.

09402-64203

3
Out of stock

21

CLAMP

09402-00219

1
Out of stock

22

SCREW This part replaces 02111-04208.

02112-0420A

3
Out of stock

23

SCREW

02111-04258

—
Out of stock
