1977 Suzuki GT550 Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1977 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

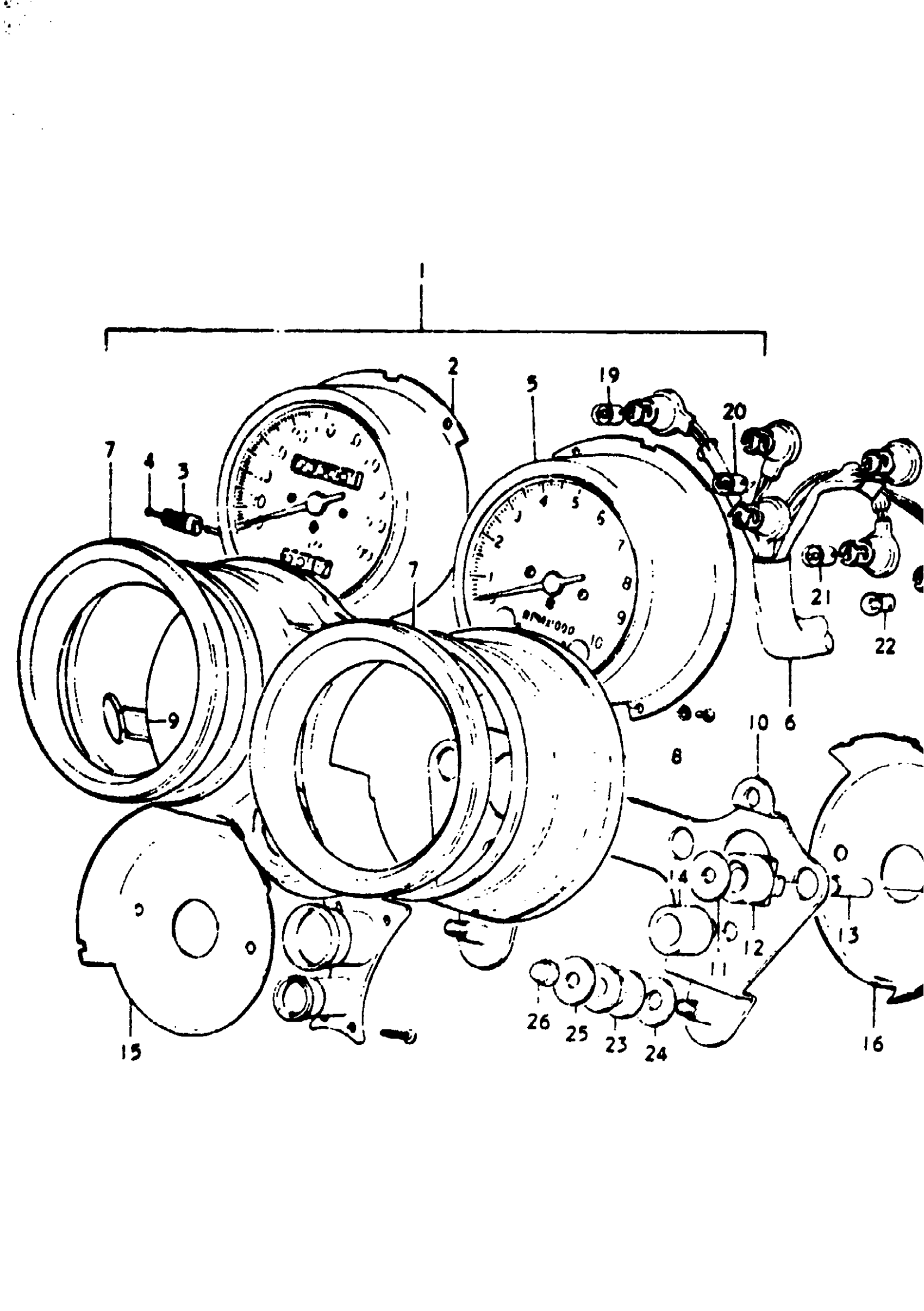

1977 Suzuki GT550 Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER / TACHOMETER | FROM 34000-33611-999 FROM 34000-33610-999; Includes Item(s) 2 - 18

34000-33611

—
Out of stock

2

NO DESCRIPTION AVAILABLE | FROM 34100-33611-999 This part replaces 34100-33611.

34100-33761

1
Out of stock

3

KNOB, TRIP METER

34980-33600

1
Out of stock

4

SCREW (2X6) This part replaces 34981-33600.

09139-02003

1
Out of stock

5

NO DESCRIPTION AVAILABLE | FROM 34200-33601-999 This part replaces 34200-33601.

34200-33710

1
Out of stock

6

SOCKET

34170-33600

1
Out of stock

7

COVER, METER

34190-33601

2
Out of stock

8

CASE, METER | TO 34051-33601

34051-33600

—
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 34051-33601.

34051-33602

1
Out of stock

9

CAP

34192-33600

1
Out of stock

10

BRACKET

34950-33600

1
Out of stock

11

WASHER This part replaces 34973-18620.

09160-06084

4
Out of stock

12

CUSHION (1)

34955-16420

4
Out of stock

13

SPACER

34972-16420

4
Out of stock

14

CUSHION (2)

34956-33600

2
Out of stock

15

PLATE, SPEEDOMETER UNDER | TO 34960-33602

34960-33601

—
Out of stock

15

PLATE, SPEEDOMETER UNDER

34960-33602

1
Out of stock

16

PLATE, TACHOMETER UNDER | TO 34961-33602

34961-33601

—
Out of stock

16

PLATE, TACHOMETER UNDER

34961-33602

1
Out of stock

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

18

NUT This part replaces 08311-11058.

08310-00057

4
Out of stock

19

2

$2.08

In stock

20

1

$2.08

In stock

21

1

$2.08

In stock

22

BULB, TURN SIGNAL LAMP | 12V, 1.7W

09471-12004

1
Out of stock

23

CUSHION, BRACKET

34956-15100

2
Out of stock

24

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

2
Out of stock

25

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

26

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

2
Out of stock
