1977 Suzuki GT550 Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1977 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

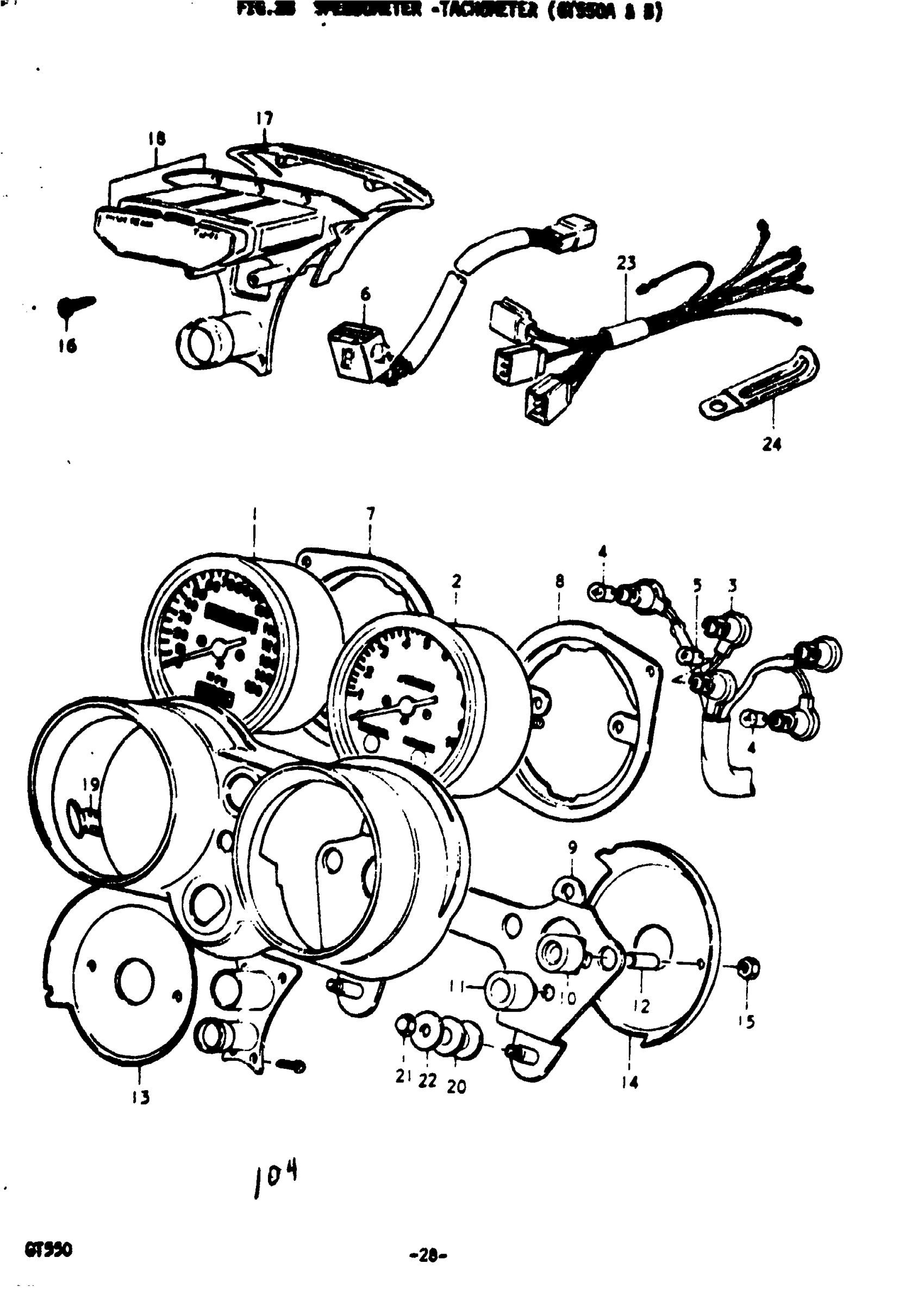

1977 Suzuki GT550 Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

NO DESCRIPTION AVAILABLE | A This part replaces 34100-33634.

34100-33637

1
Out of stock

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 1 - 19 This part replaces 34100-33636.

34100-33637

1
Out of stock

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 34110-33634.

34110-33635

1
Out of stock

2

TACHOMETER ASSY | A

34210-33123

1
Out of stock

2

NO DESCRIPTION AVAILABLE | B This part replaces 34210-33124.

34210-33126

1
Out of stock

3

SOCKET | A,B

34170-33620

1
Out of stock

4

BULB | A,B; 12V, 3.4W

09471-12001

4
Out of stock

5

BULB | A,B; 12V, 1.7W

09471-12004

1
Out of stock

6

NO DESCRIPTION AVAILABLE | A,B This part replaces 34990-33121.

34990-33123

1
Out of stock

7

PLATE, SPEEDOMETER | A,B

34951-33120

1
Out of stock

8

PLATE, TACHOMETER | A,B

34952-33120

1
Out of stock

9

BRACKET | A,B

34950-33120

1
Out of stock

10

CUSHION (1) | A,B

34955-16420

4
Out of stock

11

CUSHION (2) | A,B

34956-33600

2
Out of stock

12

SPACER | A,B

34972-16420

4
Out of stock

13

UNDER PLATE, SPEEDOMETER | A,B

34960-33602

1
Out of stock

14

UNDER PLATE, TACHOMETER | A,B

34961-33602

1
Out of stock

15

.NUT | A,B This part replaces 08311-11068.

08310-00067

4
Out of stock

16

SCREW | A,B This part replaces 02111-04107.

02112-04107

4
Out of stock

17

UNDER COVER | A,B

34982-33120

1
Out of stock

18

NO DESCRIPTION AVAILABLE | A,B This part replaces 34111-33121.

36380-33628

1
Out of stock

19

CAP | A,B

34192-33601

1
Out of stock

20

CUSHION, METER BRACKET | A,B

34956-15100

2
Out of stock

21

NUT | A,B

08313-12068

—
Out of stock

22

WASHER | A,B This part replaces 09160-06007.

09160-06084

2
Out of stock

23

LEAD WIRE, GEAR POSITION | A,B

36660-31200

1
Out of stock

24

CLAMP | A,B This part replaces 09404-06402.

09404-06039

1
Out of stock
