1977 Suzuki GT550 Speedometer - Tachometer (GT550L Diagram

← All diagrams

Find the part on the Speedometer - Tachometer (GT550L diagram for your 1977 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

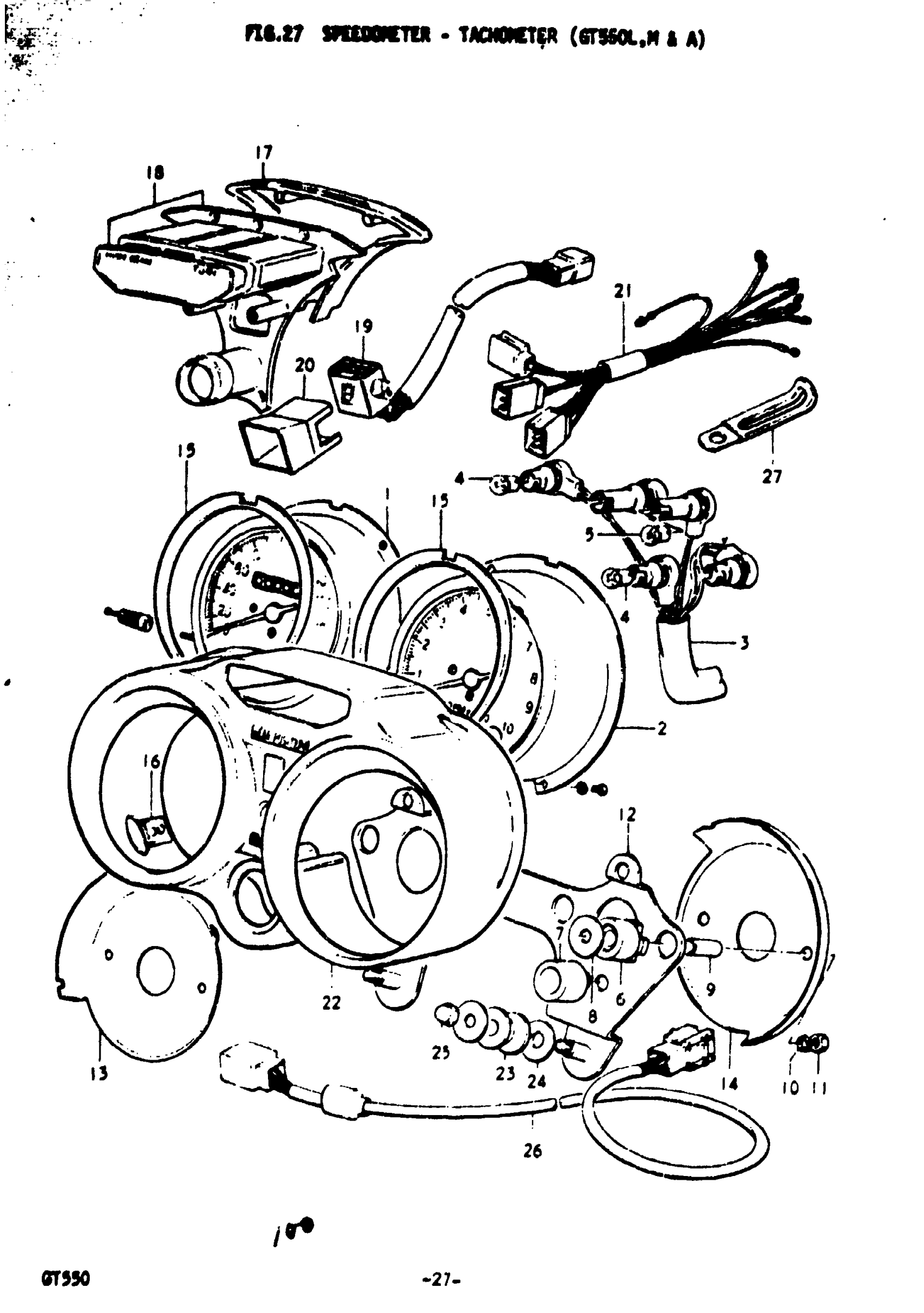

1977 Suzuki GT550 Speedometer - Tachometer (GT550L Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

SPEEDOMETER / TACHOMETER ASSY | L,M; TO 34100-33631

34100-33730

—
Out of stock

SPEEDOMETER / TACHOMETER ASSY | M; TO 34100-33632

34100-33631

—
Out of stock

NO DESCRIPTION AVAILABLE | A; FROM 34100-33632 TO 34100-33634*; Includes Item(s) 1 - 22 This part replaces 34100-33633.

34100-33637

1
Out of stock

1

NO DESCRIPTION AVAILABLE | L,M; TO 34110-33631 This part replaces 34101-33630.

34110-33635

1
Out of stock

1

NO DESCRIPTION AVAILABLE | A; TO 34110-33634* SEE NOTE This part replaces 34110-33631.

34110-33635

1
Out of stock

2

TACHOMETER ASSY | L,M; TO 34210-33121 This part replaces 34201-33120.

34210-33123

1
Out of stock

2

TACHOMETER ASSY | A; TO 34210-33123* SEE NOTE This part replaces 34210-33121.

34210-33123

1
Out of stock

3

SOCKET | L,M,A

34170-33620

1
Out of stock

4

4

$2.08

In stock

5

BULB | L,M,A; 12V, 1.7W

09471-12004

1
Out of stock

6

CUSHION (1) | L,M,A

34955-16420

4
Out of stock

7

CUSHION (2) | L,M,A

34956-33600

2
Out of stock

8

WASHER | L,M

09160-05024

4
Out of stock

8

WASHER,5.5X18X1 | A This part replaces 09160-05006.

09160-05006-XC0

4
Out of stock

9

SPACER | L,M,A

34972-16420

4
Out of stock

10

LOCK WASHER | L,M,A This part replaces 08321-21058.

08321-0105A

4
Out of stock

11

NUT | L,M,A This part replaces 08311-11058.

08310-00057

4
Out of stock

12

BRACKET | L,M,A

34950-33120

1
Out of stock

13

UNDER PLATE | L,M; TO 34960-33602

34960-33601

—
Out of stock

13

UNDER PLATE | A

34960-33602

1
Out of stock

14

UNDER PLATE | L,M; TO 34961-33602

34961-33601

—
Out of stock

14

UNDER PLATE | A

34961-33602

1
Out of stock

15

GASKET | L,M,A

34181-33600

2
Out of stock

16

CAP | L,M,A

34192-33600

1
Out of stock

17

UNDER COVER | L,M,A

34982-33120

1
Out of stock

18

NO DESCRIPTION AVAILABLE | L,M,A; FROM 34111-33120 This part replaces 34111-33121.

36380-33628

1
Out of stock

19

NO DESCRIPTION AVAILABLE | L,M,A; FROM 34990-33120 This part replaces 34990-33121.

34990-33123

1
Out of stock

20

COVER | L,M,A

34161-33120

—
Out of stock

21

LEAD WIRE | L,M

34980-33120

1
Out of stock

22

NO DESCRIPTION AVAILABLE | L,M,A This part replaces 34051-34120.

34051-34121

1
Out of stock

23

CUSHION | L,M,A

34956-15100

2
Out of stock

24

WASHER | L,M,A; 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

2
Out of stock

25

NUT, LICENSE HOLDER | L,M,A This part replaces 08313-11067.

08313-10067

2
Out of stock

26

LEAD WIRE, GEAR POSITION INDIC | L,M,AL,M,A

36660-31200

1
Out of stock

27

CLAMP | L,M,A This part replaces 09404-06402.

09404-06039

1
Out of stock
