1977 Suzuki GT550 Rear Wheel Diagram

← All diagrams

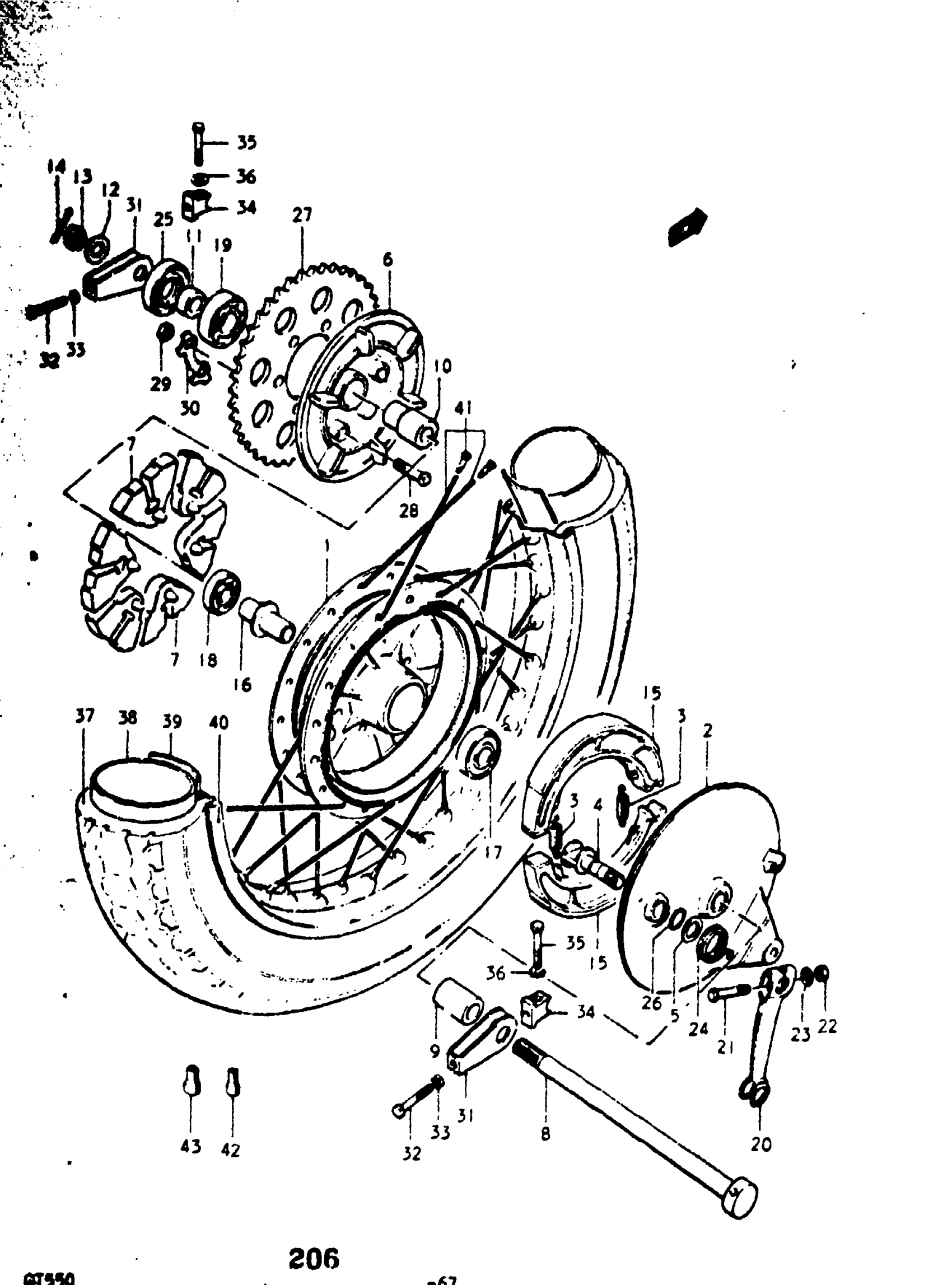

Find the part on the Rear Wheel diagram for your 1977 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT550 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB | K,L,M

64110-11000

—
Out of stock

1

HUB | A,B

64110-11001

1
Out of stock

2

PANEL | K; TO 64210-11001

64210-11000

—
Out of stock

2

PANEL | L,M; TO 64210-11002

64210-11001

—
Out of stock

2

PANEL | A,B

64210-34100

1
Out of stock

3

SPRING

55420-30000

2
Out of stock

4

CAM, BRAKE | K; TO 54440-33001 This part replaces 54440-33000.

54440-33002

1
Out of stock

4

CAM, BRAKE | L,M This part replaces 54440-33001.

54440-33002

1
Out of stock

4

CAM, BRAKE | A,B This part replaces 54440-11003.

64440-38A00

1
Out of stock

5

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

1
Out of stock

6

DRUM

64611-34000

1
Out of stock

7

SHOCK ABSURBER, REAR DRUM This part replaces 64651-11000.

64651-11002

6
Out of stock

8

AXLE, REAR This part replaces 64711-34000.

64711-34001

1
Out of stock

9

SPACER | 17.5x28x51.8

09180-17039

1
Out of stock

10

RETAINER, SPROCKET DRUM

64733-34000

1
Out of stock

11

SPACER | 17x30.5x11.3

09180-17035

1
Out of stock

12

WASHER This part replaces 08322-11168.

08322-01167

1
Out of stock

13

NUT

09141-16001

1
Out of stock

14

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

15

SHOE SET,BRAKE( | K,L,M This part replaces 64410-11002.

64400-11870

2
Out of stock

15

SHOE SET,BRAKE | A,B This part replaces 64410-34100.

64400-34830

2
Out of stock

16

SPACER, BEARING

64730-11000

1
Out of stock

17

BEARING, LH This part replaces 08143-63030.

08143-63037

1
Out of stock

18

BEARING, FRONT HUB RH This part replaces 08143-62030.

08143-62037

1
Out of stock

19

BEARING, LH This part replaces 08113-62050.

09262-25003

1
Out of stock

20

LEVER, BRAKE CAM | K,L,M

64451-11000

1
Out of stock

20

LEVER, BRAKE CAM | A,B

64451-31002

1
Out of stock

21

BOLT | K,L,M This part replaces 01112-06408.

01500-0640B

1
Out of stock

21

BOLT | A,B This part replaces 01112-06258.

01500-06257

1
Out of stock

22

.NUT | K,L,M This part replaces 08311-11068.

08310-00067

1
Out of stock

23

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

1
Out of stock

24

SPRING This part replaces 09448-30001.

09448-30001-XC0

1
Out of stock

25

SEAL,OIL(30.5X5 This part replaces 09283-30001.

09285-30003

1
Out of stock

26

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

27

SPROCKET, REAR | NT:40

64511-33751

1
Out of stock

27

SPROCKET, REAR | OPT; NT:42

64511-33760

1
Out of stock

27

SPROCKET, REAR | OPT; NT:44

64511-33741

1
Out of stock

27

SPROCKET, REAR | OPT; NT:44

64511-33770

1
Out of stock

27

SPROCKET, REAR | OPT; NT:46

64511-33001

1
Out of stock

28

BOLT This part replaces 09119-10010.

09105-10002

6
Out of stock

29

NUT | K,L,M,A; TO 08312-31108

09140-10018

—
Out of stock

29

NUT | B This part replaces 08312-31108.

08310-00107

6
Out of stock

30

WASHER

09169-10006

3
Out of stock

31

ADJUSTER, CHAIN This part replaces 61410-33000.

61410-47200

2
Out of stock

32

BOLT (8X50) This part replaces 09104-08006.

09104-08034

2
Out of stock

33

2

$1.93

In stock

34

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

2
Out of stock

35

BOLT This part replaces 01122-08508.

01500-08507

2
Out of stock

36

WASHER This part replaces 08322-11086.

08322-0108A

2
Out of stock

37

TIRE | K,L; 4.00-18-4PR TO 65100-31013

65100-31012

—
Out of stock

37

TIRE (4.00-H18-4PR) | M; FROM 65100-31012 TO 65100-31600

65100-31013

—
Out of stock

37

TIRE | A,B

65100-31600

—
Out of stock

38

TUBE, INNER | 4.00-18 This part replaces 65200-15011.

65200-49015

1
Out of stock

39

IN TUBE PROTECT This part replaces 65261-15010.

55261-26F10

1
Out of stock

40

RIM, WHEEL | K,L; 2.158-18

65311-15020

1
Out of stock

40

RIM, WHEEL | M,A,B

65311-15021

1
Out of stock

41

SPOKE SET | K,L

65320-13818

—
Out of stock

41

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 65300-31830.

65300-31831

1
Out of stock

42

BALANCER WHEEL (15G) | (0~3); 20G This part replaces 55411-11000.

55411-26G00

1
Out of stock

43

BALANCER WHEEL (30G) | (0~3); 30G This part replaces 55412-11000.

55413-41F00

1
Out of stock
