1977 Suzuki GT550 Front Fork (GT550M Diagram

← All diagrams

Find the part on the Front Fork (GT550M diagram for your 1977 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

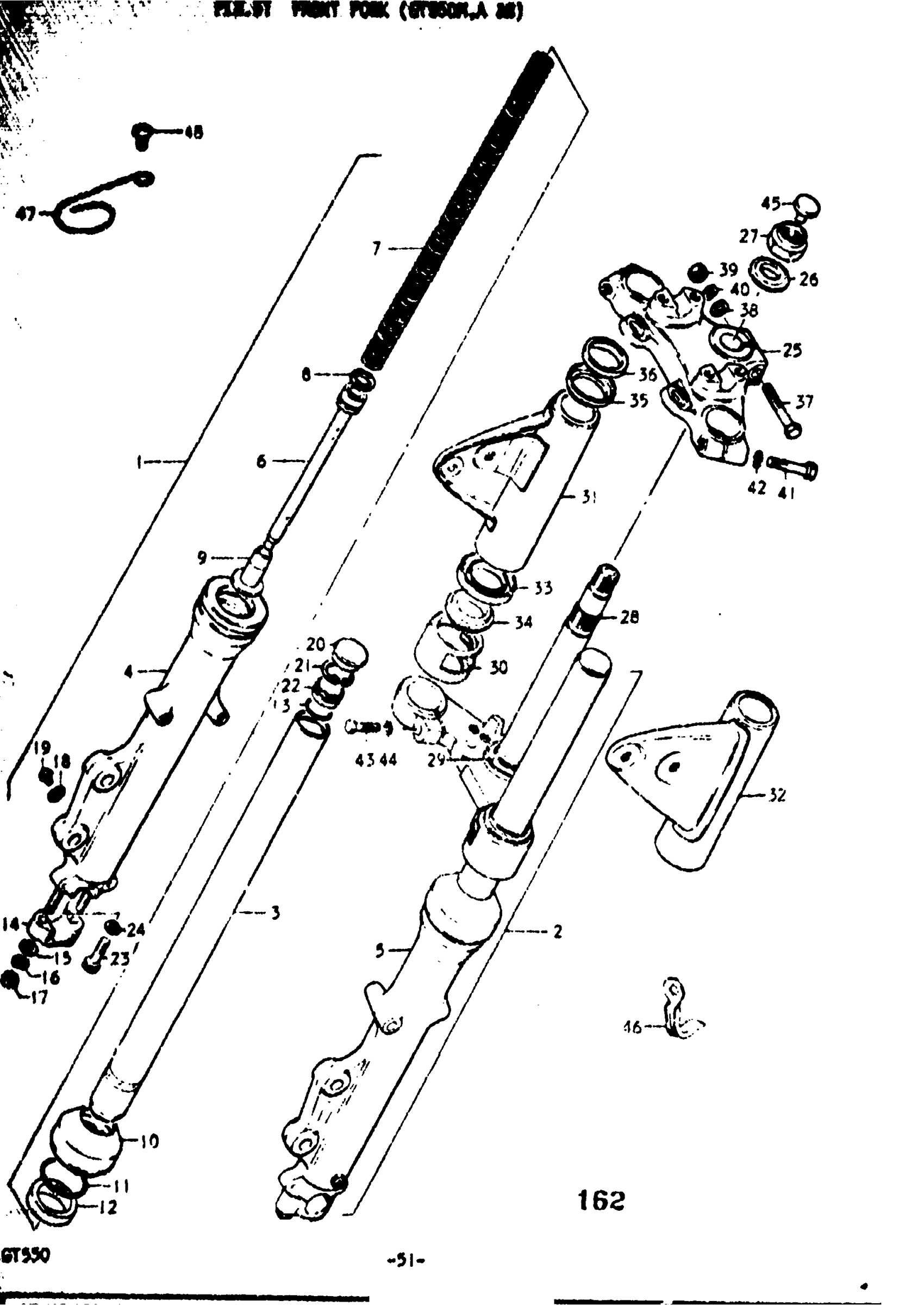

1977 Suzuki GT550 Front Fork (GT550M Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, RH

51103-34130

1
Out of stock

2

DAMPER ASSY, LH | Includes Item(s) 3 - 24

51104-34130

1
Out of stock

3

TUBE

51110-31232

2
Out of stock

4

OUTER TUBE, RH

51130-31231

1
Out of stock

5

OUTER TUBE, LH

51140-31231

1
Out of stock

6

INNER TUBE

51146-31230

2
Out of stock

7

SPRING

51171-34130

2
Out of stock

8

RING

51196-31230

2
Out of stock

9

PEACE, OIL LOCK

51195-31230

2
Out of stock

10

DUST SEAL This part replaces 51571-31231.

51571-20520

2
Out of stock

11

2

$5.75

In stock

12

2

$23.54

In stock

13

O RING

51181-31030

2
Out of stock

14

HOLDER

51132-31030

4
Out of stock

15

WASHER This part replaces 08322-21088.

08322-01087

4
Out of stock

16

4

$2.28

In stock

17

4

$1.93

In stock

18

GASKET

51183-33030

2
Out of stock

19

2

$1.67

In stock

20

CAP

51189-31230

2

$10.58

In stock

21

CIRCLIP

08331-41309

2

$3.08

In stock

22

SEAT, SPRING

51172-31230

2
Out of stock

23

2

$4.33

In stock

24

2

$3.55

In stock

25

NO DESCRIPTION AVAILABLE This part replaces 51311-34002-019.

51311-34002-291

1
Out of stock

26

WASHER, FORK UPPER BRACKET

51356-31700

1
Out of stock

27

NUT This part replaces 51353-31700.

51353-31710

1
Out of stock

28

STEERING STEM | M; TO 51410-34110

51410-31700

—
Out of stock

28

STEERING STEM | A; TO 51410-15210

51410-34110

—
Out of stock

28

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 29 This part replaces 51410-15210.

51410-15640

1
Out of stock

29

OUTER RACE

51621-33001

1

$18.33

In stock

30

COVER, LOWER BRACKET

51570-37000

2
Out of stock

31

BRACKET, HEADLAMP RH | M,A

51530-31201

1
Out of stock

31

BRACKET, HEADLAMP RH | B

51530-31701-291

1
Out of stock

32

BRACKET, HEADLAMP LH | M,A

51540-31201

1
Out of stock

32

BRACKET, HEADLAMP LH | B

51540-31701-291

1
Out of stock

33

SEAT, HEADLAMP BRACKET

51551-31000

2
Out of stock

34

CUSHION

51553-31000

2
Out of stock

35

CAP

51555-31000

2
Out of stock

36

CUSHION

51556-31000

2
Out of stock

37

BOLT This part replaces 01122-08508.

01500-08507

1
Out of stock

38

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

39

1

$1.93

In stock

40

1

$2.28

In stock

41

1

$3.51

In stock

41

BOLT, RH

09100-10021

1
Out of stock

42

2

$1.93

In stock

43

2

$3.51

In stock

44

2

$1.93

In stock

45

1

$2.66

In stock

46

CLAMP, CABLE LH

34991-18100

1
Out of stock

47

CLIP This part replaces 51455-31000.

51455-31010

1
Out of stock

48

2

$2.97

In stock
