1977 Suzuki GT550 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1977 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

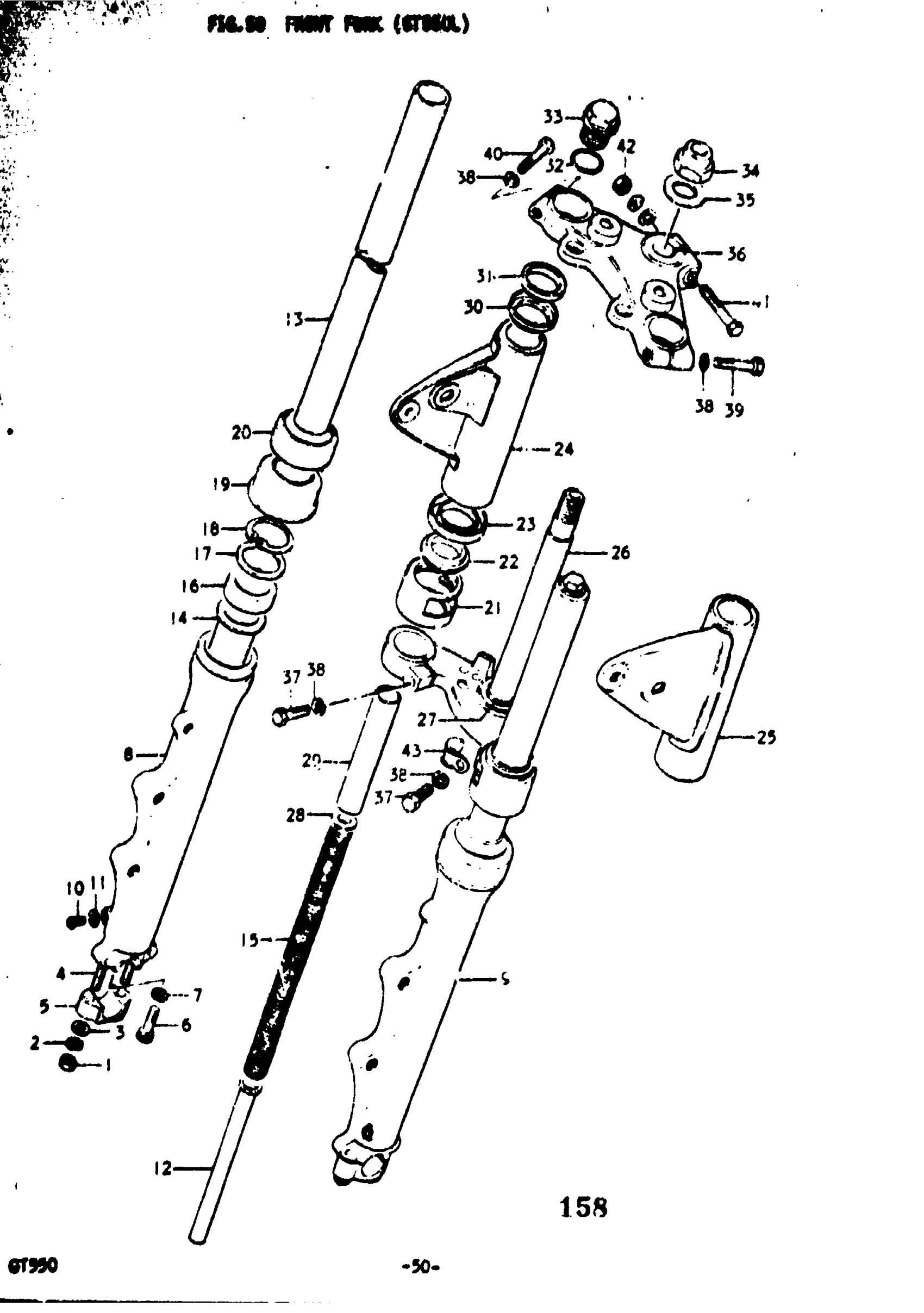

1977 Suzuki GT550 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

FORK ASSY, FRONT | Includes Item(s) 1 - 11

51100-34110-019

1
Out of stock

1

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

4
Out of stock

2

.LOCK WASHER This part replaces 08321-21088.

08321-01087

5
Out of stock

3

WASHER This part replaces 08322-21088.

08322-01087

5
Out of stock

4

STUD BOLT (L:30) This part replaces 51137-31010.

09108-08142

4
Out of stock

5

HOLDER, AXLE

51132-31010

2
Out of stock

6

BOLT, CYLINDER This part replaces 51147-31010.

51147-36010

2
Out of stock

7

O RING This part replaces 51148-34010.

51148-36011

2
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 51131-34710.

51131-34710-111

1
Out of stock

9

OUTER TUBE, LH

51131-34010

1
Out of stock

10

SCREW This part replaces 02111-04087.

02112-04087

2
Out of stock

11

GASKET

51183-03010

2
Out of stock

12

LOCK PIECE, OIL | Includes Item(s) 13 - 43

51146-34010

2
Out of stock

13

INNER TUBE

51110-34011

2
Out of stock

14

SLIDE METAL

51152-34010

2
Out of stock

15

SPRING

51171-34110

2
Out of stock

16

OIL SEAL

51153-34010

2
Out of stock

17

WASHER

51158-34010

2
Out of stock

18

SNAP RING

51156-34010

2
Out of stock

19

DUST SEAL

51557-34110

2
Out of stock

20

DOVER

51572-34110

2
Out of stock

21

COVER, STERING STEM

51575-33110

2
Out of stock

22

GASKET

51553-31010

2
Out of stock

23

SEAT, HEADLAMP BRACKET This part replaces 51551-31010.

51551-31000

2
Out of stock

24

COVER, FORK RH | FROM 51530-34110

51530-34111

1
Out of stock

25

COVER, FORK LH | FROM 51540-34110

51540-34111

1
Out of stock

26

STEM, STEERING | TO 51410-15210

51410-34110

—
Out of stock

27

OUTER RACE

51621-33001

1
Out of stock

28

GUIDE, SPRING

51172-34110

—
Out of stock

29

SPACER

51176-34110

—
Out of stock

30

CAP This part replaces 51555-31010.

51555-31000

2
Out of stock

31

GASKET

51556-31010

2
Out of stock

32

O RING

51181-18510

2
Out of stock

33

CAP

51351-31010

2
Out of stock

34

NUT

51353-31710

1
Out of stock

35

WASHER

51356-11010

1
Out of stock

36

NO DESCRIPTION AVAILABLE This part replaces 51311-34010-019.

51300-15810-019

1
Out of stock

37

BOLT This part replaces 01122-10408.

01500-10407

2
Out of stock

38

LOCK WASHER This part replaces 08321-21108.

08321-01107

4
Out of stock

39

BOLT This part replaces 01121-10407.

01500-10407

1
Out of stock

40

BOLT

51451-34710

1
Out of stock

41

BOLT This part replaces 01122-08508.

01500-08507

1
Out of stock

42

NUT This part replaces 08312-11088.

08310-00087

1
Out of stock

43

CLIP

34991-18110

—
Out of stock
