1977 Suzuki GT550 Gear Shifting Diagram

← All diagrams

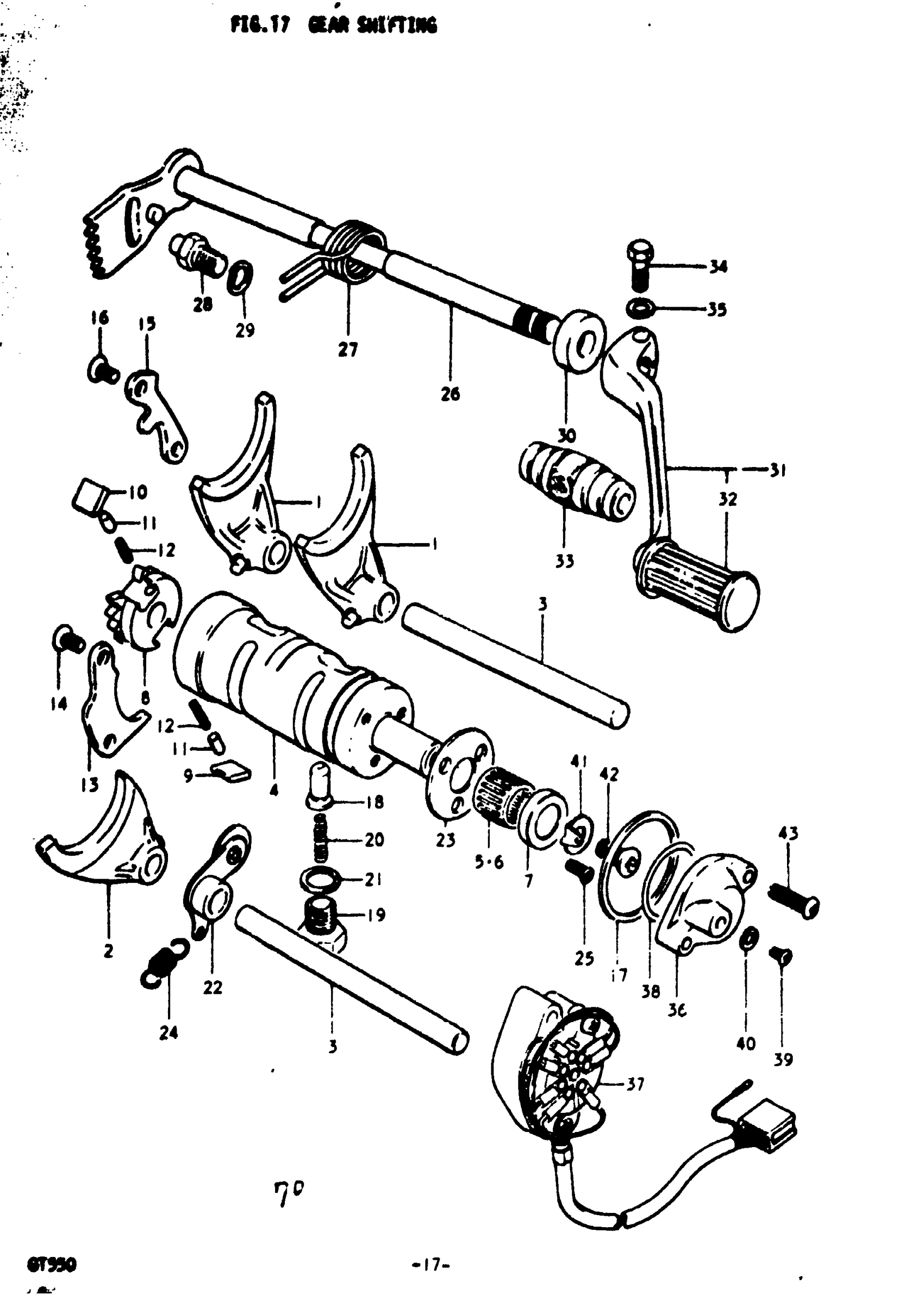

Find the part on the Gear Shifting diagram for your 1977 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT550 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING (1) | K,L,M,A,B

25211-34000

2
Out of stock

2

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 25231-34000.

25231-34X00

1
Out of stock

3

SHAFT, GEAR SHIFT FORK NO.1 | K,L,M,A,B This part replaces 25411-31000.

25411-18900

2
Out of stock

4

CAM, SHIFTING | K; TO 25310-31910 This part replaces 25310-31000.

25310-31910

1
Out of stock

4

CAM, SHIFTING | L,M,A,B

25310-31910

1
Out of stock

5

BEARING | K,L,M

09263-16006

1
Out of stock

6

BEARING | M,A,B

09263-16012

1
Out of stock

7

OIL SEAL | M,A,B

09284-16002

1
Out of stock

8

GEAR, GEAR SHIFT CAM DRIVEN | K,L,M,A,B This part replaces 25322-11000.

25322-31310

1
Out of stock

9

PAWL, GEAR SHIFT NO.1 | K,L,M,A,B This part replaces 25323-11000.

25323-34201

1
Out of stock

10

PAWL, GEAR SHIFT NO.2 | K,L,M,A,B This part replaces 25324-11000.

25324-34201

1
Out of stock

11

PIN | K,L,M,A,B

09261-05003

2
Out of stock

12

SPRING | K,L,M,A,B

09440-04003

2
Out of stock

13

LIFTER, SHIFTING PAWL | K,L,M,A,B

25331-11001

1
Out of stock

14

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

2
Out of stock

15

GUIDE, SHIFTING CAM | K,L,M,A,B

25341-31000

1
Out of stock

16

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

2
Out of stock

17

THRUST WASHER | K,L,M,A,B; 40x45x1

09160-40001

1
Out of stock

18

STOPPER, GEAR SHIFT CAM NO.2 | K,L,M; L:20.3 TO 25351-30010 This part replaces 25351-30000.

25351-30010

1
Out of stock

18

STOPPER, GEAR SHIFT CAM NO.2 | M,A,B; L:21.5

25351-30010

1
Out of stock

19

HOLDER, STOPPER SPRING | K,L,M,A,B

25354-30000

1
Out of stock

20

SPRING | K,L,M,A,B

09440-06014

1
Out of stock

21

WASHER | K,L,M,A,B; 15.7x19.5x2

09168-14004

1
Out of stock

22

STOPPER, SHIFTING CAM | K,L,M,A,B

25350-34000

1
Out of stock

23

PLATE, CAM STOPPER | K,L,M,A This part replaces 25381-20000.

25381-20001

1
Out of stock

23

PLATE, SHIFTING CAM STOPPER | B

25381-20001

1
Out of stock

24

SPRING | K,L,M,A,B

09443-08012

1
Out of stock

25

3

$2.10

In stock

26

SHAFT, GEAR SHIFTING | K,L,M,A,B

25510-34000

1
Out of stock

27

SPRING | K,L

09444-26001

1
Out of stock

27

SPRING | M,A,B This part replaces 09444-26012.

09444-26013

1
Out of stock

28

STOPPER, ARM | K,L,M,A,B This part replaces 25671-01000.

25671-01011

1
Out of stock

30

OIL SEAL (12X22X9) | K,L,M,A,B This part replaces 09285-12002.

09285-12006

1
Out of stock

31

LEVER ASSY, GEAR SHIFTING | K; TO 25600-33002

25600-33001

—
Out of stock

31

LEVER ASSY, GEAR SHIFTING | L,M,A,B; FROM 25600-33002; Includes Item(s) 32 - 33 This part replaces 25600-33003.

25600-44000

1
Out of stock

32

.RUBBER,GEAR SHIFT PEDAL | K This part replaces 25652-03201.

25652-16510

1
Out of stock

33

.RUBBER,GEAR SHIFT PEDAL | L,M,A,B This part replaces 25652-16500.

25652-16510

1
Out of stock

34

BOLT, REAR | K,L,M,A,B This part replaces 01122-08208.

01500-08207

1
Out of stock

36

BODY, GEAR SHIFTING SWITCH | K

37721-15002

1
Out of stock

37

SWITCH ASSY, GEAR SHIFTING | L; TO 37710-33111

37710-33110

—
Out of stock

37

SWITCH ASSY, GEAR SHIFTING | M; TO 37118-33112 This part replaces 37710-33111.

37710-33112

1
Out of stock

37

SWITCH ASSY, GEAR SHIFTING | M,A,B

37710-33112

1
Out of stock

38

O RING | K,L,M,A,B

09280-28002

1
Out of stock

39

SCREW | K This part replaces 02111-03048.

02112-03047

1
Out of stock

40

WASHER | K This part replaces 08322-21038.

08322-01037

1
Out of stock

41

CONTACT, SWITCH | K; TO 37711-05101 This part replaces 37711-05100.

37711-05101

1
Out of stock

41

CONTACT, GEAR SHIFTING SWITCH | K

37711-05101

1
Out of stock

42

SCREW | K This part replaces 02122-06128.

02122-06127

1
Out of stock

43

SCREW | K,L,M,A,B This part replaces 02111-05207.

02112-05207

2
Out of stock
