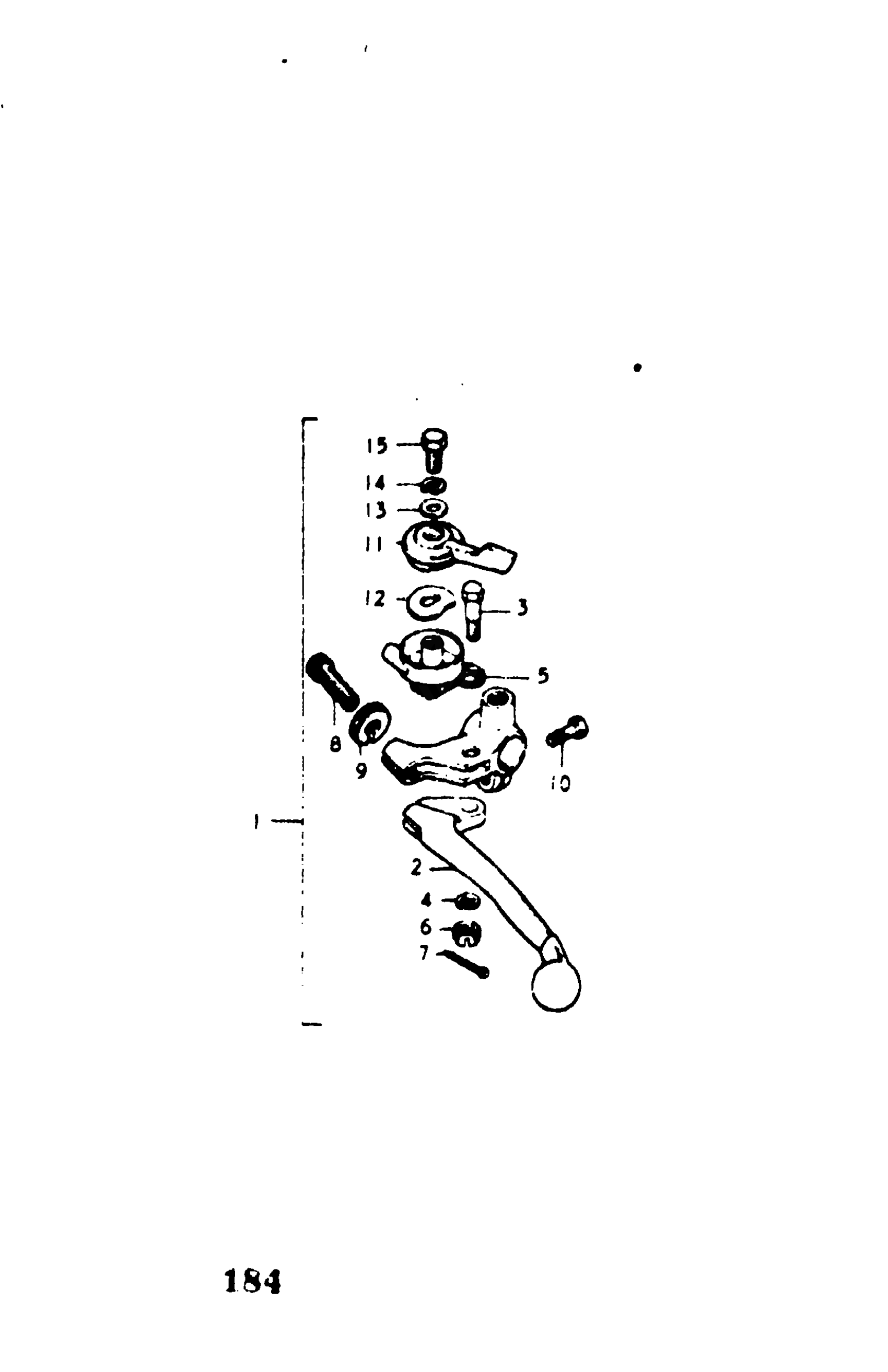

Suzuki GT550 (1977) CLUTCH LEVER Diagram

#

Description
Price

1

LEVER ASSY, CLUTCH | K; TO 57500-31600

57500-33010

Unavailable

1

NO DESCRIPTION AVAILABLE | K; TO 57500-31601 SEE NOTE This part replaces 57500-31600.

57500-31601

Unavailable

1

LEVER ASSY, CLUTCH | L; TO 57500-18601

57500-18600

Unavailable

1

LEVER ASSY, CLUTCH | M,A,B; Includes Item(s) 2 - 15 This part replaces 57500-18601.

57500-45010

Unavailable

2

LEVER, CLUTCH This part replaces 57620-31010.

57620-45010

Unavailable

3

BOLT, LEVER PIVOT | K

57431-31010

$10.52

3

BOLT | L,M,A,B This part replaces 57431-11010.

57431-11013

$5.95

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

5

BODY, STARTER LEVER | K; USE FOR 57500-33000 This part replaces 58710-31010.

58710-31600

Unavailable

5

BODY, STARTER LEVER | K; USE FOR 57500-31600

58710-31600

Unavailable

6

NUT, PIVOT

57433-11010

$5.32

7

PIN This part replaces 04111-16158.

04111-1620A

$0.96

8

ADJUSTER, CABLE

57441-11010

$5.14

9

NUT, CABLE ADJUSTER

57442-11010

$2.80

10

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$1.99

11

LEVER, STARTER | K

58721-03010

Unavailable

12

WASHER, ADJUSTER | K

58722-03010

$3.50

13

.WASHER (6.5X16X1) | K This part replaces 58723-03010.

09160-06129

$2.50

14

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$1.83

15

BOLT | K This part replaces 01112-06128.

01500-06127

$1.97
