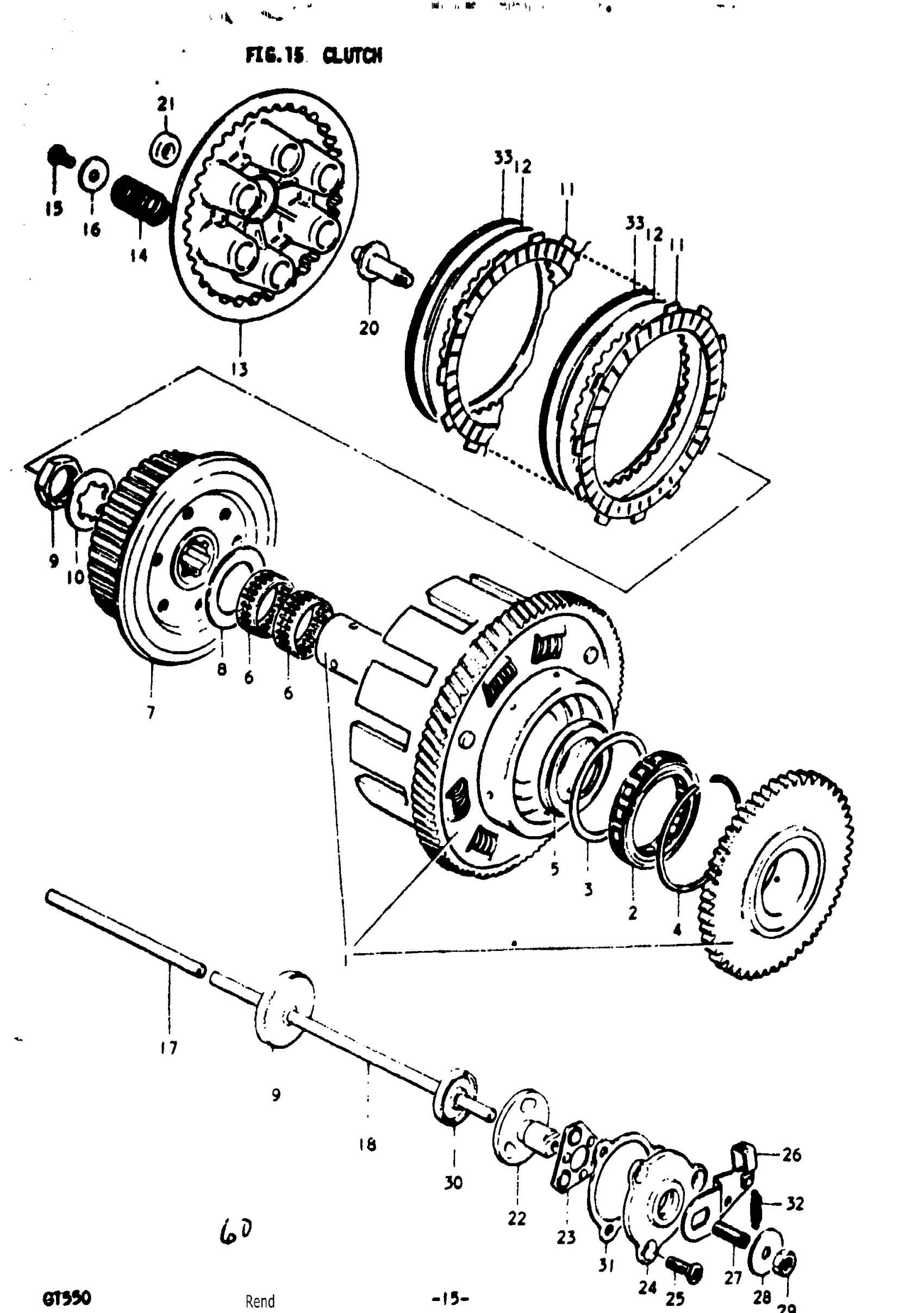

Suzuki GT550 (1977) CLUTCH Diagram
#
NO DESCRIPTION AVAILABLE | K,L,M,A,B; Includes Item(s) 1 - 7 This part replaces 21200-34830.
21200-34831
Unavailable
1
STARTER CLUTCH GEAR ASSY | K,L,M,A This part replaces 21200-34820.
21200-34821
Unavailable
1
STARTER CLUTCH GEAR ASSY | B
21200-34821
Unavailable
2
ONE WAY CLUTCH ASSY | K,L,M,A,B
12650-34020
Unavailable
3
WASHER | K,L,M,A,B
09160-64001
Unavailable
4
CIRCLIP | K,L,M,A,B
09381-71001
Unavailable
5
THRUST BEARING | K,L,M,A,B
09263-38003
Unavailable
6
NEEDLE BEARING | K,L,M,A,B
09263-38005
Unavailable
7
HUB, CLUTCH SLEEVE | K,L,M,A,B
21411-34001
Unavailable
8
THRUST WASHER | K,L,M,A,B
08211-22503
Unavailable
9
NUT | K,L,M,A,B
09140-22003
Unavailable
10
WASHER | K,L,M,A,B; 18.5x40x0.8
09167-22005
Unavailable
11
PLATE, DRIVE | K,L,M,A,B This part replaces 21441-34000.
21441-37001
Unavailable
12
PLATE, CLUTCH DRIVEN | K,L,M,A,B
21451-34000
Unavailable
13
DISK, CLUTCH PRESSURE | K,L,M,A,B
21462-34000
Unavailable
14
SPRING | K,L,M,A,B This part replaces 09440-19003.
09440-19027
Unavailable
16
WASHER (6.5X20X1.6) | K,L,M,A,B; 6.5x20x1.6 This part replaces 09160-06020.
09160-06066
Unavailable
17
ROD, CLUTCH PUSH (1) | K,L,M,A,B; 8x138.5
23111-15001
Unavailable
18
ROD, CLUTCH PUSH (2) | K,L,M,A,B; 8x189.5
23111-34000
Unavailable
19
SEAL,OIL(8X47X7 | K,L,M,A,B; 8x47x7 This part replaces 09285-08004.
09285-08008
Unavailable
20
PIECE, CLUTCH PUSH | K,L,M,A,B
23121-34000
Unavailable
21
OIL SEAL | K,L,M,A,B; 10x17x5
09284-10002
Unavailable
22
BEARING, RELEASE OUTER | K,L; TO 23211-34001
23211-34000
Unavailable
22
BEARING, RELEASE OUTER | M,A,B
23211-34001
Unavailable
23
BALL, RELEASE | K,L,M,A,B This part replaces 23250-31001.
23250-31003
Unavailable
24
GUIDE, INNER BALL | K,L; TO 23231-34001
23231-34000
Unavailable
24
GUIDE, INNER BALL | M,A,B
23231-34001
Unavailable
25
SCREW | K,L,M This part replaces 02122-06258.
02122-0625A
Unavailable
25
SCREW | A,B This part replaces 02122-06208.
02122-0620A
Unavailable
26
ARM, CLUTCH RELEASE | K,L,M,A,B
23220-34001
Unavailable
27
SCREW | K,L,M,A,B
09134-08006
Unavailable
28
WASHER | K,L,M,A,B; 8.5x26x1.2
09160-08032
Unavailable
30
DUST SEAL | K,L,M,A,B
09285-08001
Unavailable
31
GASKET,BALL GUI | K,L,M,A,B This part replaces 23291-34000.
23291-34010
Unavailable
32
SPRING | K,L,M,A,B
09443-08001
Unavailable
33
V RING | K,L This part replaces 09280-00004.
21481-40A00
Unavailable
