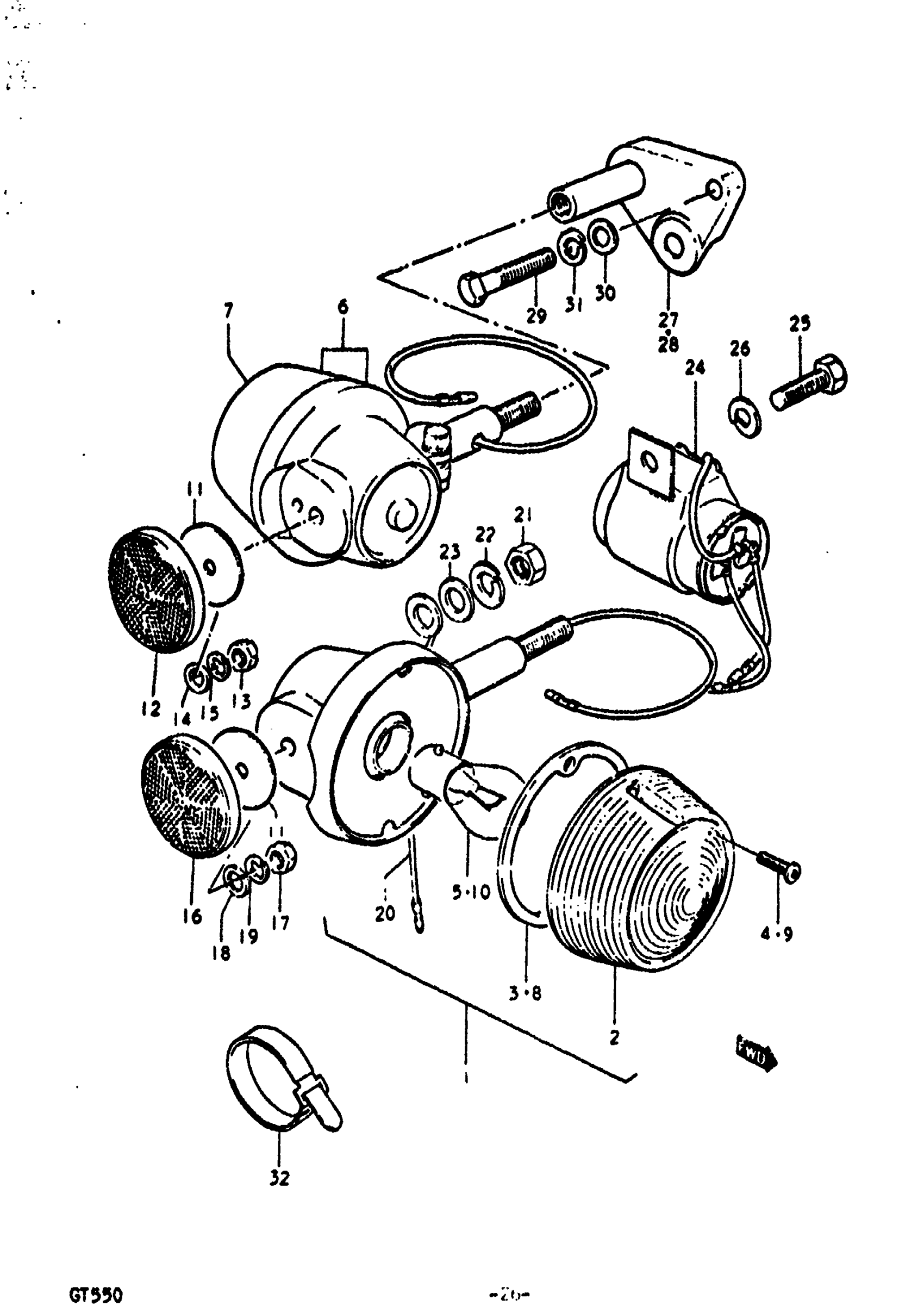

Suzuki GT550 (1972) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | FROM 35601-31010-999; Includes Item(s) 2 - 5

35601-31010

Unavailable

2

LENS

35612-31010

Unavailable

3

GASKET

35613-03610

$13.34

4

SCREW This part replaces 02111-03168.

02112-0316B

$2.35

5

BULB | 12V, 32CP

09471-12006

$3.98

6

NO DESCRIPTION AVAILABLE | FROM 35600-31830; Includes Item(s) 7 - 10 This part replaces 35603-31010.

35603-31010-999

Unavailable

7

LENS

35652-31610

Unavailable

8

GASKET

35613-03610

$13.34

9

SCREW This part replaces 02111-03168.

02112-0316B

$2.35

10

BULB | 12V, 32CP

09471-12006

$3.98

11

CUSHION

35656-31010

Unavailable

12

REFLEX REFLECTOR, REAR | FROM 35970-31610

35970-31610

Unavailable

13

NUT This part replaces 08311-11058.

08310-00057

$1.84

14

WASHER (5.5X18X1) | 5.5x18x1 This part replaces 09160-05003.

09160-05045

$1.93

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

16

REFLEX REFLECTOR FRONT | FROM 35950-31010 This part replaces 35950-31010.

35950-49080

$17.24

17

NUT This part replaces 08311-11058.

08310-00057

$1.84

18

WASHER (5.5X18X1) | 5.5x18x1 This part replaces 09160-05003.

09160-05045

$1.93

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

WIRE, EARTH LEAD

36660-33000

$4.52

21

NUT This part replaces 08311-11108.

08310-00107

$2.19

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

WASHER This part replaces 08322-21108.

08322-01107

$2.15

24

TURN SIGNAL REL | FROM 38610-15611 This part replaces 38610-32210.

38610-322V0

Unavailable

25

BOLT This part replaces 01112-06128.

01500-06127

$1.97

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

BRACKET, TURN SIGNAL LAMP RH

41640-33001

Unavailable

28

BRACKET, TURN SIGNAL LAMP LH

41650-33001

Unavailable

29

BOLT This part replaces 01111-10207.

01500-1020B

$3.16

30

WASHER This part replaces 08322-21108.

08322-01107

$2.15

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

32

CLAMP | FROM 09407-09302

09407-09401

Unavailable

33

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.28
