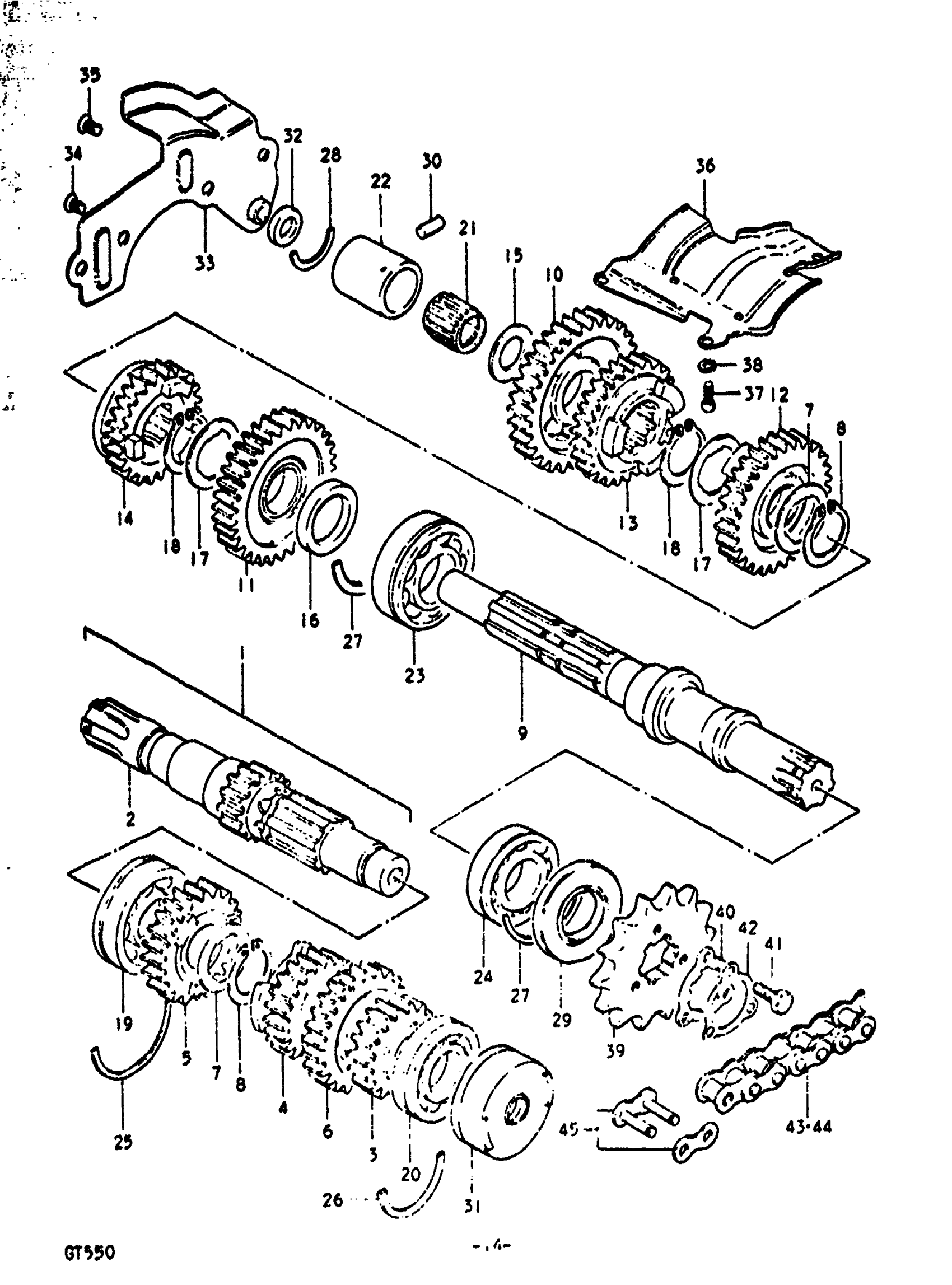

Suzuki GT550 (1972) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | FROM 24120-34000; Includes Item(s) 2 - 8

24120-34001

Unavailable

2

COUNTERSHAFT | NT:13

24121-34000

Unavailable

3

GEAR, 2ND DRIVE (NT:18) | NT:19 This part replaces 24221-31000.

24221-49001

Unavailable

4

GEAR, 3RD DRIVE | NT:22

24231-31000

Unavailable

5

GEAR, 4TH DRIVE | NT:24 This part replaces 24240-31000.

24240-49000

Unavailable

6

GEAR, 5TH DRIVE | NT:26 FROM 24250-31000

24250-31001

Unavailable

7

WASHER

09167-28001

$4.60

8

CIRCLIP | FROM 09380-28002 This part replaces 08331-11289.

08331-31289

$2.19

9

DRIVESHAFT

24131-34000

Unavailable

10

GEAR SET, 1ST DRIVEN | NT:37 This part replaces 24310-31940.

24310-31821

Unavailable

11

GEAR SET, 2ND DRIVEN | NT:33 This part replaces 24320-31000.

24300-37810

Unavailable

12

GEAR, 3RD DRIVEN | NT:30 This part replaces 24330-31000.

24330-37000

Unavailable

13

GEAR, 4TH DRIVEN | NT:27

24341-31000

Unavailable

14

GEAR, 5TH DRIVEN | NT:24 FROM 24351-31000

24351-31001

Unavailable

15

WASHER | 20x30.5x1

09160-20004

Unavailable

16

WASHER | 28x38x4

09160-28006

Unavailable

17

WASHER

09167-28001

$4.60

18

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

19

BEARING

09262-30022

Unavailable

20

B1 20X47X14 BEA This part replaces 08163-62040.

09262-20047

$34.92

21

BEARING

09263-20005

Unavailable

22

BEARING | FROM 09319-26002

09319-26001

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 08163-62063.

08163-62060

Unavailable

24

BEARING

08163-63050

Unavailable

25

C RING

09390-72004

Unavailable

26

C RING

09390-47003

Unavailable

27

C RING This part replaces 09390-62005.

09390-62009

$4.68

28

C RING

09390-32001

Unavailable

29

OIL SEAL

09283-25050

Unavailable

30

PIN This part replaces 06211-07122.

04221-07129

$1.86

31

PLUG, OIL RESERVOIR

24973-34000

Unavailable

32

OIL SEAL

09285-08003

Unavailable

33

PLATE, OIL RESERVOIR

24870-34000

Unavailable

34

SCREW This part replaces 02112-06128.

02112-06127

$1.84

35

SCREW This part replaces 02122-06128.

02122-06127

$1.84

36

PLATE, OIL GUIDE

24881-34000

Unavailable

37

SCREW This part replaces 02112-05168.

02112-05167

$1.97

38

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

39

SPROCKET, ENGINE | NT:16

27511-34000

Unavailable

39

SPROCKET, ENGINE | NT:15, OPT

27511-33600

Unavailable

40

PLATE, ENGINE SPROCKET

27512-33000

Unavailable

41

BOLT This part replaces 01112-06128.

01500-06127

$1.97

42

WASHER

09167-25008

Unavailable

43

CHAIN, DRIVE | FROM 27600-34010 #50HDSSx1082 This part replaces 27600-31015.

27600-15911

Unavailable

44

CHAIN ASSY, DRIVE | 4l, OPTOPT

27600-31700

Unavailable

45

COINT, CHAIN

27620-31012

Unavailable
