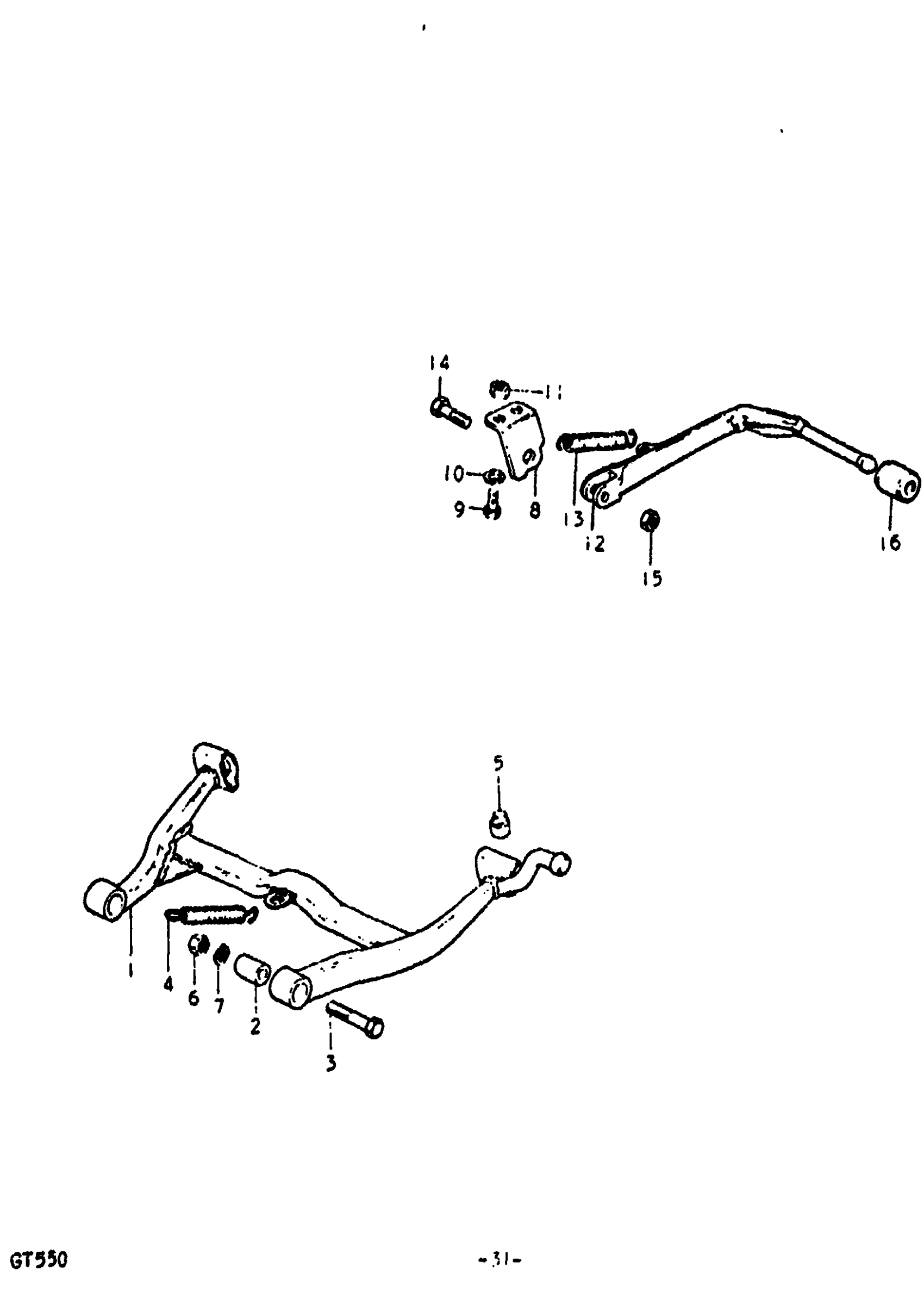

Suzuki GT550 (1972) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-31000

Unavailable

2

SPACER | 10.4x16x30

09180-10001

$3.58

3

BOLT | 10x48

09100-10006

Unavailable

4

SPRING This part replaces 09443-16005.

09443-16005-XC0

Unavailable

5

CUSHION

09321-10001

$2.61

6

NUT This part replaces 08312-12108.

08310-00107

$2.19

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

BRACKET, PROP STAND | FROM 42330-31000

42330-31600

Unavailable

9

BOLT This part replaces 09100-10007.

09100-10287

$3.48

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

11

NUT This part replaces 08312-32108.

08310-00107

$2.19

12

STAND, PROP

42310-31900

Unavailable

13

SPRING This part replaces 09443-14005.

09443-14017

$3.04

14

BOLT | 10x27 This part replaces 09100-10007.

09100-10287

$3.48

15

NUT This part replaces 08312-32108.

08310-00107

$2.19

16

CUSHION

09320-07001

$2.92
