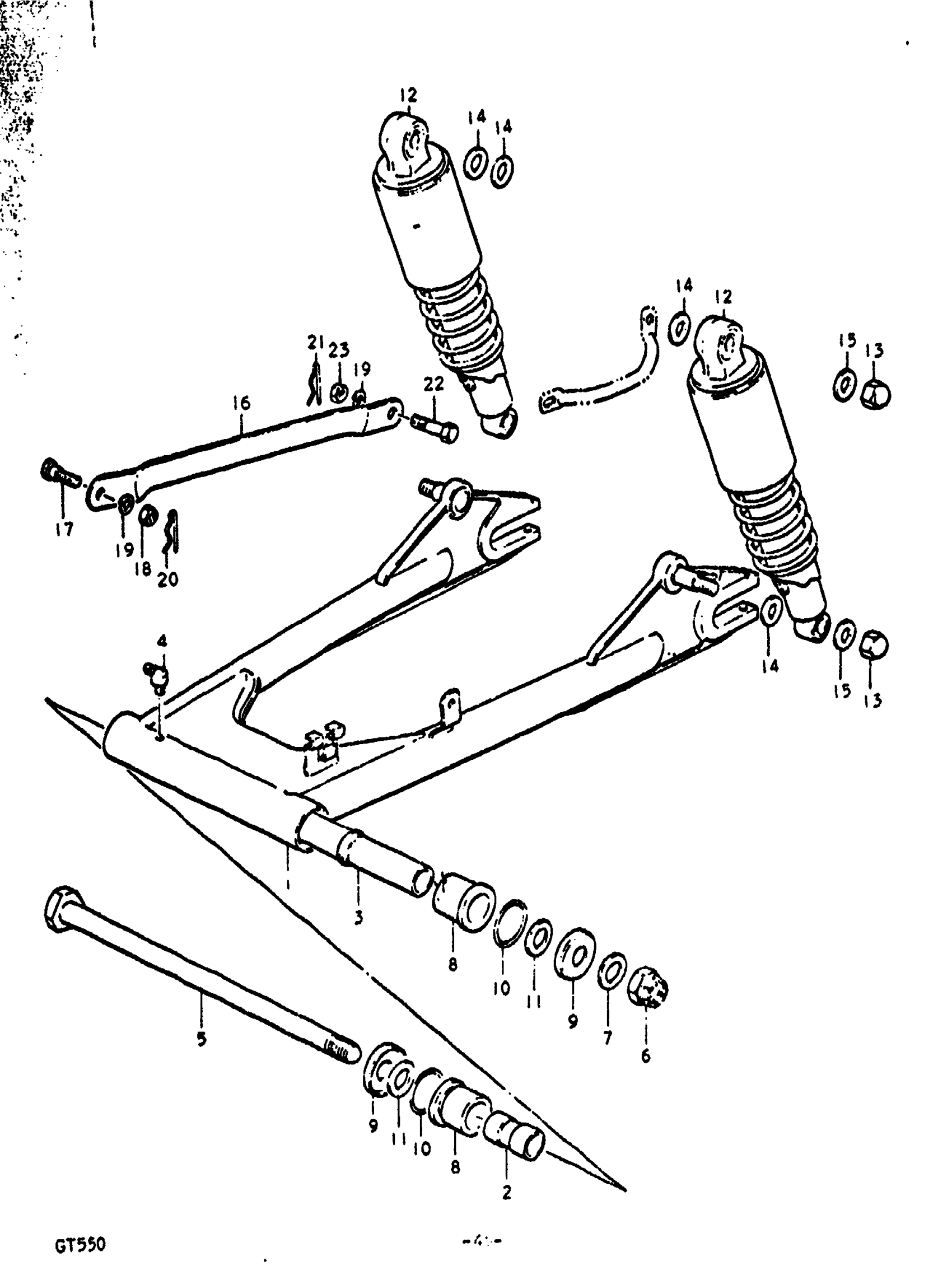

Suzuki GT550 (1972) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FROM 61100-34804-019; Includes Item(s) 2 - 4 This part replaces 61100-34810-019.

61100-34811-019

Unavailable

2

BUSHING

09307-22003

Unavailable

3

SPACER

61280-31000

Unavailable

4

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

5

SHAFT,RR SWGARM This part replaces 61211-31000.

61211-3100V

Unavailable

6

NUT

09159-14003

Unavailable

7

WASHER This part replaces 08322-11148.

08322-01147

$1.91

8

SPACER | FROM 61251-15000

61251-15001

Unavailable

9

COVER, DUST SEAL

61262-15000

$93.03

10

.O RING (D:3,ID:29.5)

09280-30001

$1.72

11

THRUST WASHER | 14.5x29x2.3

09160-14009

$2.82

12

ABSORBER ASSY, REAR SHOCK

62100-34030

Unavailable

13

NUT This part replaces 08313-11107.

08313-10107

$2.50

14

WASHER This part replaces 08322-11128.

08322-01127

$1.84

15

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

16

NO DESCRIPTION AVAILABLE This part replaces 64311-34000.

64311-34000-019

Unavailable

17

BOLT | TO 09111-10010 USED WITH 09385-10001

09119-10009

Unavailable

18

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

CLIP

09384-08001

Unavailable

21

CLIP This part replaces 09385-10001.

09385-10005

$1.56

22

BOLT

09101-10006

Unavailable

23

NUT This part replaces 08311-11108.

08310-00107

$2.19
