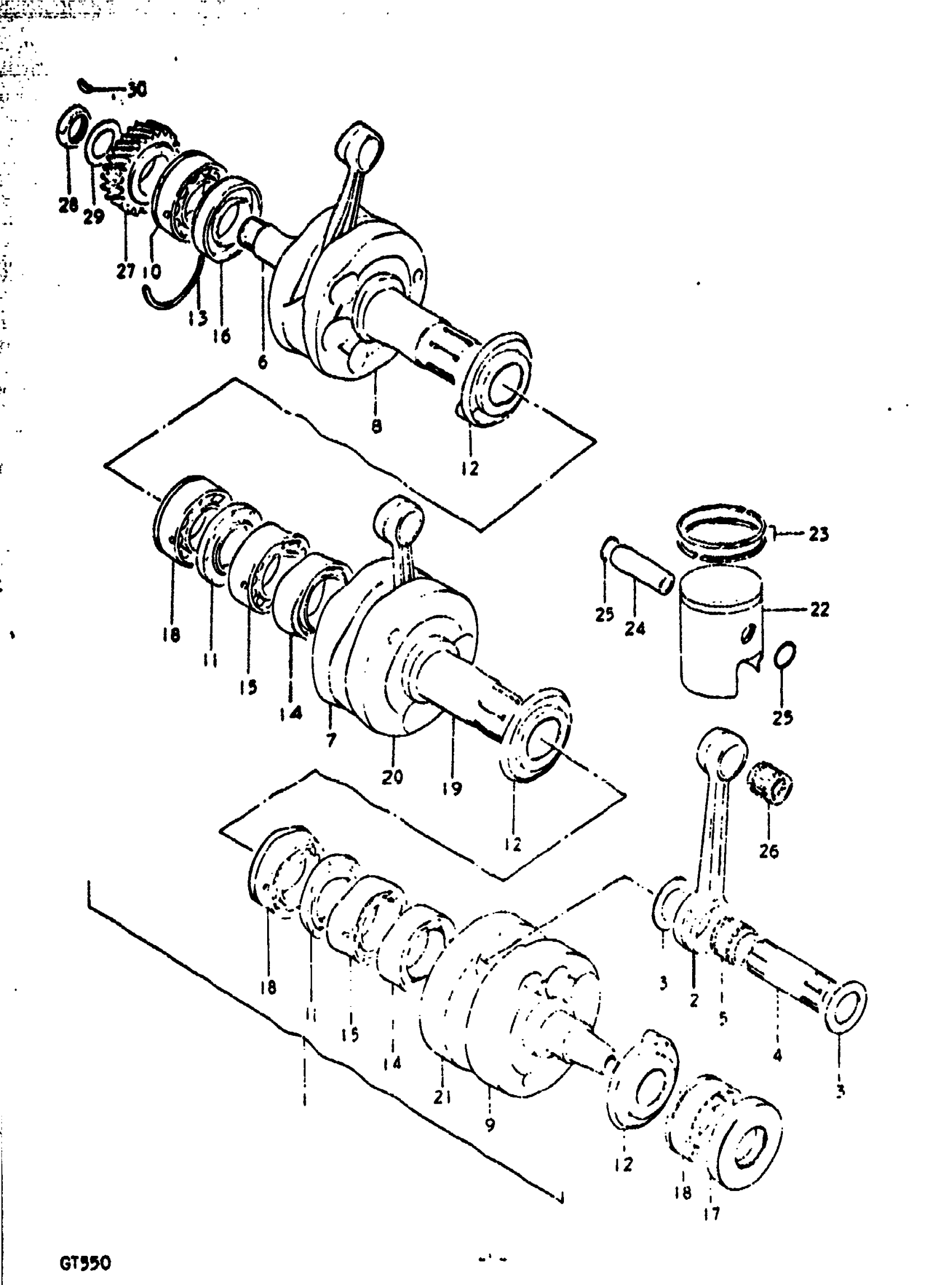

Suzuki GT550 (1972) PISTON - CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | FROM 12001-34802; Includes Item(s) 2 - 21

12200-34000

Unavailable

2

ROD, CONNECTING

12161-34000

Unavailable

3

THRUST WASHER

09160-22010

$5.57

4

PIN, CRANK

12211-29001

$38.85

5

RN 22X28X16 BRG This part replaces 09263-22006.

09263-22032

$23.45

6

CRANKSHAFT, RH

12221-34000

Unavailable

7

WEB, CRANK

12222-34000

Unavailable

8

CRANKSHAFT, MIDDLE

12231-34000

Unavailable

9

CRANKSHAFT, LH

12261-34000

Unavailable

10

BEARING

09262-25036

Unavailable

11

SPACER, CRANKSHAFT | FROM 12353-34010

12353-34011

Unavailable

12

PLATE, OIL GUIDE

12511-34000

Unavailable

13

C RING This part replaces 09390-62005.

09390-62009

$4.68

14

OIL SEAL | 38x62x9

09289-38006

Unavailable

15

B1 25X62X17 BEA This part replaces 09262-25034.

09262-25098

$63.88

16

OIL SEAL 32X62X | FROM 09283-32007 This part replaces 09289-32001.

09289-32004

Unavailable

17

OIL SEAL | 25x65.7x8.5

09283-25048

Unavailable

18

BEARING

09269-25010

Unavailable

19

CRANKSHAFT, MIDDLE | TO 12231-34000 This part replaces 12241-34000.

12231-34000

Unavailable

20

CRANKSHAFT, MIDDLE | TO 12231-34000 This part replaces 12242-34000.

12231-34000

Unavailable

21

CRANKSHAFT, MIDDLE | FROM 12252-34000 This part replaces 12242-34000.

12231-34000

Unavailable

22

PISTON This part replaces 12110-34000.

12110-34101

Unavailable

22

PISTON | OS:0.5

12110-34700

Unavailable

22

PISTON | OS:1.0

12110-34710

Unavailable

23

RING SET, PISTON | FROM 12140-34030

12140-34031

Unavailable

23

RING SET, PISTON | OS:0.5 FROM 12140-34710

12140-34031-050

Unavailable

23

RING SET, PISTON | OS:1.0 FROM 12140-34720

12140-34031-100

Unavailable

24

PIN, PISTON This part replaces 12151-18000.

12151-60D00

$17.37

25

CIRCLIP

09381-16001

$1.67

26

RN 16X21X19.6BR This part replaces 09263-16005.

09263-16015

$15.54

27

GEAR, PRIMARY DRIVE | NT:32

21110-34000

Unavailable

28

NUT

09140-20007

Unavailable

29

WASHER

09164-20002

$3.70

30

KEY

09421-07001

Unavailable
