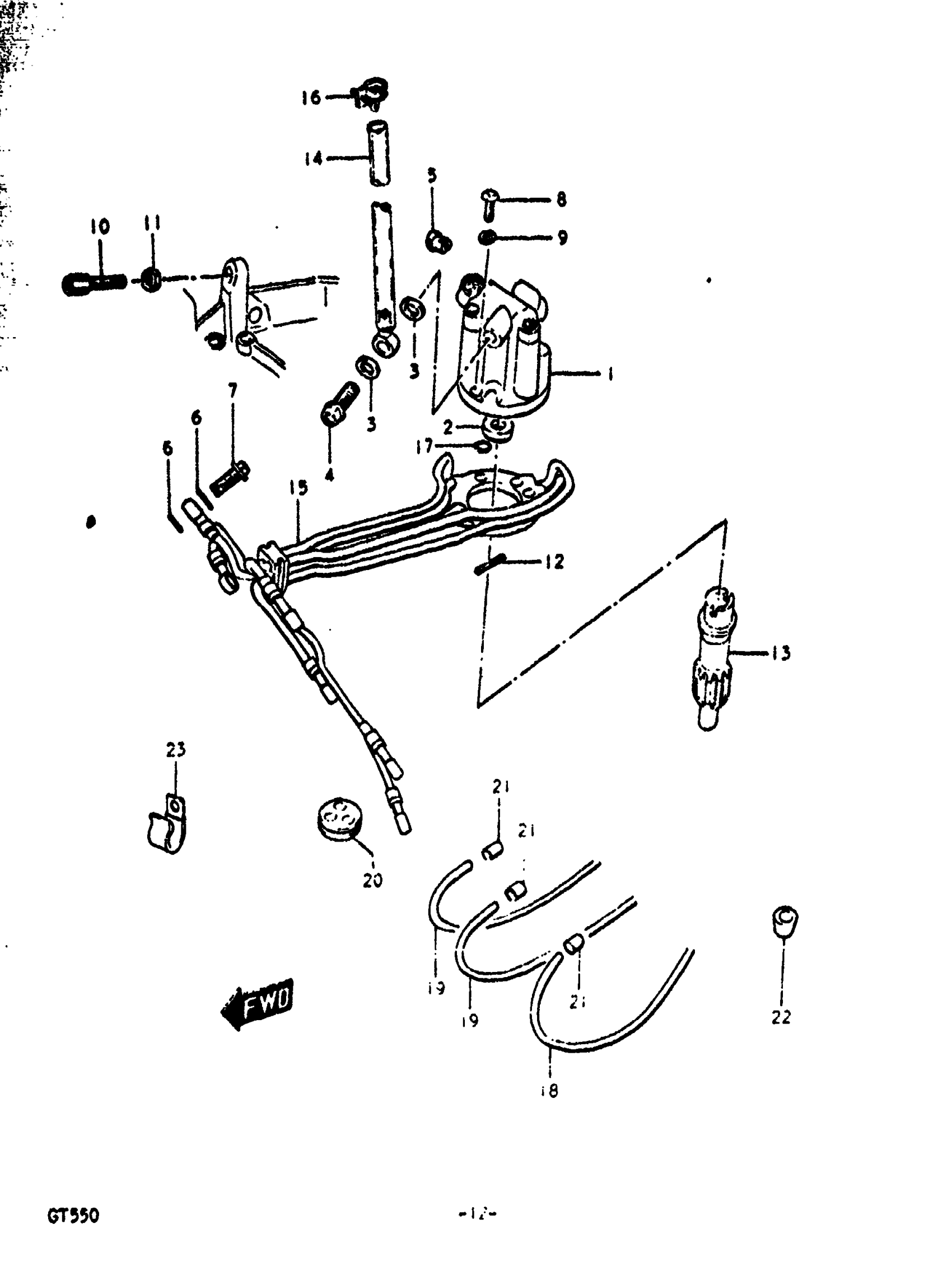

Suzuki GT550 (1972) OIL PUMP Diagram

#

Description
Price

1

PUMP SET, OIL | FROM 16001-34803; Includes Item(s) 2

16100-34001

Unavailable

2

OIL SEAL, OIL PUMP VA;VE

09285-08002

Unavailable

3

GASKET | 6.2x12x1.5 This part replaces 09168-06002.

09168-06004

$1.49

4

UNION BOLT | 6x15

09360-06003

$3.76

5

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

$5.05

6

GASKET | 6.2x12x1.5 This part replaces 09168-06002.

09168-06004

$1.49

7

UNION BOLT | 6x16

09360-06003

$3.76

8

SCREW This part replaces 02111-05257.

02112-05257

$1.49

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

BOLT | 8x47

09119-08014

$3.55

11

NUT This part replaces 08312-11088.

08310-00087

$2.13

12

PIN | 3x13.8

09261-03010

Unavailable

13

SHAFT, OIL PUMP DRIVE

16331-34000

Unavailable

14

HOSE, OIL (L:512!97) This part replaces 16810-05031.

16810-07520

Unavailable

15

HOSE, OIL (2)

16820-34030

Unavailable

16

OIL HOSE CLAMP | FROM 09400-00107 This part replaces 09400-10301.

09400-10302

Unavailable

17

O RING | ID:3.8, D:1.9

09280-03002

$1.49

18

HOSE(2X5X600) | 2x5x290 TO 09343-02009 This part replaces 09343-02008.

09352-20504-600

$6.70

19

HOSE(2X5X600) | 2x5x340 TO 09343-00059 This part replaces 09343-02009.

09352-20504-600

$6.70

20

GROMMET, SRIS

09309-05003

Unavailable

21

CLIP

09401-04401

$2.06

22

PAD,SRIS RUBBER

11151-16400

Unavailable

23

CLAMP This part replaces 09403-00049.

09404-08420

$3.16
