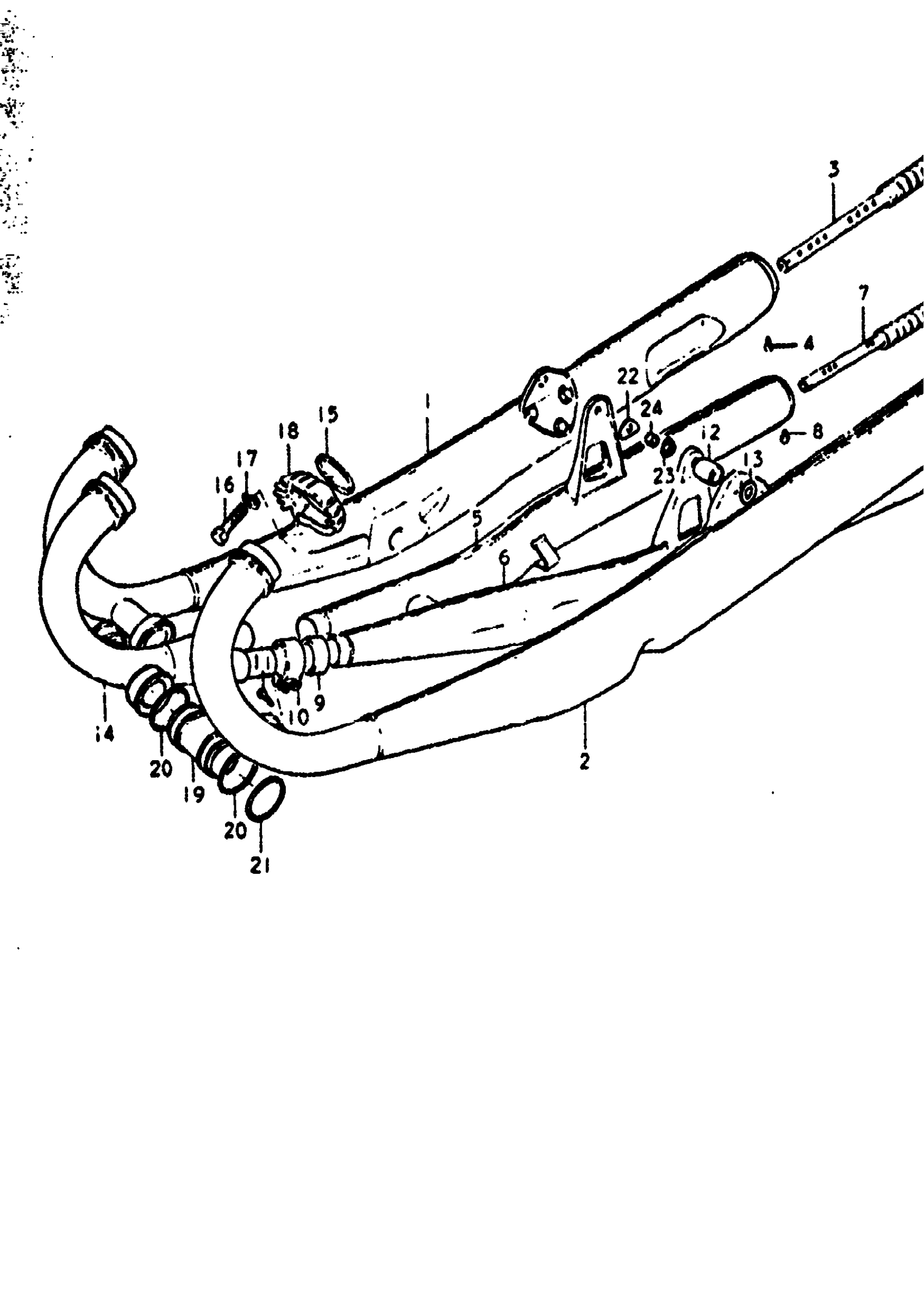

Suzuki GT550 (1972) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FROM 14301-34000 This part replaces 14301-34003.

14301-34003-H01

Unavailable

2

NO DESCRIPTION AVAILABLE | FROM 14302-34000; Includes Item(s) 3 - 4 This part replaces 14302-34003.

14302-34003-H01

Unavailable

3

PIPE, BAFFLE

14510-34000

Unavailable

4

SCREW This part replaces 02112-05068.

09125-05122

$2.06

5

NO DESCRIPTION AVAILABLE | FROM 14303-34000 This part replaces 14303-34002.

14303-34621-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | FROM 14304-34000; Includes Item(s) 7 - 8 This part replaces 14304-34002.

14304-34621-H01

Unavailable

7

PIPE, BAFFLE | FROM 14510-36000

14510-36100

Unavailable

8

SCREW This part replaces 02112-05068.

09125-05122

$2.06

9

CONNECTOR, MUFFLER

14771-06090

$10.14

10

CLAMP | FROM 09402-00048

09402-36708

Unavailable

11

SCREW This part replaces 02112-06208.

02112-06207

$1.78

12

BUSHING This part replaces 09319-10019.

09319-10009

$7.62

13

WASHER This part replaces 08322-21108.

08322-01107

$2.15

14

PIPE, EXHAUST CENTER | FROM 14170-34000

14170-34001

Unavailable

15

GASKET,EXHAUST This part replaces 14181-34010.

14181-34020

Unavailable

16

BOLT

01221-08358

Unavailable

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

CLAMP, EXHAUST PIPE

14182-34000

Unavailable

19

PIPE, EXHAUST COULIER

14211-31001

Unavailable

20

O-RING This part replaces 09280-44003.

09280-43002

$2.12

21

SEAL, EXHAUST COUDLER

99000-31020

Unavailable

22

CAMPER, SUPPORT BRACKET

14770-33000

Unavailable

23

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.03

24

SPACER

09180-10038

Unavailable
