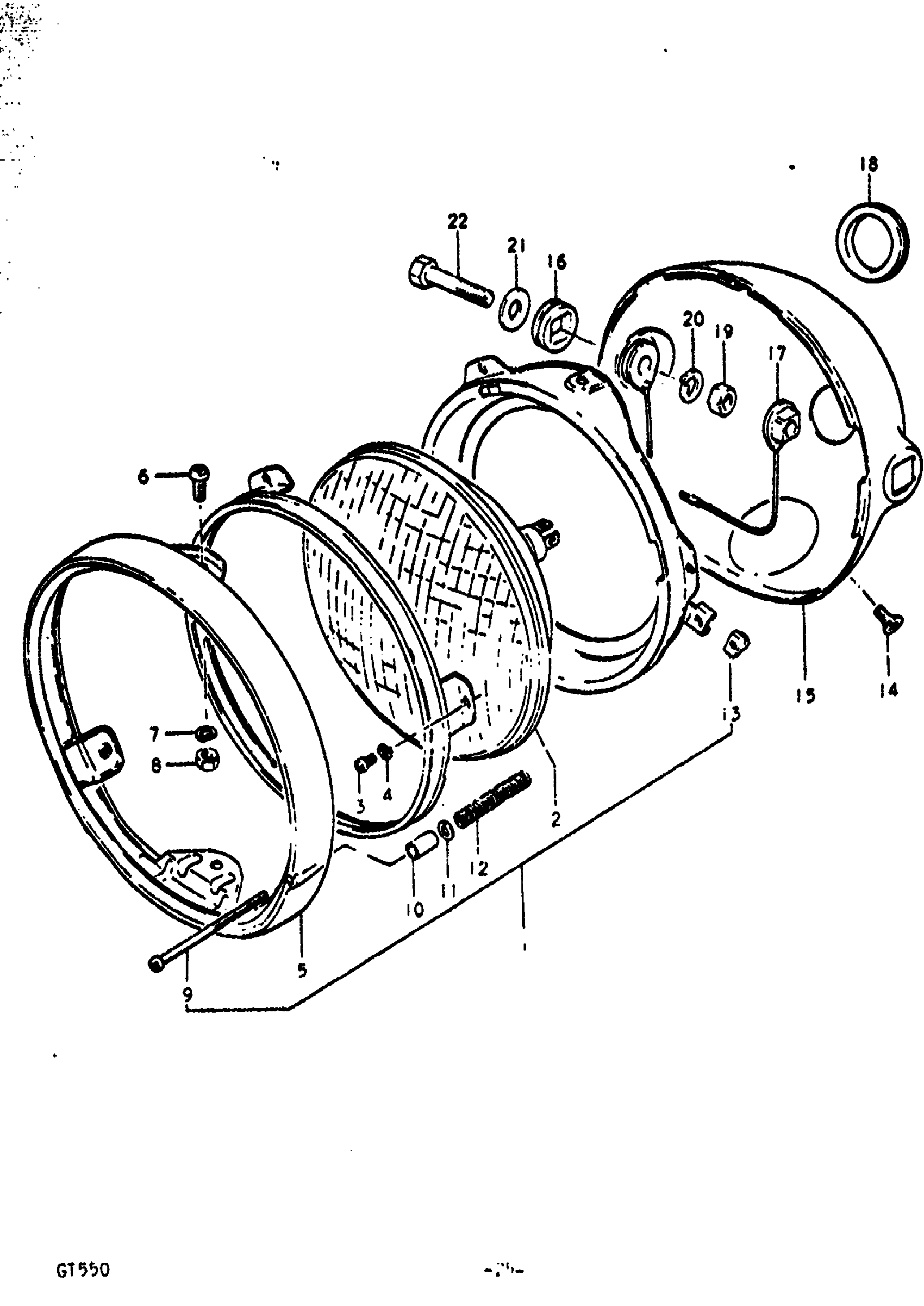

Suzuki GT550 (1972) HEADLAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 13

35100-34610

Unavailable

2

UNIT

35121-31610

Unavailable

3

SCREW This part replaces 02111-04087.

02112-04087

$1.49

4

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

5

RIM

35111-34030

Unavailable

6

SCREW

02112-05107

$1.49

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

NUT This part replaces 08311-11058.

08310-00057

$1.84

9

SCREW

35151-31610

Unavailable

10

SPACER

35165-31610

Unavailable

11

WASHER This part replaces 08322-21048.

08322-01047

$1.86

12

SPRING

35154-31610

Unavailable

13

NUT

35152-15611

$3.25

14

SCREW This part replaces 02231-05128.

02122-05127

$1.93

15

NO DESCRIPTION AVAILABLE | FROM 51810-34030-156 AND 51810-34031-156 This part replaces 51810-34130-156.

51810-34130-737

Unavailable

15

HOUSING, HEADLAMP | FROM 51810-34030-176 AND 51810-34031-176; Includes Item(s) 16 - 18 This part replaces 51810-34130-176.

51810-34130

Unavailable

16

CUSHION

51827-31030

Unavailable

17

SPACER

51821-31030

Unavailable

18

GROMMET | FROM 51845-31030

51845-31031

$4.52

19

NUT This part replaces 08312-12108.

08310-00107

$2.19

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

WASHER This part replaces 08322-11108.

08322-01107

$2.15

22

BOLT 10X30 CROW This part replaces 01221-10307.

01204-10307

$2.06
