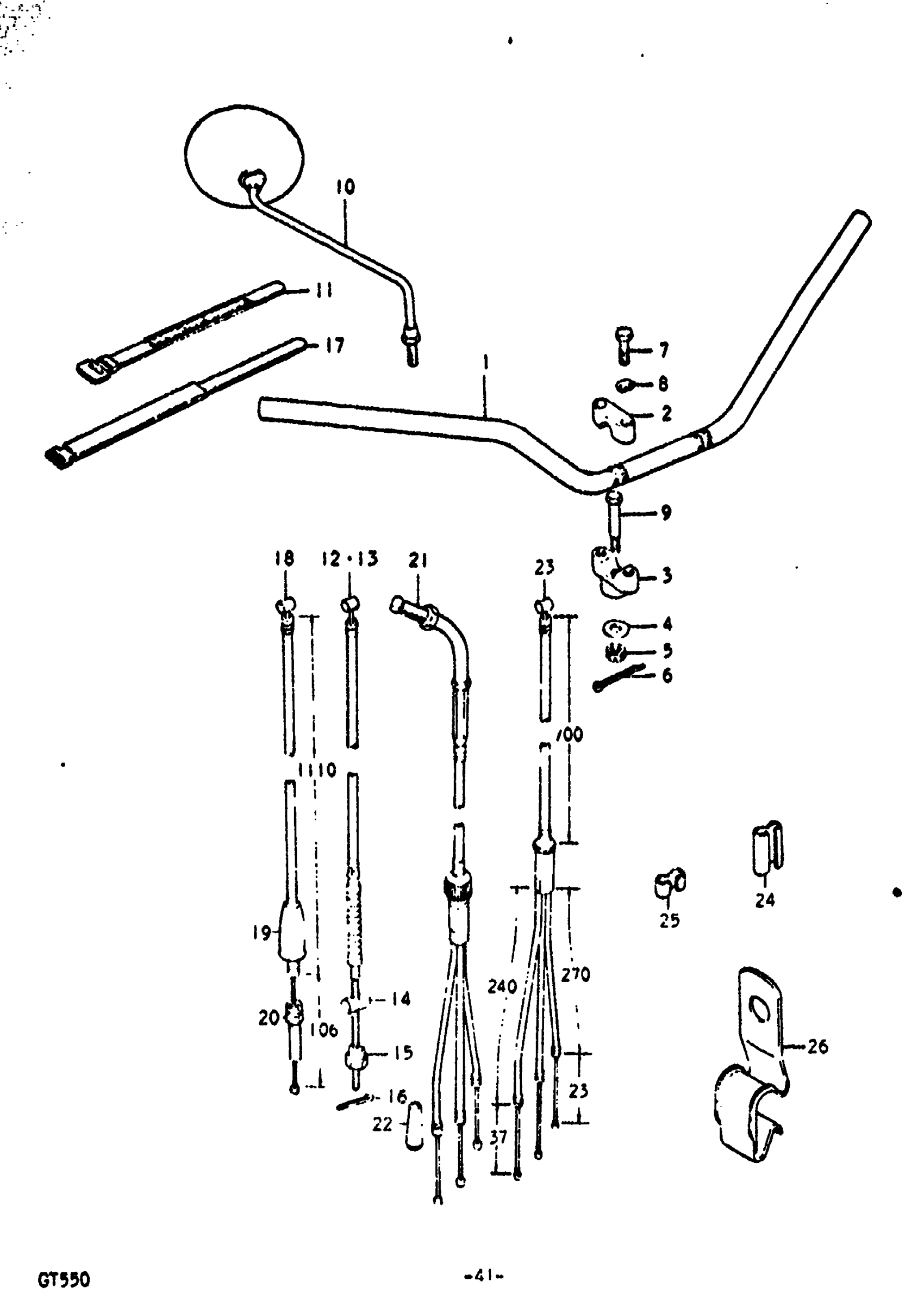

Suzuki GT550 (1972) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR

56111-33000

Unavailable

2

HOLDER, HANDLE, UPPER | FROM 56211-27100-019 This part replaces 56211-27200-019.

56211-27200-291

$17.90

3

HOLDER, HANDLE LOWER (BLACK) This part replaces 56221-33600.

56221-42A00-291

$45.38

4

WASHER | 10.5x28x2.3

09160-10035

$1.78

5

NUT This part replaces 08314-11108.

08314-3110A

$1.99

6

PIN This part replaces 04111-25308.

04111-2530A

$1.49

7

BOLT This part replaces 01221-08357.

01204-08357

$2.09

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

BOLT

09101-10015

Unavailable

10

MIRROR ASSY,RR | 8SCREW This part replaces 56500-31010.

56500-23412

$70.29

10

MIRROR ASSY,RR | 10SCREW This part replaces 56500-31011.

56500-31014

$48.02

10

MIRROR ASSY,RR | 8SCREW This part replaces 56600-31010.

56600-23412

$82.68

10

MIRROR ASSY,RR | 10SCREW This part replaces 56600-31011.

56600-31014

$48.02

11

BAND | L:123

09407-12402

$3.04

12

CABLE, FRONT BRAKE RH

58110-31000

Unavailable

13

CABLE, FRONT BRAKE LH

58110-31600

Unavailable

14

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

15

.NUT This part replaces 09150-06001.

09150-06010

$3.10

16

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

17

CLAMP(L:250) | L:210 FROM 09407-21301 This part replaces 09407-25301.

09407-25302

Unavailable

18

CABLE ASSY, CLUTCH | Includes Item(s) 19 - 20 This part replaces 58200-31000.

58200-31001

Unavailable

19

BOOT

09287-10001

Unavailable

20

NUT This part replaces 08312-11088.

08310-00087

$2.13

21

CABLE ASSY, THROTTLE This part replaces 58300-33000.

58300-33001

Unavailable

22

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

23

CABLE, STARTER

58400-31000

Unavailable

24

CLIP

09408-00001

Unavailable

25

CLIP | L:10

09408-00005

Unavailable

26

GUIDE, CABLE

58621-34000

Unavailable
