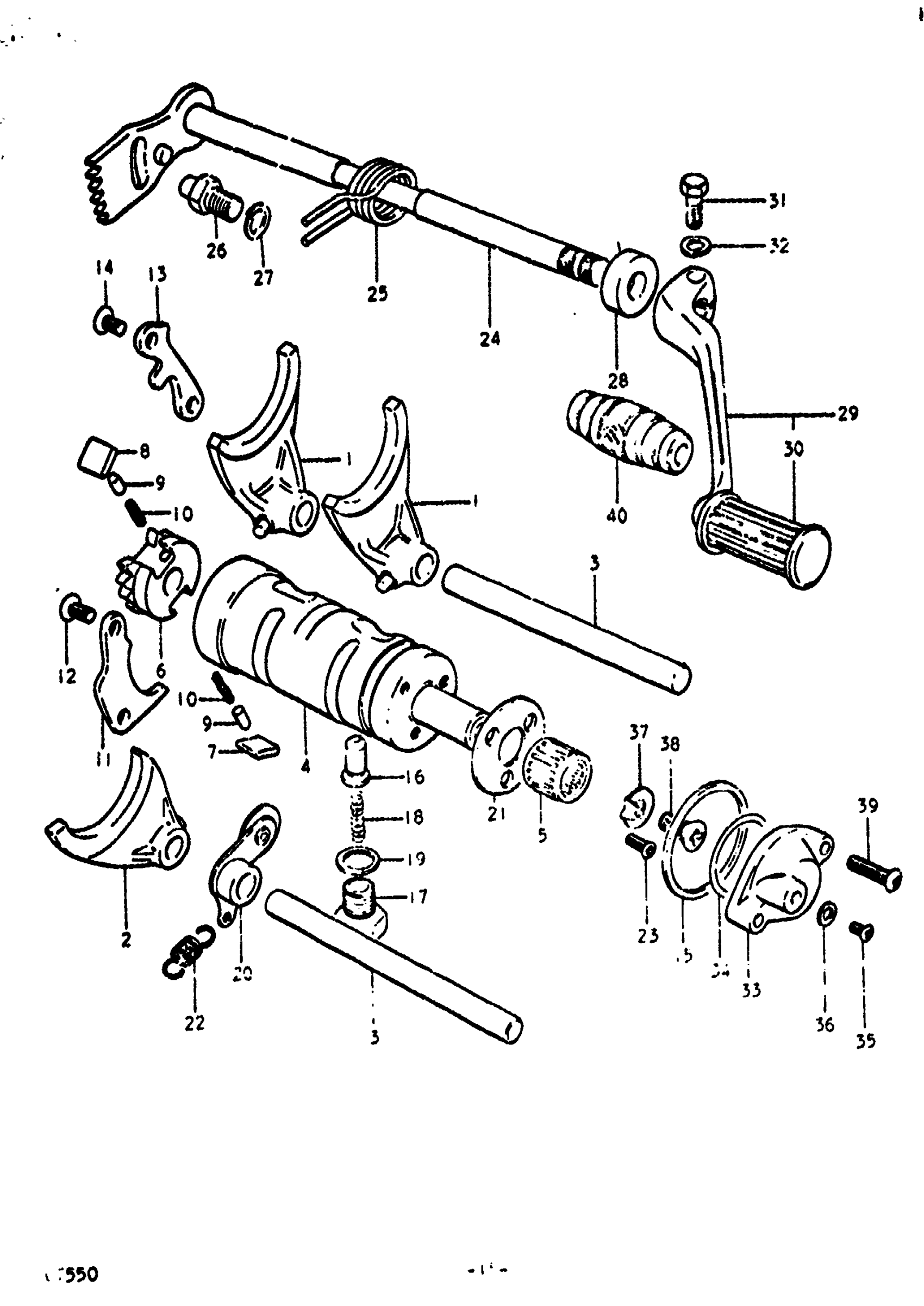

Suzuki GT550 (1972) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING (1)

25211-34000

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 25231-34000.

25231-34X00

Unavailable

3

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

$23.07

4

CAM, SHIFTING This part replaces 25310-31000.

25310-31910

Unavailable

5

BEARING

09263-16006

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, SHIFTING PAWL

25331-11001

$6.38

12

SCREW This part replaces 02122-06128.

02122-06127

$1.84

13

GUIDE, SHIFTING CAM

25341-31000

Unavailable

14

SCREW This part replaces 02122-06128.

02122-06127

$1.84

15

THRUST WASHER | 40x45x1

09160-40001

Unavailable

16

STOPPER, GEAR SHIFT CAM NO.2 | L:20.3 FROM 25351-30000

25351-30010

$11.95

17

HOLDER, STOPPER SPRING

25354-30000

$9.17

18

SPRING

09440-06014

Unavailable

19

WASHER | 15.7x19.5x2

09168-14004

$1.83

20

STOPPER, SHIFTING CAM

25350-34000

$15.42

21

PLATE, CAM STOPPER This part replaces 25381-20000.

25381-20001

Unavailable

22

SPRING

09443-08012

Unavailable

23

.SCREW This part replaces 02121-04127.

02122-0412A

$1.93

24

SHAFT, GEAR SHIFTING

25510-34000

Unavailable

25

SPRING

09444-26001

$5.88

26

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

29

LEVER ASSY, GEAR SHIFTING | FROM 25600-33001; Includes Item(s) 30 This part replaces 25600-33003.

25600-44000

Unavailable

30

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-03201.

25652-16510

$3.74

31

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

BODY, GEAR SHIFTING SWITCH

37771-15002

Unavailable

34

O RING

09280-28002

$2.08

35

SCREW This part replaces 02111-03048.

02112-03047

$2.15

36

WASHER This part replaces 08322-21038.

08322-01037

$1.93

37

CONTACT, SHIFTING SWITCH | FROM 37711-05100

37711-05101

$4.21

38

SCREW This part replaces 02122-06128.

02122-06127

$1.84

39

SCREW This part replaces 02111-05207.

02112-05207

$1.97

40

.RUBBER,GEAR SHIFT PEDAL | USED TO 25600-33003 This part replaces 25652-16500.

25652-16510

$3.74
