1972 Suzuki GT550 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1972 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

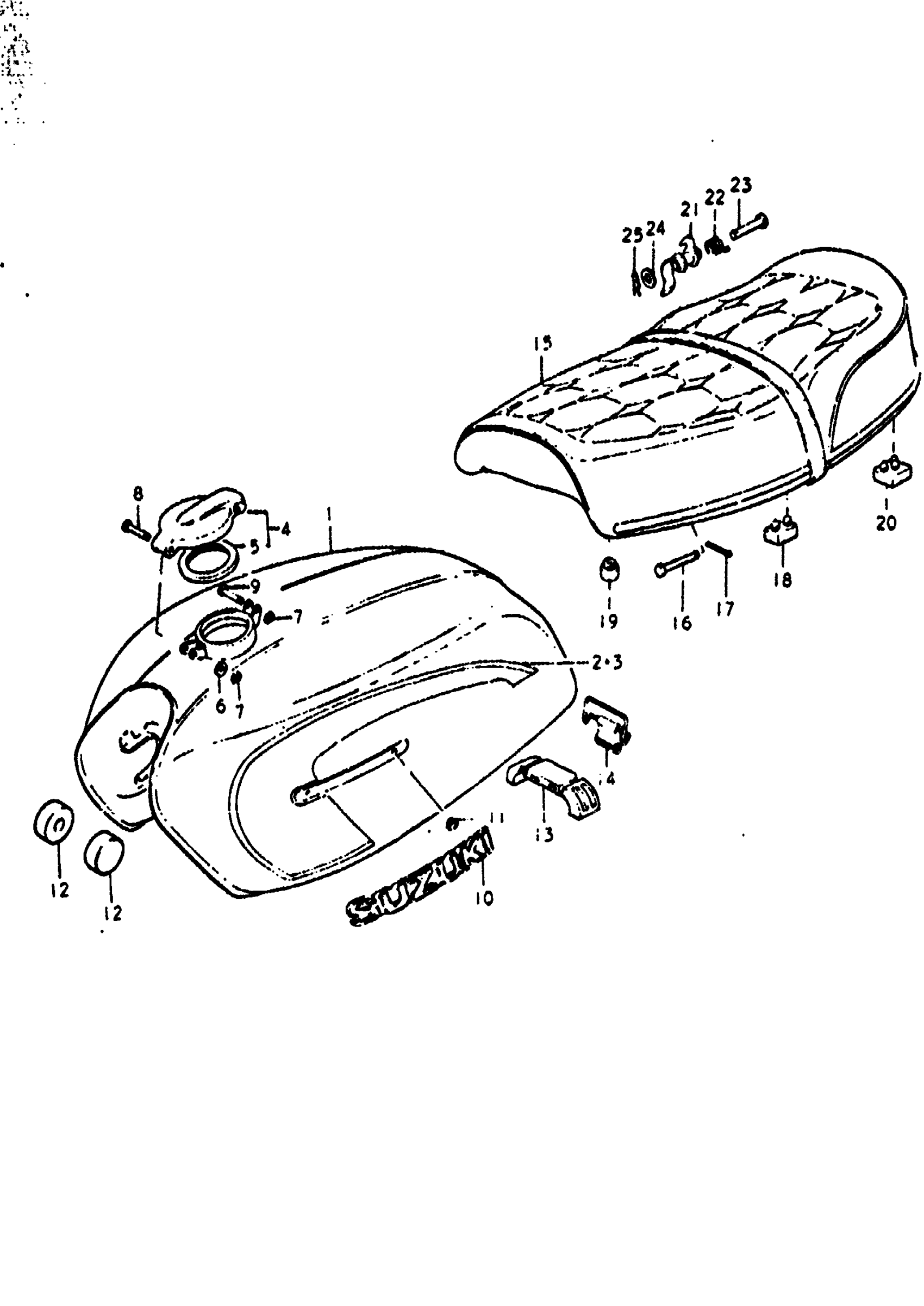

1972 Suzuki GT550 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 44110-34000-516.

44101-33861-737

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 44110-34000-571.

44101-33861-737

1
Out of stock

2

NO DESCRIPTION AVAILABLE | TO 68100-34810-064 This part replaces 68115-34000-064.

68100-34810-064

2
Out of stock

3

NO DESCRIPTION AVAILABLE | TO 68100-34810-064 This part replaces 68116-34000-064.

68100-34810-064

4
Out of stock

4

CAP ASSY,FUEL T | Includes Item(s) 5 - 9 This part replaces 44200-33011.

44200-33012

1
Out of stock

5

GASKET This part replaces 44248-33011.

44248-33012

1
Out of stock

6

WASHER

44238-33010

1
Out of stock

7

E RING

09383-02003

2
Out of stock

8

PIN

44239-33010

1
Out of stock

9

PIN

44233-33010

1
Out of stock

10

EMBLEM

68111-33000

2
Out of stock

11

NUT

09148-04005

4
Out of stock

12

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

13

CUSHION, FUEL TANK REAR

44541-33000

1
Out of stock

14

BAND

09462-00049

1
Out of stock

15

SEAT ASSY This part replaces 45100-33000-403.

45100-33X00-865

1
Out of stock

16

PIN

09200-06018

2
Out of stock

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

18

CUSHION

09321-08006

2
Out of stock

19

CUSHION

09321-10002

2
Out of stock

20

CUSHION

09321-09003

—
Out of stock

21

CLAMP, SEAT | FROM 45210-33001

45210-33002

1
Out of stock

22

SPRING

09448-15001

1
Out of stock

23

PIN

09200-06018

1
Out of stock

24

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

25

CLIP

09385-05001

—
Out of stock
