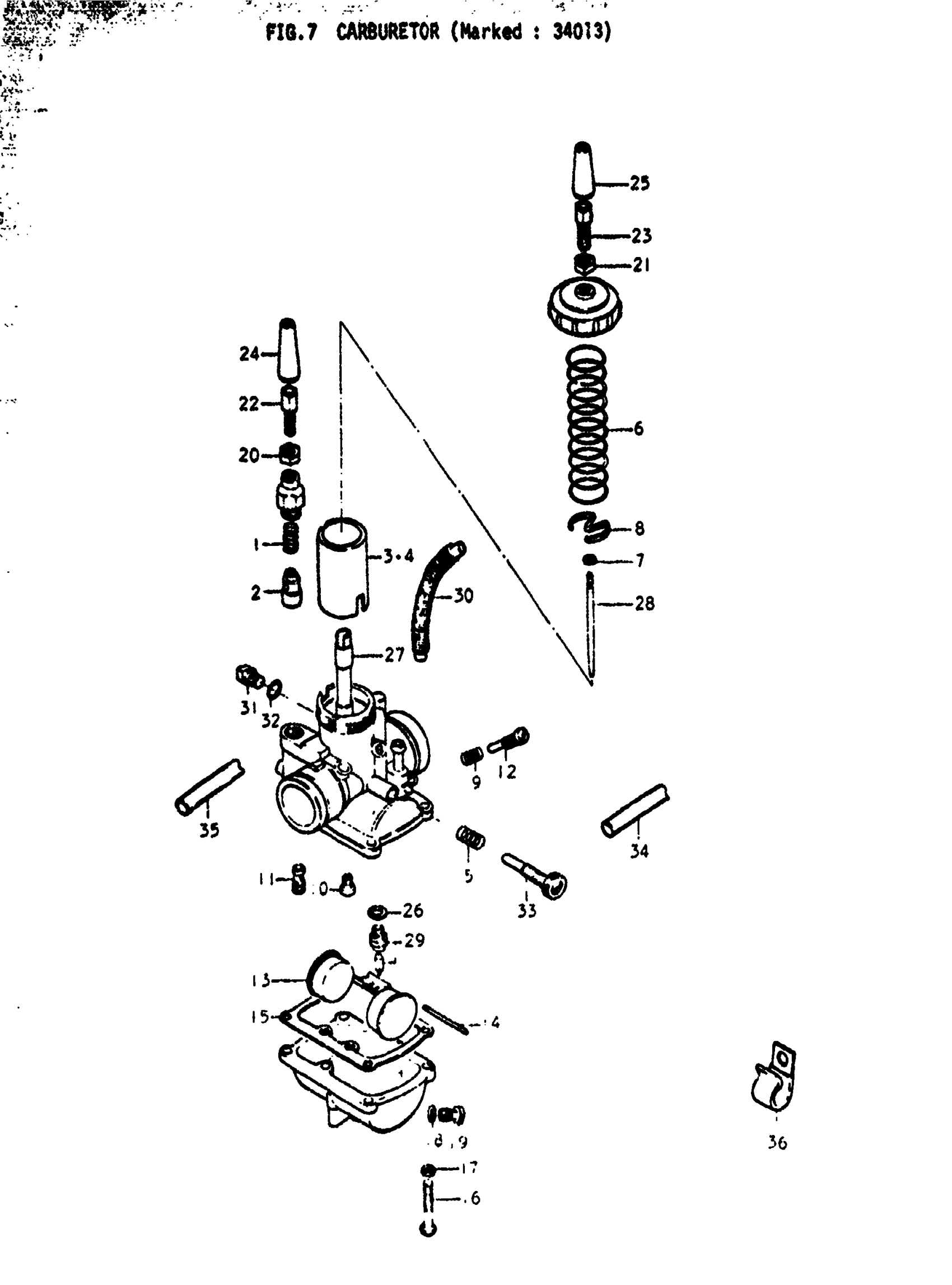

Suzuki GT550 (1972) CARBURETOR (MARKED : 34013) Diagram

#

Description
Price

CARBURETOR ASSY | TO 13201-34015 This part replaces 13201-34013.

13201-34015

Unavailable

CARBURETOR ASSY | TO 13202-34015 This part replaces 13202-34013.

13202-34015

Unavailable

CARBURETOR ASSY | TO 13203-34015; Includes Item(s) 1 - 33 This part replaces 13203-34013.

13203-34015

Unavailable

1

SPRING, STARTER VALVE

13417-18630

$6.77

2

VALVE, STARTER

13411-01010

$20.82

3

VALVE, THROTTLE LH

13561-34011

Unavailable

4

VALVE, THROTTLE MIDDLE & RH

13551-34011

Unavailable

5

SPRING, STOP SCREW This part replaces 13268-31010.

13268-03110

$6.15

6

SPRING, THROTTLE RETURN

13573-34010

Unavailable

7

CLIP, NEEDLE

13394-10010

$6.15

8

SEAT, THROTTLE VALVE SPRING | FROM 13581-28700

13581-28010

$8.97

9

SPRING, PILOT AIR SCREW

13268-01010

$4.29

10

JET, MAIN (92.5) | #92.5 This part replaces 09491-92001.

09491-92004

$12.38

10

JET, MAIN (95) | #95 This part replaces 09491-95003.

09491-95005

$12.55

11

JET, PILOT (27.5) | #27.5 This part replaces 09492-27001.

09492-27003

$12.70

12

SCREW, PILOT AIR ADJUSTING This part replaces 13269-31010.

13269-15010

Unavailable

13

FLOAT

13252-11010

$28.07

14

.PIN, FLOAT

13254-01010

$3.56

15

GASKET, FLOAT CHAMBER

13251-11010

$5.38

16

SCREW This part replaces 02111-04168.

02112-0416A

$1.28

17

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.92

18

GASKET, DRAIN PLUG

13249-05010

$1.93

19

PLUG, CRAIN

13247-05010

$5.03

20

NUT, CABLE ADJUSTER

13661-31010

Unavailable

21

NUT, CABLE ADJUSTER

13661-16600

$4.57

22

ADJUSTER This part replaces 13577-03010.

13577-48110

$9.37

23

ADJUSTER, CABLE

13577-31010

Unavailable

24

BOOT, CABLE ADJUSTER

13681-16600

$3.71

25

BOOT, CABLE ADJUSTER

13681-31010

Unavailable

26

GASKET, VALVE SEAT

13392-58600

$1.94

27

JET, NEEDLE | 0-5

09494-00105

Unavailable

28

NEEDLE, JET | 5DH21-3

13383-34011

Unavailable

29

VALVE, NEEDLE

13370-18111

$51.48

30

HOSE, MIDDLE CARBURETOR BOOST | L:150

44390-15050

Unavailable

31

PLUG, ADJUSTING HOLE | FROM 13664-31010

13664-18654

$10.15

32

GASKET This part replaces 13392-04010.

13663-31010

$2.80

33

ADJUSTER, THROTTLE VALVE

13267-34010

Unavailable

34

HOSE, OVER FLOW | 3x5x250 TO 09344-03019

09344-03010

Unavailable

35

HOSE, OVER FLOW | 3x5x190 TO 09344-03019

09344-03017

Unavailable

36

CLAMP | FROM 09403-00087 This part replaces 09404-08404.

09404-08420

$3.00
