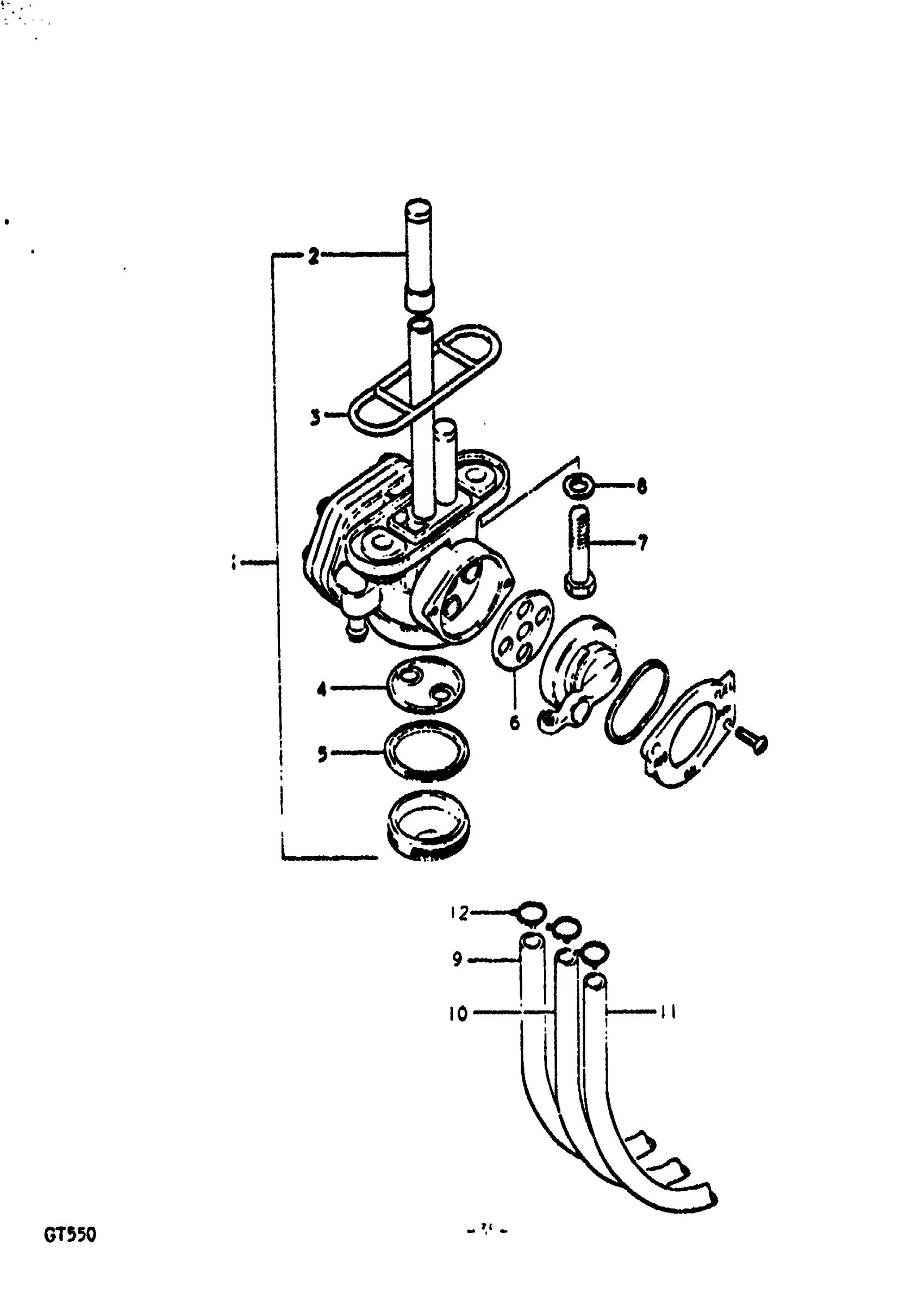

Suzuki GT550 (1972) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY, FUEL | FROM 44300-31050; Includes Item(s) 2 - 6

44300-31051

Unavailable

2

FILTER

44322-31050

$6.46

3

O RING This part replaces 44348-31050.

44348-31051

Unavailable

4

FILTER

44344-31050

Unavailable

5

GASKET

44346-31050

$6.49

6

GASKET, LEVER

44376-31050

Unavailable

7

BOLT This part replaces 01112-06208.

01500-06207

$2.28

8

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

9

HOSE | 5x8.2x300 TO 09343-05021 This part replaces 09343-05076.

09352-50005-00B

$13.93

10

.HOSE | 5x8.2x180 TO 09343-05135 This part replaces 09343-05018.

09352-50006-600

$7.48

11

HOSE,5X10X600 | 6x8.2x150 TO 09343-05129 This part replaces 09343-05036.

44421-13ER0

$10.06

12

CLIP | TO 09401-08401

09386-08001

Unavailable
