1972 Suzuki GT550 Footrest BAR Diagram

← All diagrams

Find the part on the Footrest BAR diagram for your 1972 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

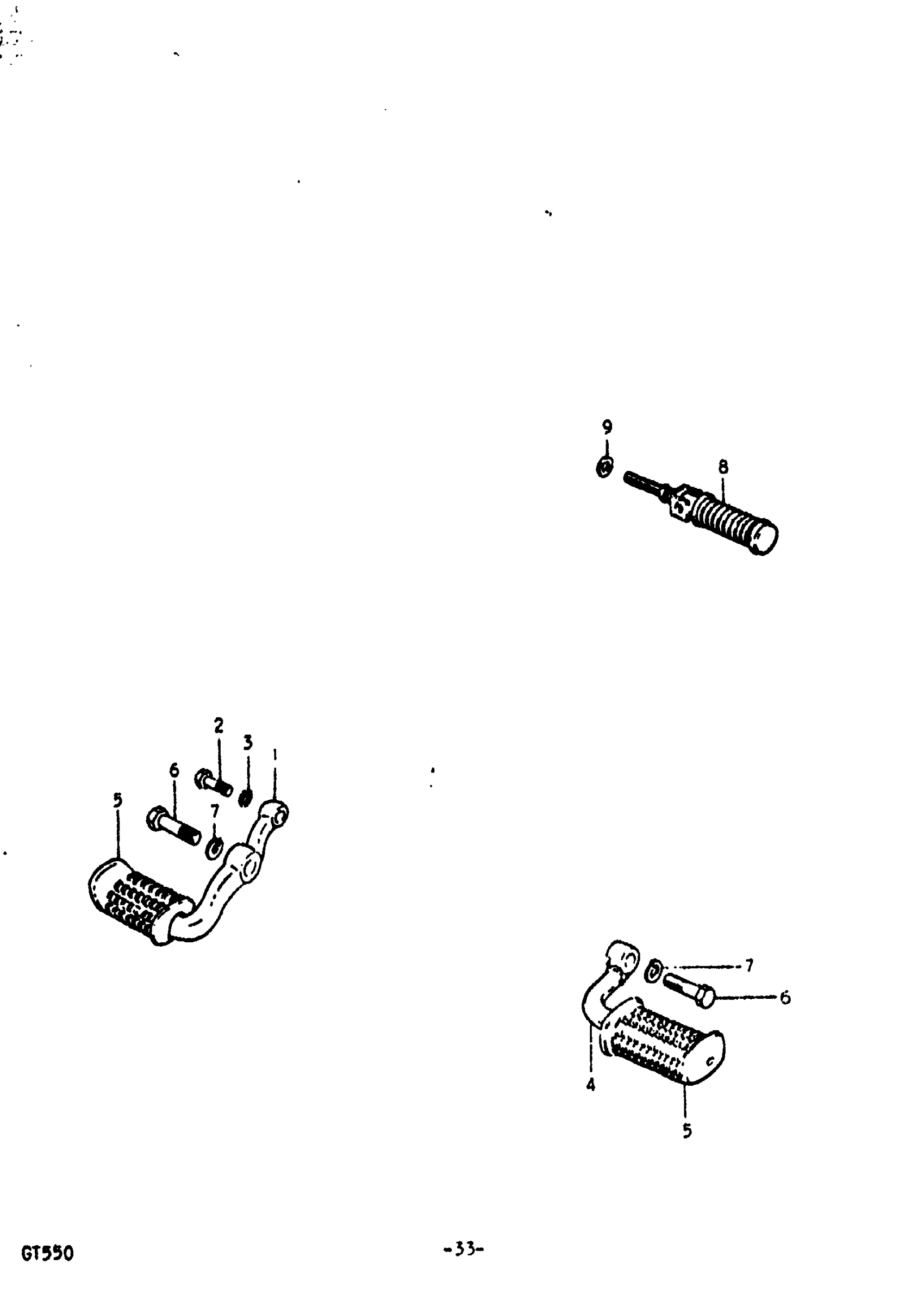

1972 Suzuki GT550 Footrest BAR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTRESTBAR, FRONT RH

43511-34000

—
Out of stock

2

BOLT This part replaces 01221-08357.

01204-08357

1
Out of stock

3

1

$2.28

In stock

4

FOOTRESTBAR, FRONT LH

43521-33000

1
Out of stock

5

RUBBER

43551-31000

2
Out of stock

6

BOLT

09104-12101

2
Out of stock

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

8

FOOTREST ASSY, PILLION

43600-31000

2
Out of stock

9

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock
