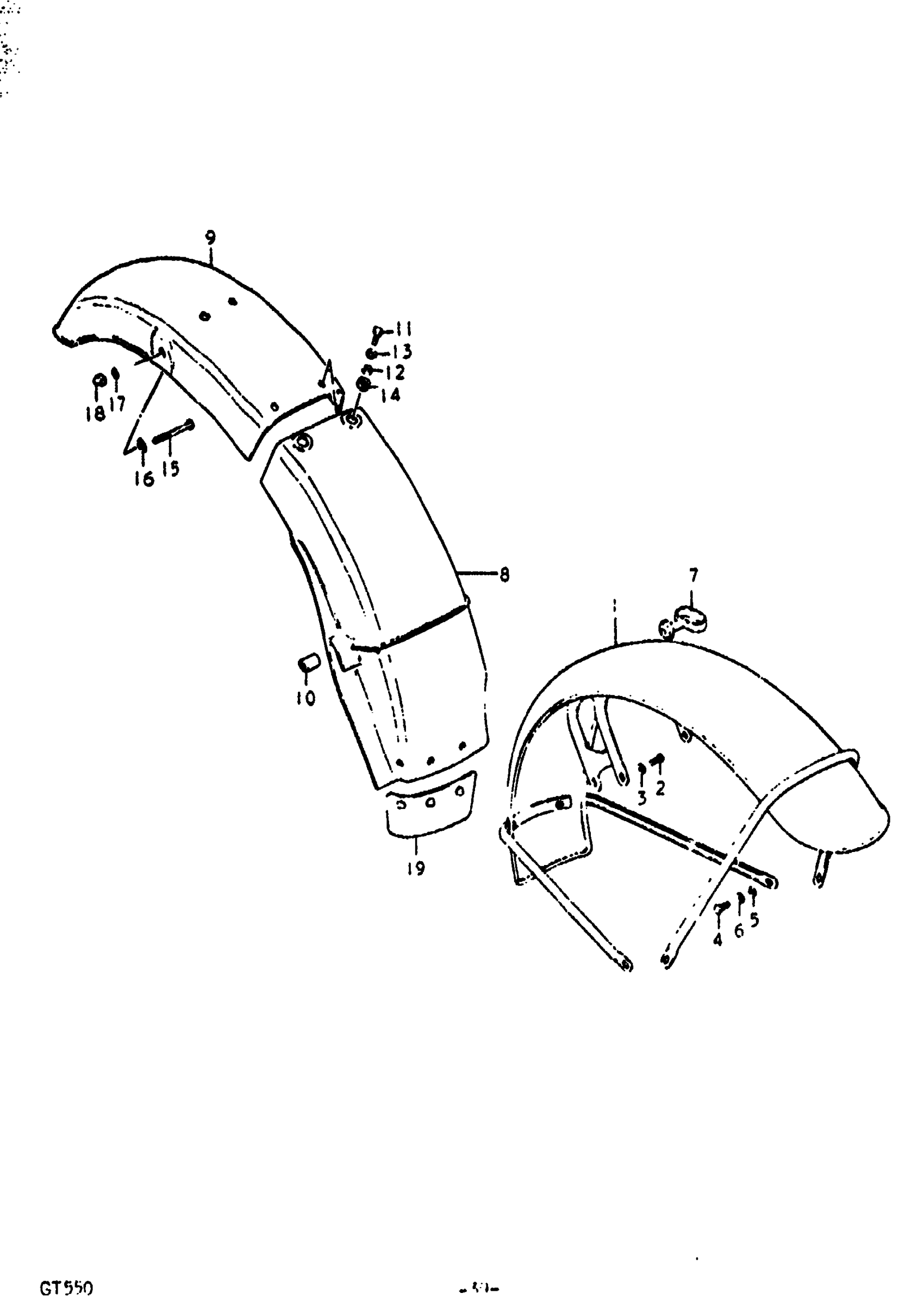

Suzuki GT550 (1972) FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FROM 53100-31001 This part replaces 53100-34002.

53100-33810

Unavailable

2

BOLT | 8x22 This part replaces 09100-08072.

01500-0820A

$2.28

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

GUIDE, METER CABLE | FROM 58621-21021 This part replaces 58621-21202.

58621-21204

$6.68

8

BODY RR FENDER, | FROM 63110-31000 This part replaces 63112-31001.

63112-31002

Unavailable

9

BODY, REAR FENDER REAR

63113-31000

Unavailable

10

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

11

BOLT This part replaces 01112-06208.

01500-06207

$2.28

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

SPACER

09180-06041

Unavailable

15

BOLT This part replaces 01122-08508.

01500-08507

$3.05

16

WASHER This part replaces 08322-21088.

08322-01087

$2.13

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

NUT This part replaces 08313-11087.

08313-10087

$2.28

19

GUARD, REAR FENDER MUD

63411-15101

Unavailable
