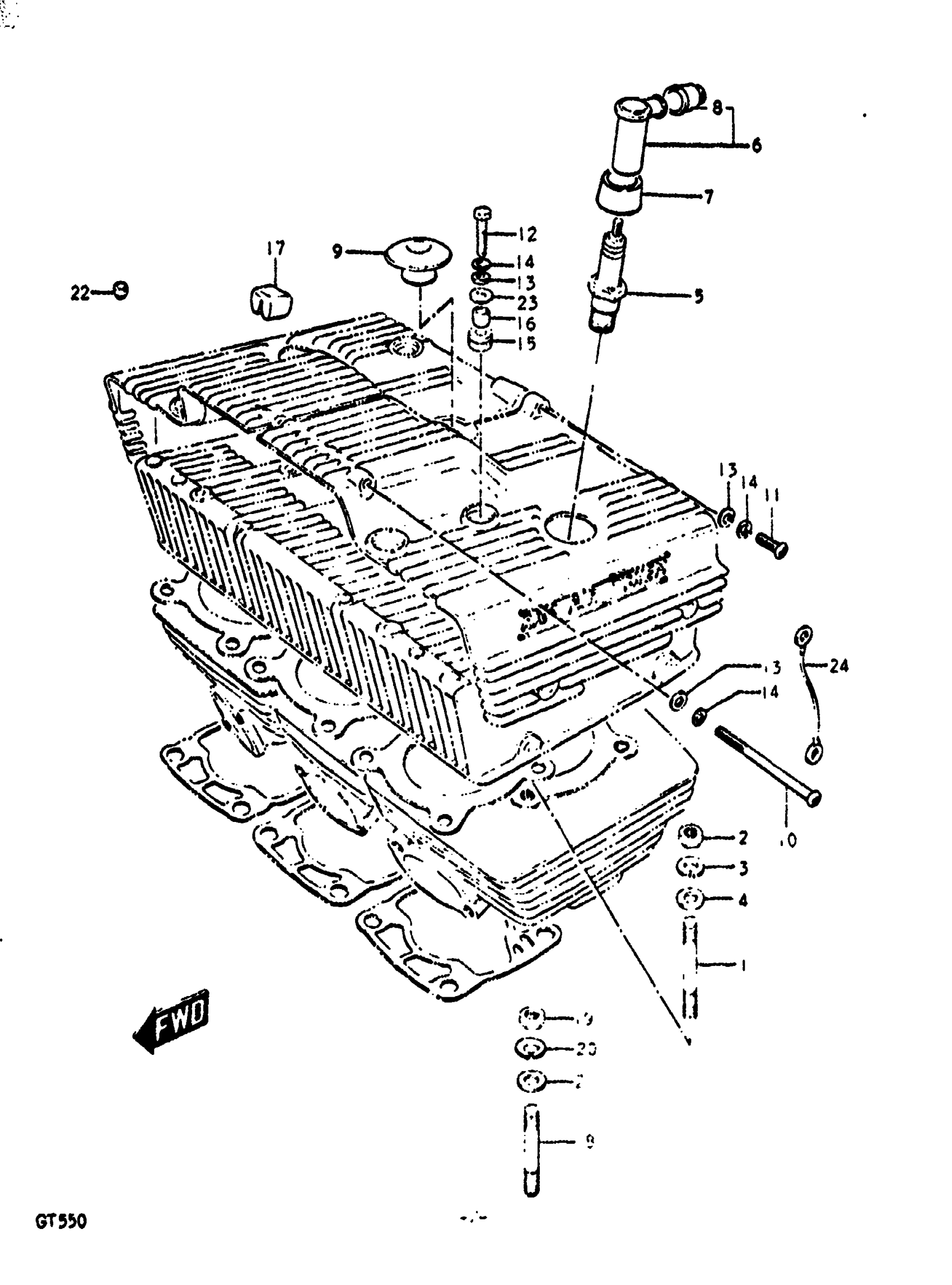

Suzuki GT550 (1972) CYLINDER FITTINGS Diagram

#

Description
Price

1

STUD BOLT This part replaces 01421-10458.

01421-10457

$3.91

2

NUT This part replaces 08312-12108.

08310-00107

$2.19

3

LOCK WASHER This part replaces 08321-21103.

08321-0110A

$1.84

4

WASHER This part replaces 08322-11108.

08322-01107

$2.15

5

SPARK PLUG (NGK,BR7ES) | B-7ES, NGK FROM 09482-00055 This part replaces 09482-00089.

09482-00117

$3.03

5

SPARK PLUG ASSY | W22ES, DENSO FROM 09482-00046

09482-00090

Unavailable

6

CAP SET,SPARK P | FROM 33503-10801; Includes Item(s) 7 - 8 This part replaces 33500-69810.

33500-69811

$22.48

7

SEAL, SPARK PLUG

33541-69010

$4.37

8

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

9

BOOT, PLUG CAP

33543-33001

Unavailable

10

SCREW This part replaces 02112-06758.

02112-06757

$3.08

11

SCREW

02112-06257

$1.78

12

BOLT 6X25 This part replaces 01211-06257.

01204-06257

$2.07

13

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

CUSHION

09320-08015

$3.58

16

SPACER (6.1X8X12) | 6.1x8x12 This part replaces 09180-06035.

09180-06249

$2.10

17

PAD, CYLINDER HEAD RUBBER

11153-33000

Unavailable

18

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$3.16

19

NUT This part replaces 08312-12108.

08310-00107

$2.19

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

WASHER This part replaces 08322-11108.

08322-01107

$2.15

22

PAD, CYLINDER RUBBER

11252-34000

Unavailable

23

WASHER This part replaces 09160-06031.

09160-06125

$1.91

24

LEAD WIRE This part replaces 36660-34000.

48528-78200

$5.82
