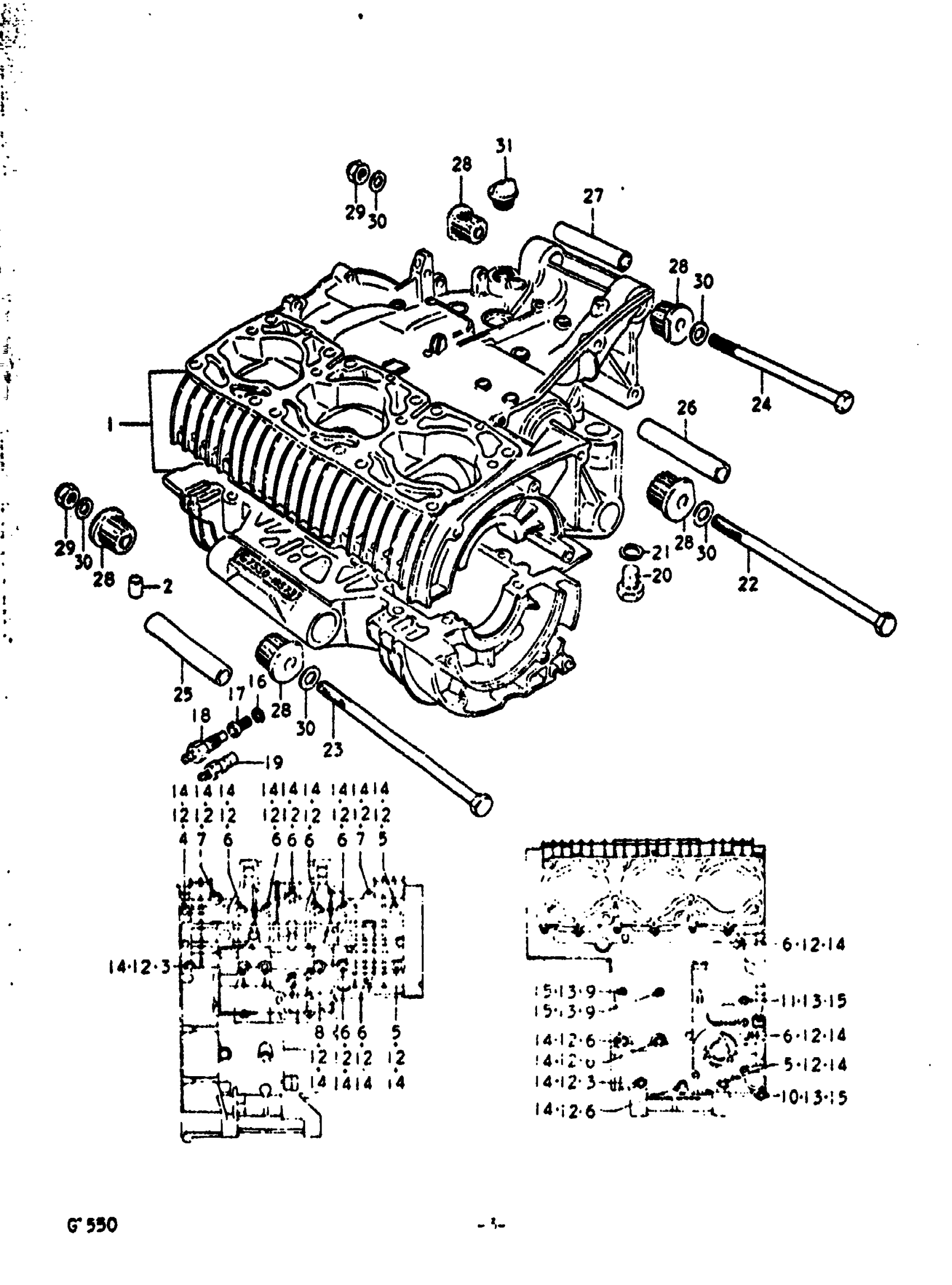

Suzuki GT550 (1972) CRANKCASE Diagram

CRANKCASE SET | FROM 11304-34801; Includes Item(s) 2 - 18 This part replaces 11300-34815.

11300-34861

Unavailable

PIN | 10.4x13x18 This part replaces 09206-13001.

04211-13189

$2.19

BOLT | 8x105 This part replaces 09100-08024.

09100-08228

$7.02

BOLT This part replaces 01122-08908.

01500-0890B

$3.88

BOLT This part replaces 01122-08758.

01500-0875B

$4.10

BOLT This part replaces 01122-08658.

01500-0865B

$3.49

BOLT This part replaces 01122-08458.

01500-08453

$2.50

BOLT | 8x35 This part replaces 09106-08004.

07130-0835B

$4.60

NO DESCRIPTION AVAILABLE This part replaces 01112-06758.

01500-06753

Unavailable

BOLT This part replaces 01112-06508.

01500-06507

$3.03

BOLT This part replaces 01112-06808.

01500-0685B

$3.85

WASHER This part replaces 08322-11088.

08322-01087

$2.13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

GASKET (8.2X14X1) | 8.5x14x1 This part replaces 09168-08008.

09168-08016

$1.65

STRAINER, SRIS

16521-31010

Unavailable

CHECK VALVE, SRIS

16710-31012

Unavailable

CHECK VALVE, SRIS

16710-31011

Unavailable

PLUG, DRAIN | FROM 09247-14010 This part replaces 09247-14007.

09247-14025

$2.79

GASKET

09168-14004

$1.83

BOLT | 10x245

09100-10081

Unavailable

BOLT | 10x175

09100-10080

Unavailable

BOLT 0.1X185 | 10x185 This part replaces 09100-10073.

09100-10267

$12.22

SPACER | 12.2x16x92

09180-10035

Unavailable

SPACER | 10.2x16x164

09180-10032

Unavailable

SPACER | 10.2x16x107

09180-10030

Unavailable

BUSH This part replaces 09319-10015.

09319-10084

Unavailable

NUT | FROM 09159-10001

09159-10011

$3.23

WASHER This part replaces 08322-11108.

08322-01107

$2.15

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02
