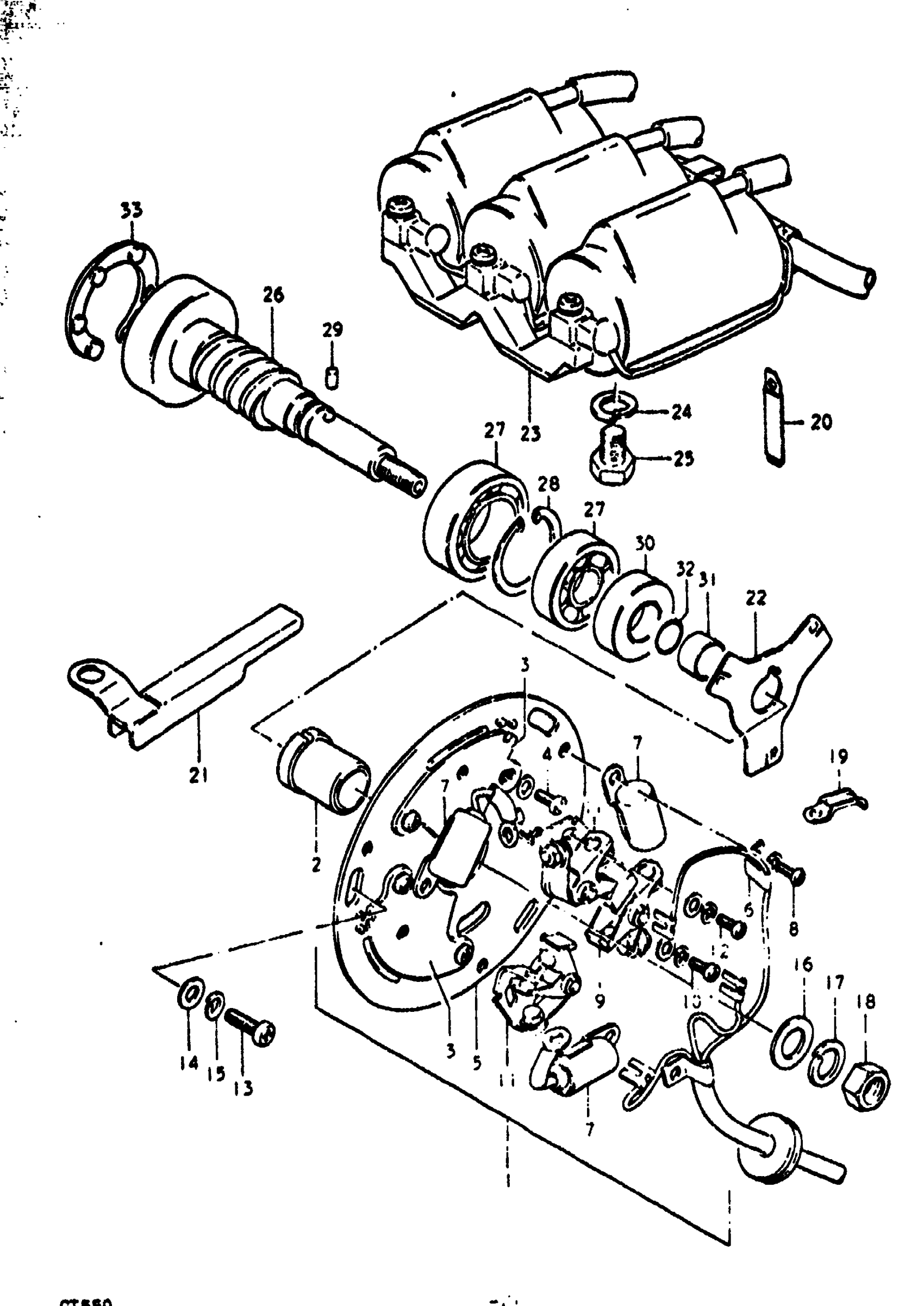

Suzuki GT550 (1972) CONTACT BREAKER (MADE BY NIPPON DENSO) Diagram

#

Description
Price

1

BREAKER ASSY, CONTACT | Includes Item(s) 2 - 12

33100-34010

Unavailable

2

CAM

33310-34010

Unavailable

3

PLATE, CONTACT POINT SHIFTING

31443-34010

Unavailable

4

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

5

STATOR ASSY, BREAKER

33101-34010

Unavailable

6

CLAMP, LEAD WIRE

32371-31010

Unavailable

7

CONDENSER This part replaces 32341-31010.

33261-33010

Unavailable

8

SCREW 4X40 This part replaces 02111-04048.

02112-04047

$1.49

9

POINT ASSY

33160-31010

Unavailable

10

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

11

POINT ASSY

33170-31010

Unavailable

12

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

13

SCREW

09125-05024

$1.72

14

WASHER This part replaces 08322-11058.

08322-01057

$2.13

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

16

WASHER This part replaces 08322-11108.

08322-01107

$2.15

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

NUT This part replaces 08312-12108.

08310-00107

$2.19

19

CLAMP This part replaces 09403-07301.

09403-07309

Unavailable

20

CLAMP

09403-00085

Unavailable

21

PLATE, LEAD WIRE

33280-33000

Unavailable

22

PLATE, IGNITION TIMING

33370-34000

Unavailable

23

COIL ASSY, IGNITION

33410-31010

Unavailable

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

BOLT This part replaces 01122-08128.

01500-08127

$2.62

26

SHAFT, BREAKER CAM | FROM 12710-34000

12554-34000

Unavailable

27

BEARING (15X42X13) This part replaces 08110-63020.

09262-15027

$23.39

28

CIRCLIP This part replaces 08331-21429.

08331-41429

$2.41

29

PIN This part replaces 06211-03052.

04221-03059

$1.72

30

OIL SEAL

09283-20024

$5.11

31

SPACER

09180-14006

Unavailable

32

O RING

09280-12003

Unavailable

33

RUBBER, BREAKER CAM SHAFT | FROM 12719-34010

12582-34010

Unavailable
