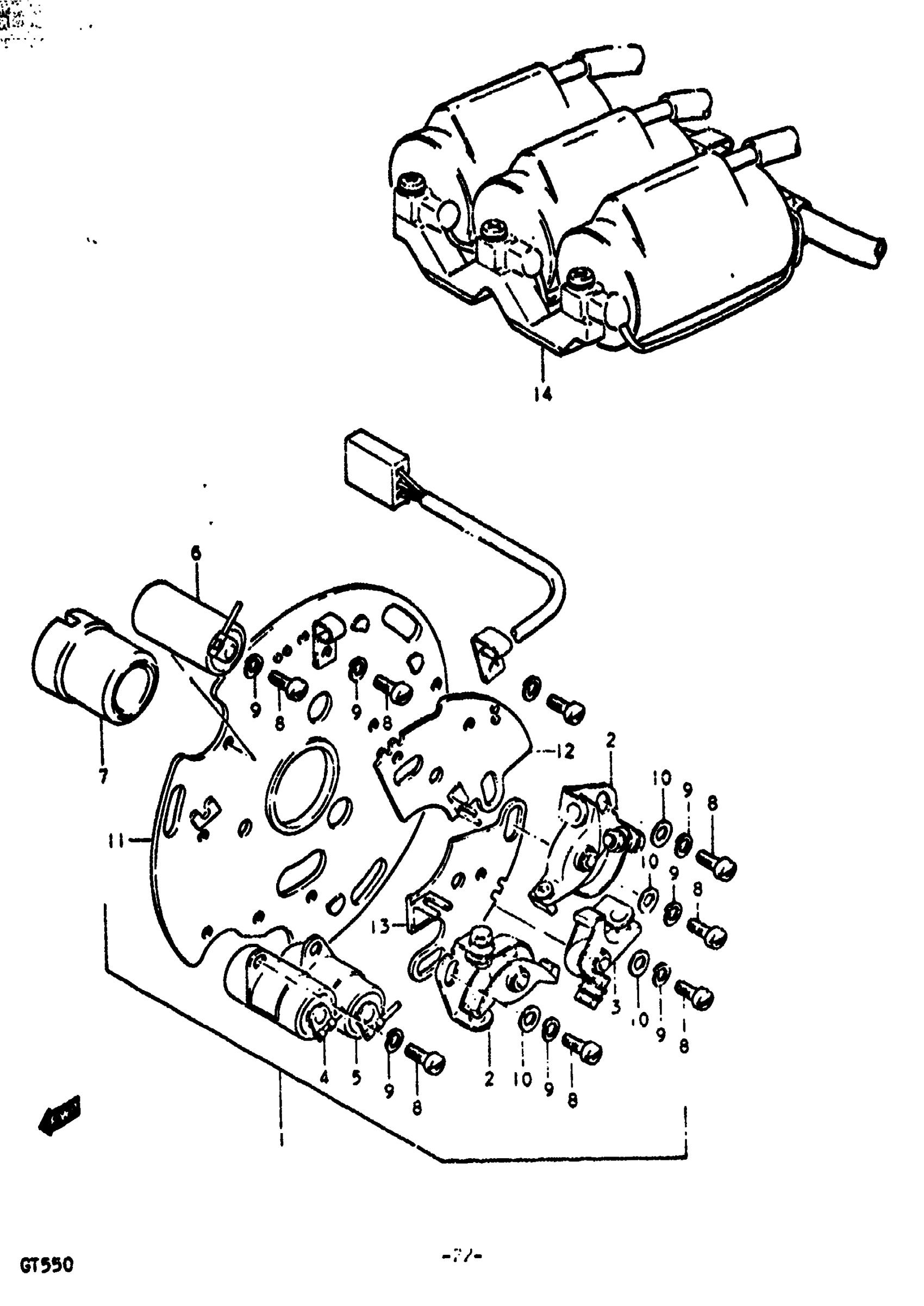

Suzuki GT550 (1972) CONTACT BREAKER (MADE BY KOKUSAN) Diagram

#

Description

Price

1

BREAKER, CONTACT | Includes Item(s) 2 - 13

33100-34020

Unavailable

2

POINT ASSY, RH & LH

33160-34020

Unavailable

3

POINT ASSY, CENTER

33170-34020

Unavailable

4

CONDENSER, LH

32341-34020

Unavailable

5

CONDENSER, CENTER

32342-34020

Unavailable

6

CONDENSER, RH

32343-34020

Unavailable

7

CAM, CONTACT BREAKER

33310-34020

Unavailable

8

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

9

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

10

WASHER This part replaces 08322-21048.

08322-01047

$1.86

11

POINT BASE

33101-34020

Unavailable

12

PLATE, CONTACT POINT SHIFTING

31443-34020

Unavailable

13

PLATE, CONTACT POINT SHIFTING

31444-34020

Unavailable

14

COIL ASSY, IGNITION

33410-33020

Unavailable
