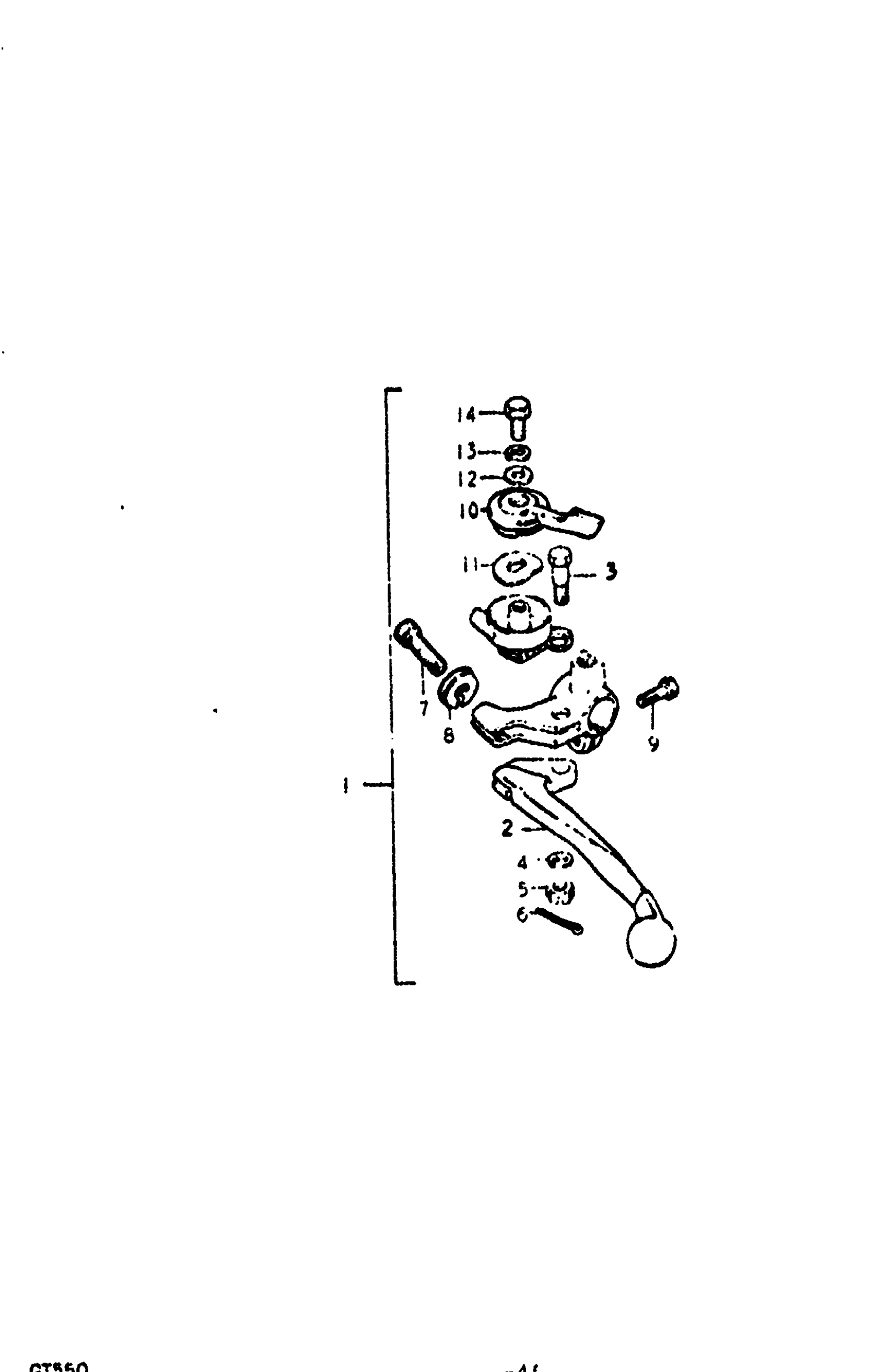

Suzuki GT550 (1972) CLUTCH LEVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 14 This part replaces 57500-31010.

57500-31601

Unavailable

2

LEVER, CLUTCH This part replaces 57620-31010.

57620-45010

Unavailable

3

BOLT, LEVER PLVOT

57431-31010

$9.32

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NUT, PLVOT

57433-11010

$5.64

6

PIN This part replaces 04111-16158.

04111-1620A

$1.49

7

ADJUSTER, CABLE

57441-11010

$5.62

8

NUT, CABLE ADJUSTER

57442-11010

$2.79

9

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

10

LEVER, STARTER

58721-03010

Unavailable

11

WASHER, ADJUSTER

58722-03010

$3.71

12

.WASHER (6.5X16X1) This part replaces 58723-03010.

09160-06129

$2.30

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

BOLT This part replaces 01112-06128.

01500-06127

$1.97
