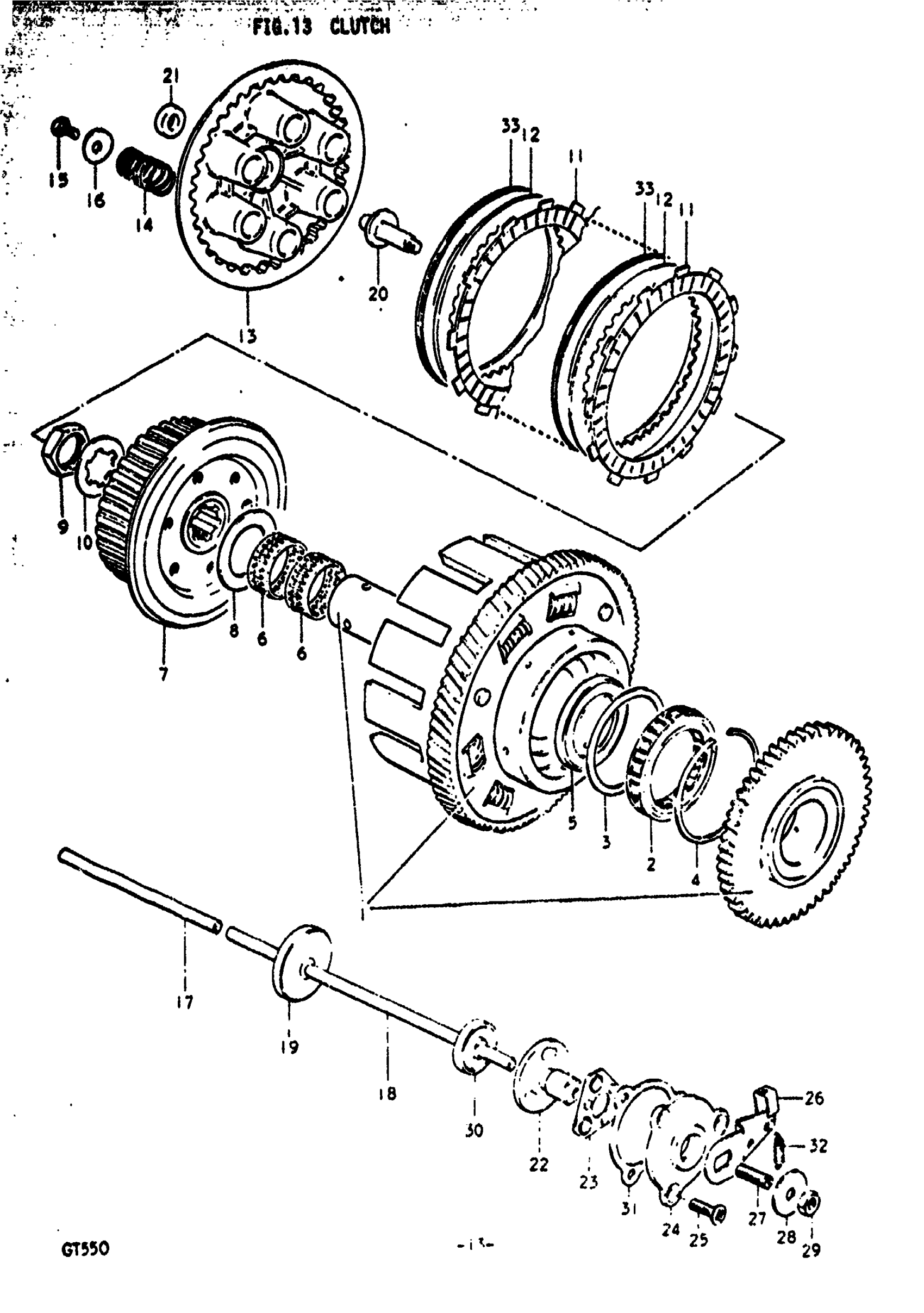

Suzuki GT550 (1972) CLUTCH Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 7 This part replaces 21200-34830.

21200-34831

Unavailable

1

STARTER CLUTCH GEAR ASSY This part replaces 21200-34820.

21200-34821

Unavailable

2

ONE WAY CLUTCH ASSY

12650-34020

Unavailable

3

WASHER

09160-64001

Unavailable

4

CIRCLIP

09381-71001

Unavailable

5

THRUST BEARING

09263-38003

Unavailable

6

NEEDLE BEARING

09263-38005

Unavailable

7

HUB, CLUTCH STEEVE

21411-34001

Unavailable

8

THRUST WASHER

08211-22503

Unavailable

9

NUT

09140-22003

Unavailable

10

WASHER | 18.5x40x0.8

09167-22005

$2.11

11

PLATE, DRIVE This part replaces 21441-34000.

21441-37001

Unavailable

12

PLATE, CLUTCH DRIVEN

21451-34000

Unavailable

13

DISK, CLUTCH PRESSURE

21462-34000

Unavailable

14

SPRING This part replaces 09440-19003.

09440-19027

$5.10

15

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

16

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

17

ROD, CLUTCH PUSH (1) | 8x138.5

23111-15001

Unavailable

18

ROD, CLUTCH PUSH (2) | 8x189.5

23111-34000

Unavailable

19

SEAL,OIL(8X47X7 | 8x47x7 This part replaces 09285-08004.

09285-08008

Unavailable

20

PIECE, CLUTCH PUSH

23121-34000

Unavailable

21

OIL SEAL | 10x17x5

09284-10002

$2.90

22

BEARING, RELEASE OUTER

23211-34000

Unavailable

23

BALL, RELEASE This part replaces 23250-31001.

23250-31003

$28.18

24

GUIDE, INNER BALL

23231-34001

Unavailable

25

SCREW This part replaces 02122-06258.

02122-0625A

$1.49

26

ARM, CLUTCH RELEASE

23220-34001

Unavailable

27

SCREW

09134-08006

Unavailable

28

WASHER | 8.5x26x1.2

09160-08032

$2.30

29

NUT This part replaces 08311-31088.

08310-00087

$2.13

30

DUST SEAL

09285-08001

Unavailable

31

GASKET,BALL GUI This part replaces 23291-34000.

23291-34010

Unavailable

32

SPRING

09443-08001

$2.92

33

V RING This part replaces 09280-00004.

21481-40A00

Unavailable
